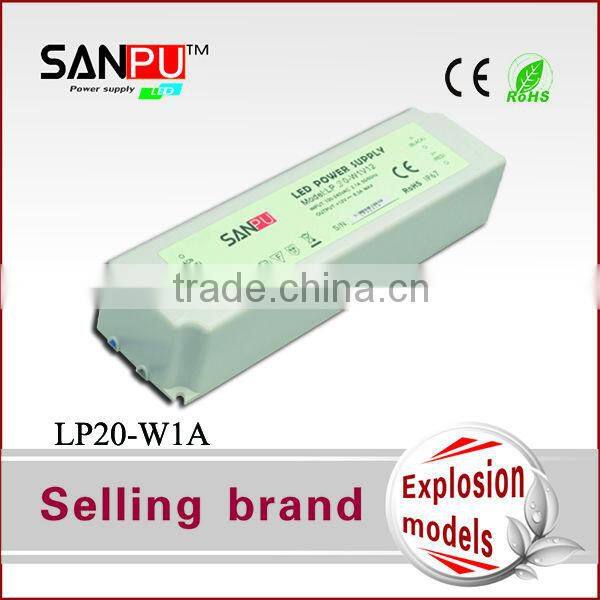

Hot Selling SANPU Single Output IP67 Waterproof 20w Power Supply 0-12v

Name: Hot Selling SANPU Single Output IP67 Waterproof 20w Power Supply 0-12v
Brand: sanpu
SKU: 111382827
Availability: InStock

US$ 5 - 16.5 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

sanpu

Model Number:

LP20-W1V12

Shenzhen Sanpu Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name sanpu

Model Number LP20-W1V12

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 85-264V

Output Voltage 12V

Output Frequency 47-63HZ

Output Current 0-1.7A

Specifications

power supply 0-12v
1.Low cost and high reliability
2.CE,ROHS certification,2 years warranty
3.100% full-load burning test

power supply 0-12v

Specfication:

1.Led driver with competitive price and high quality

2.For 12V/15V/24V LED Lighting Sources

3.IP67 CE & RoHs Approval

Features:

1.Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature

2.IP67 design for indoor or outdoor installations

3. Cooling by free air convection

4.100% full load burn-in test

5.High reliability

6. Suitable for LED lighting and moving sign applications

7.2 year warranty

Model		LP20-W1V	LP20-W1V	LP20-W1V
output	DC voltage	12V	15V	24V
	Voltage tolerance	±1%	±1%	±1%
	Current range	0-1.7A	0-1.4A	0~0.8
	Rated power	20W	20W	20W
	DC voltage ADJ.range	± 10%	±10%	±10%
input	Voltage range	85~264VAC (selected by switch)
	frequency	47~63HZ
	AC current	0.56A/110V,0.28A/230V
	efficiency	85%	86%	88%
	Inrush current	Cold start current 30/230V
	Leakage current	< 0.5mA/240VAC
protection	overload	Rated output power105%~135% start over load protection
		protection type:hiccup mode, auto-recovery
	over-voltage	115~135%cut off the output ,auto-recovery
	-----	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,UL60950
	Weight/packing/size	0.15kg/100pcs/15KG/ 1453022mm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation
