SANPU 2013 hot selling CE ROHS FX 100W 27V co2 laser power supply led power led driver led strip transformer

Specifications

co2 laser power supply led power led driver led strip transformer
Internatinal AC input
CE ROHS OEM ODM
Built-in EMI fiter

  SANPU 2013 hot selling CE ROHS FX 100W 27V co2 laser power supply led power led driver led strip transformer





Feathers:

 1. Universal AC input / Full range;

 2. 100% full load burn-in test;

 3. Built-in EMI fiter with tiny ripple;

 4. High efficiency, high qulity, long life and high reliability;

 5. Abnormality protection function : short circuit ,over load ,over voltage,over temp;

 6. Convenient wiring;

 7. The product consists of indoor type and outdoor type;

 8. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.

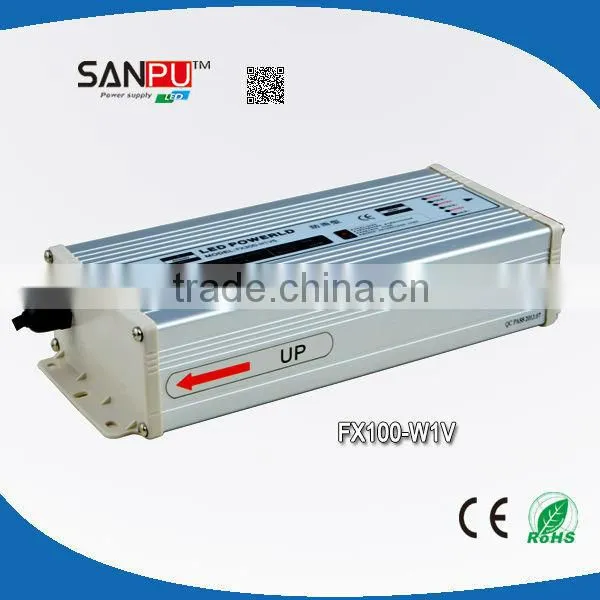

FX Waterproof FX100-W1V
MODEL		5V 100W	12V 100W	15V 100W	24V 100W	27V 100W	48V 100W
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	27V	48V
	RATED CURRENT	20A	8.5A	6.7A	4.5A	3.7A	2.0A
	CURRENT RANGE	0~20A	0~8.5A	0~6.7A	0~4.5A	0~3.7A	0~2.0A
	RATED POWER	100W	100W	100W	100W	100W	100W
	RIPPLE& NOISE (MAX.)NOTE2	100mV	120mV	120mV	120mV	120mV	200mV
	VOLTAGE TOLERANCENOTE3	±2%	±1%	±1%	±1%	±1%	±1%
	SETUP , RISE TIME	200ms/220VAC 50ms/220VAC
	HOLD UP TIME(Typ.)	20ms/220VAC
INPUT	VOLTAGE RANGE	85~132VAC/170~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	PF>0.6/220VAC
	EFFICIENCY(Typ.)	81%	84%	85%	85%	86%	86%
	AC CURRENT(Typ.)	2.4A/115VAC 1.2A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 20A/115VAC 40A/230VAC
PROTECTION	Short circuit	Protection type : recovers automatically after fault condition is removed
	Over load	105~135% hiccup mode , auto-recovery
ENVIRONMENT	WORKING TEMP	-20°C~ +60°C
	WORKING HUMIDITY	20%~90%RH
	STORAGE TEMP , HUMIDITY	-40°C~+85°C,10%~90%RH
SAFETY &EMC	SAFETY STANDARDS	CE,ROHS
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC Test Standards	Conform to EN60950 GB4943 UL60950 Safety standards
		Conform to GB9254 EN55022 EMC standards
NOTE	1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr . 3.Tolerance : includes set up tolerance , line regulation and load regulation .

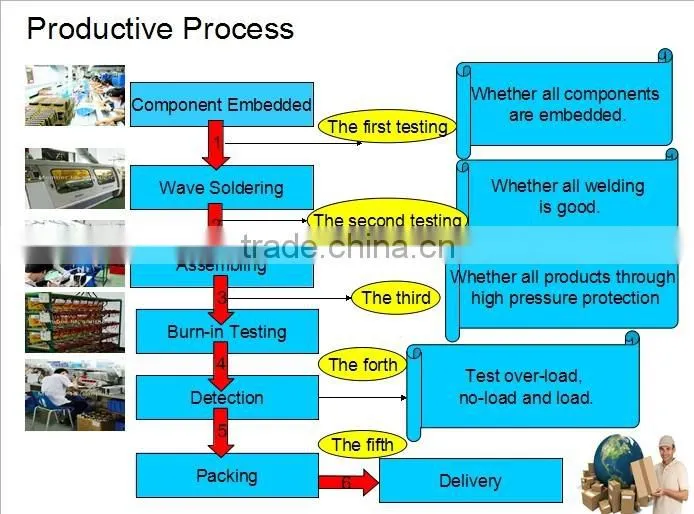

Introduction

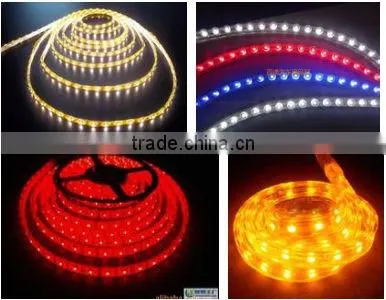

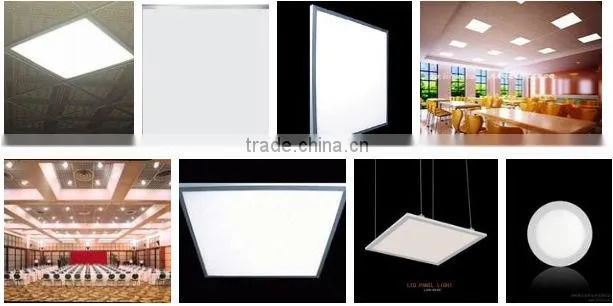

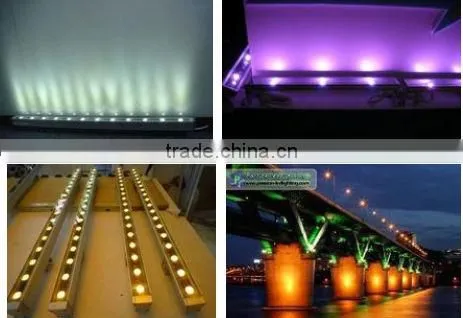

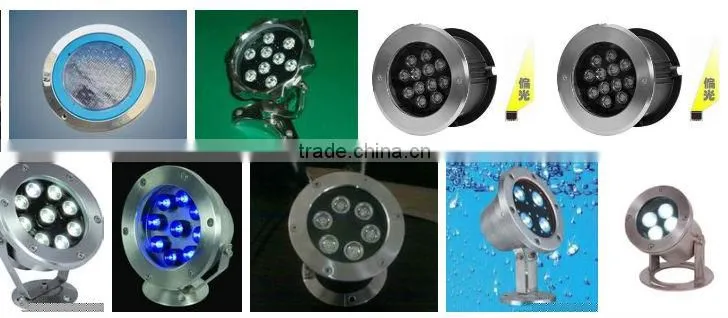

 Applications



Certificates







Logistics&Payment
