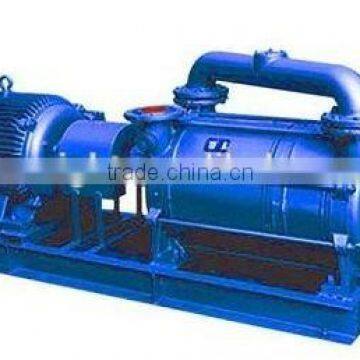

Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 2SK,2SK-P1 Two Stages Liquid Ring-jet Vaccum Pump System
US$ 500 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
AUS
Model Number:
2SK
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI ZHANGJIAGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZSL Jet Vaccum PumpUS$ 500 - 1,000MOQ: 1 Set -
JZJX Roots-rotary Vane Vaccum Pump SystemUS$ 500 - 1,000MOQ: 1 Set
-
Vacuum System for Polysilicon Ingot Furnace /piston-roots Vaccum SystemUS$ 500 - 1,000MOQ: 1 Set
-
Liquid Ring Roots Vaccum Pump SystemUS$ 500 - 1,000MOQ: 1 Set
-
Coke Bottle Hydraulic BalerUS$ 1000.00 - 1000.00MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
AUS
Model Number
2SK
Theory
Reciprocating Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, electric
Pressure
High Pressure
Application
Other
•Usage
It is used to pump air or other gas insolube in water without solid particle,corrosivity.It’s widely used for vacuum evaporation,distrillation,drying,smelting in the industries of light textile,food,metallugry,chemical.
•Characteristic
1 Fast pumping speed at high vaccum.
2 Compact structure,easily disassembly.
3 No oil pollution.
Specification:
Table 1 :2SK two stages liquid ring vaccum pump
| Type | Flow | Ultimate pressure | Power | Speed | water supply | suction/exhausting OD | ||
| max | when suction pressure is -0.093 Mpa,the flow will be not less than | Mpa | mmHg | kw | rpm | L/min | ||
| 2SK-0.4 | 0.4 | 0.25 | -0.096 | -725 | 2.2 | 2860 | 3~5 | 1'' |
| 2SK-0.8 | 0.8 | 0.50 | -0.096 | -725 | 3 | 2880 | 5~8 | 1'' |
| 2SK-1.5 | 1.5 | 0.90 | -0.097 | -730 | 4 | 1440 | 10~15 | 40mm |
| 2SK-3 | 3 | 2.00 | -0.098 | -735 | 7.5 | 1440 | 15~20 | 40mm |
| 2SK-6 | 6 | 4.00 | -0.098 | -735 | 15 | 1460 | 25~35 | 70mm |
| 2SK-8 | 8 | 6.20 | -0.098 | -735 | 18.5 | 1440 | 30~40 | 70mm |
| 2SK-12 | 12 | 8.00 | -0.098 | -735 | 22 | 970 | 40~50 | 100mm |
| 2SK-20 | 20 | 14.00 | -0.098 | -735 | 37 | 740 | 60~80 | 125mm |
| 2SK-30 | 30 | 20.00 | -0.098 | -735 | 55 | 740 | 70~90 | 125mm |
tTable 2 2SK-P1 two stages liquid ring-jet vaccum pump system
| Type | Flow(m3/min) | Ultimate pressure | Power | Speed | water supply | ||
| when suction pressure is -0.093 Mpa,the flow will be not less than | when suction pressure is -0.097 Mpa,the flow will be not less than | when suction pressure is -0.099Mpa,the flow will be not less than | Mpa | Kw | rpm | L/min | |
| 2SK-0.4P1 | 0.28 | 0.24 | 0.20 | -0.099(-750) | 2.2 | 2860 | 3~5 |
| 2SK-0.8P2 | 0.56 | 0.48 | 0.40 | 3 | 2880 | 5~8 | |
| 2SK-1.5P1 | 1.05 | 0.90 | 0.75 | 4 | 1440 | 10~15 | |
| 2SK-3P1 | 2.10 | 1.80 | 1.50 | 7.5 | 1440 | 15~20 | |
| 2SK-6P1 | 4.20 | 3.90 | 3.00 | 15 | 1460 | 25~35 | |
| 2SK-8P1 | 6.30 | 5.20 | 4.20 | 18.5 | 1460 | 30~40 | |
| 2SK-12P1 | 8.40 | 7.20 | 6.00 | 22 | 970 | 40~50 | |
| 2SK-20P1 | 14.00 | 12.00 | 10.00 | 37 | 740 | 60~80 | |
| 2SK-30P1 | 21.00 | 18.00 | 15.00 | -0.099(-700) | 55 | 740 | 70~90 |
