Specifications
1, led driver emc2, OT, OL, OV protection.
3, OEM offered
4, 2~5 year's warranty.
5, high efficiency

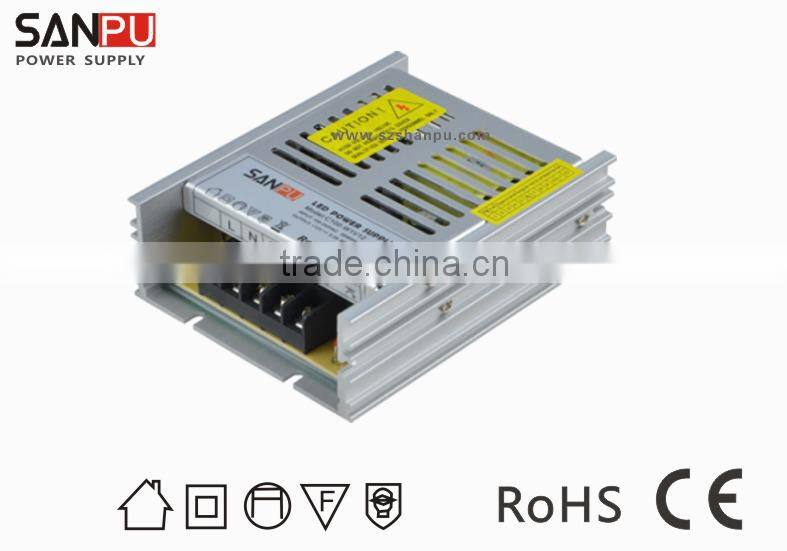

35w 220v 12v led driver emc
Established in 1999, we were experienced power supply manufacturer in China. Currently we have 3 major switching power supply series : CONSTANT VOLTAGE, CONSTANT CURRENT and DIMMABLE power supply with different performance. Switching power supply can be used for LED lights, CCTV, LCD and other lighting projects. All the power supply were
2~5 years' warranted.
Details of single output 220v to 12v led power transformer
Specification of single output 220v to 12v led power transformer
| Model | C35-W1V | ||||
| OUTPUT | DC Output (V) | 5 | 12 | 15 | 24 |
| Rated Current (A) | 5 | 3 | 2.4 | 1.5 | |
| Current Range | 0~5 | 0~3 | 0~2.4 | 0~1.5 | |
| Voltage ADJ. Range | ±2% | ±1% | ±1% | ±1% | |
| Voltage Accuracy | ±2% | ±1% | ±1% | ±1% | |
| Load Regulation | ±2% | ±2% | ±2% | ±2% | |
| Set-up Time | 200ms | 200ms | 200ms | 200ms | |
| INPUT | Voltage Range | 100~240VAC | |||
| Frequency Range | 47~63HZ | ||||
| AC Current | 0.9A/115V 0.45/230V |
||||
| Inrush Current | 36A/230V Cold start |
||||
| Leakage Current | <1mA/240VAC | ||||
| EFFICIENCY | 110Vac input | 76% | 80% | 76% | 80% |
| 220Vac input | 77% | 82% | 78% | 83% | |
| PROTECTION | Over Load | 105~135% hiccup auto-recovery |
|||
| Over Voltage | 115~135% cut off auto-recovery |
||||
| Operating ambient Temp & Hum. | "-20C~+60C 20%~90%RH |
||||
| Withstand Voltage | I/P-O/P : 1.5KvAC 1 mins I/P-FG : 1.5KvAC 1 mins O/P-FG : 0.5KvAC 1 mins |
||||
| OTHERS | Dimension (L*W*H) | 80*59*33(mm) | |||
| Packing | 80pcs/CTN, 12KG, 0.02CBM | ||||
| Cooling method | Cooling by free air convention | ||||
Certification of 35W single output 220v to 12v led power transformer
Generally, these switching power supply were CE and ROHS certified. We are confident and willing to apply the specific certifications as per your requests.
Packing Details of 35W single output 220v to 12v led power transformer
Company Information
Established in 1999, we were experienced power supply manufacturer in China. Currently we have 3 major switching power supply series : CONSTANT VOLTAGE, CONSTANT CURRENT and DIMMABLE power supply with different performance. Switching power supply can be used for LED lights, CCTV, LCD and other lighting projects. All the power supply were 2~5 years' warranted.
