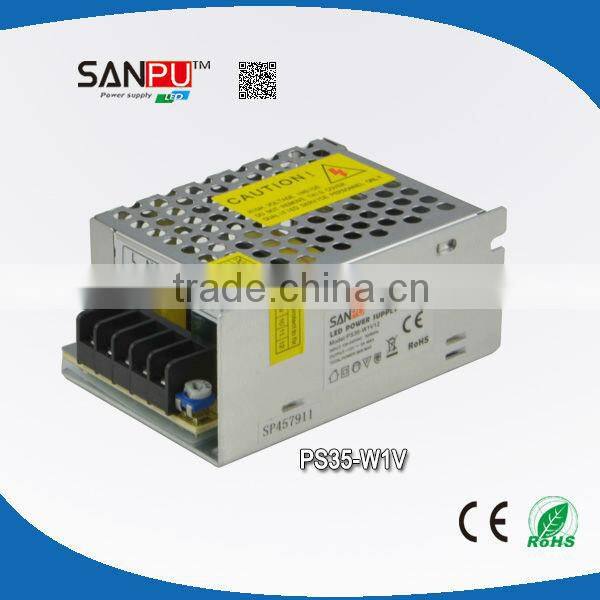

220v 12v 24v Power Transformer

Name: 220v 12v 24v Power Transformer
Brand: SANPU
SKU: 111377585
Availability: InStock

US$ 4 - 8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SANPU

Model Number:

PS35-W1V

Shenzhen Sanpu Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SANPU

Model Number PS35-W1V

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 5V,12V, 15V, 24V,

Output Frequency 47~63Hz

Output Current 0~5A

Specifications

1. 220v 12v 24v power transformer
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty

Features

1. 220v 12v 24v power transformer

2.Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

AC input voltage range	85~132VAC 47~63Hz
Input current	0.9A/110V 0.45A/230V
AC inrush current	Cold-start current 36A/230V
Leakage current	<2MA/240VAC
DC adjustable range	±10% rated output voltage
Over load protection	105~135% hiccup mode, auto-recovery
Over-temp protection	Rectifier≥90°C cut off the output, auto-recovery
Setup, rise, hold up time	200ms, 100ms, 30ms
Withstand voltage	I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute
Working temperature	-20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size	*0.16Kg, 100pcs/16.Kg, 855835(mm)*
Model	Output		Error	Range	Efficiency
PS 35- W1V5	5V	0~5A	± 2%	80mv	76%
PS 35- W1V12	12V	0~3A	± 1%	100mv	78%
PS 35- W1V15	15V	0~2.4A	± 1%	100mv	80%
PS 35- W1V24	24V	0~1.5A	± 1%	150mv	80%
