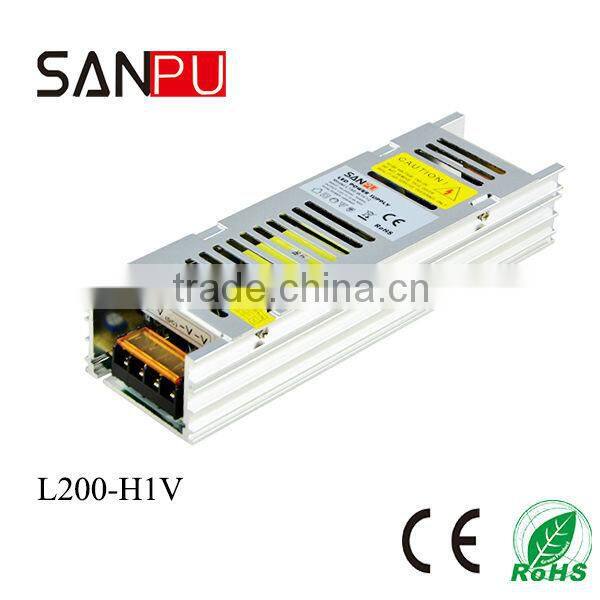

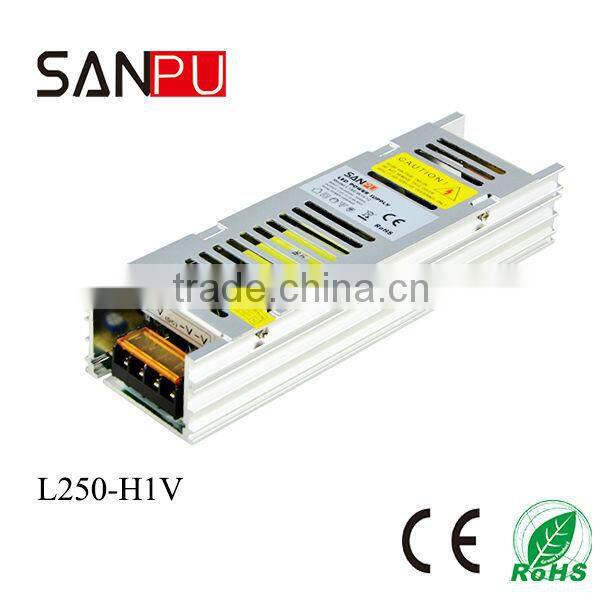

AC DC Led External Lighting Switch Power Supply 200W

Name: AC DC Led External Lighting Switch Power Supply 200W
Brand: SANPU
SKU: 111377433
Availability: InStock

Shenzhen Sanpu Intelligent Technology Co., Ltd.

US$ 12 - 15 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SANPU

Model Number:

L250-H1V

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SANPU

Model Number L250-H1V

Output Power 201 - 300W

Output Type Single

Input Voltage 220V

Output Voltage 5V 12V 15V 24V 27V 48V

Output Frequency 47~63Hz

Output Current 0~20A

Specifications

1. CE, ROHS approved
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. Rainproof

Features

1. Various types

2.Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

9. Life span: 50,000H

AC input voltage range	85~132VAC 170~264VAC 47~63Hz
Input current	5A/115V 2.5A/230V
AC inrush current	Cold-start current 25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
DC adjustable range	±10% rated output voltage
Over load protection	105~135% hiccup mode, auto-recovery
Over-voltage protection	115~135% Cut offthe output, auto-recovery
Over-temp protection	Rectifier≥90 °C cut off the output, auto-recovery
Setup, rise, hold up time	200ms, 100ms, 20ms
Withstand voltage	I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute
Working temperature	-20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size	*0.66Kg, 40pcs/26.5Kg, 2237139(mm)*
Model	Output		Error	Range	Efficiency
L 200- H1V12	12V	0~20A	± 1%	150mv	80%
L 200- H1V15	15V	0~16A	± 1%	150mv	83%
L 200-H1V24	24V	0~10A	± 1%	150mv	84%
L 200-H1V27	27V	0~9A	± 1%	150mv	85%
L 200-H1V48	48V	0~5.2A	± 1%	200mv	86%
