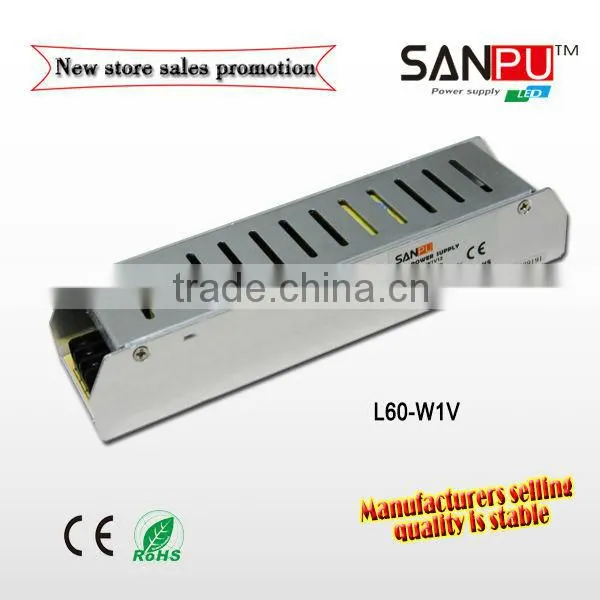

Help Center60W High Quality 12v 5a Power Supply 100-240v Ac-230v Power Supply
Related Products
-
60W Good Quality 12v 5a 100-240v 12v Amp Power SupplyUS$ 8 - 12MOQ: 1 Piece -
The Power Supply,60w 12v the Power Supply Manufacturers, Suppliers and ExportersUS$ 8 - 12MOQ: 1 Piece
-
Reliable Factory CE RoHS Certificated 60W 12v Switch Mode Power SupplyUS$ 8 - 12MOQ: 1 Piece
-
60W High Quality 12v 5a Power Supply 100-240v Linear Power SupplyUS$ 8 - 12MOQ: 1 Piece
-
60W Good Quality 12v 5a Power Supply 100-240v Variable dc Power SupplyUS$ 8 - 12MOQ: 1 Piece
Specifications
1.60w ac-230v power supply2.100% full load burn-in test
3.Small- volume high-efficiency
4.Two years warranty
Features
60w ac-230v power supply
universal AC input
Protections: short circuit, over load, over temp, over voltage
Build-in EMI filter with tiny ripple
100%full load burn-in test
Small volume high-efficiency
Conform to EN60950 GB4943 UL60950 safety standards
Conform to GB9254, EN55022,EMC standards
AC input voltage range |
85~264VAC 47~63Hz |
||||
Input current |
1.2A/110V 0.7A/230V |
||||
AC inrush current |
Cold-start current 36A/230V |
||||
Leakage current |
<1mA/240VAC |
||||
DC adjustable range |
±10% rated output voltage |
||||
Over load protection |
105~135% hiccup mode, auto-recovery |
||||
Setup, rise, hold up time |
200ms, 100ms, 20ms |
||||
Withstand voltage |
I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute |
||||
Working temperature |
-20 °C ~+60°C, 20%~90%RH |
||||
Weight/ packing/ size |
0.2Kg, 80pcs/16Kg, 160*40*32(mm) |
||||
Model |
Output |
Error |
Range |
Efficiency |
|
L 60- W1V5 |
5V |
0~12A |
± 2% |
80mv |
81% |
L 60- W1V12 |
12V |
0~5A |
± 1% |
100mv |
84% |
L 60- W1V15 |
15V |
0~4A |
± 1% |
100mv |
85% |
L 60-W1V24 |
24V |
0~2.5A |
± 1% |
150mv |
86% |
Parameter of 60w ac-230v power supply

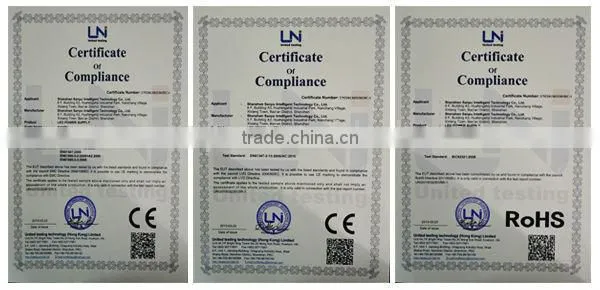

CE & ROHS

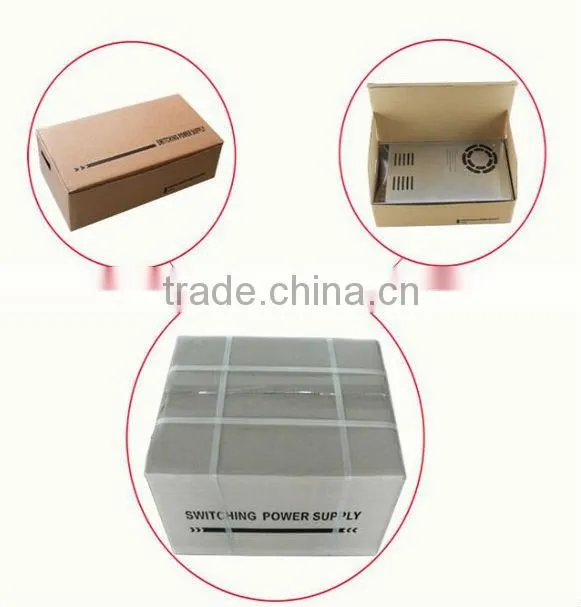

Packing

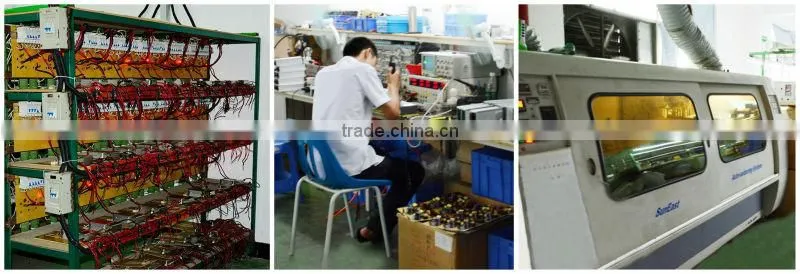

Processing Workshop
60w ac-230v power supply
Our Advantages
1, 8 years focus on the LED Power Supply Research and development, Production;
2, Providing service for 3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
3,High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 3000 customers;
4, For control the quality, we made the transformer by our own factory, this also for the power supply can bestable and reliable;
5,Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
6,After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
7,Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock.
