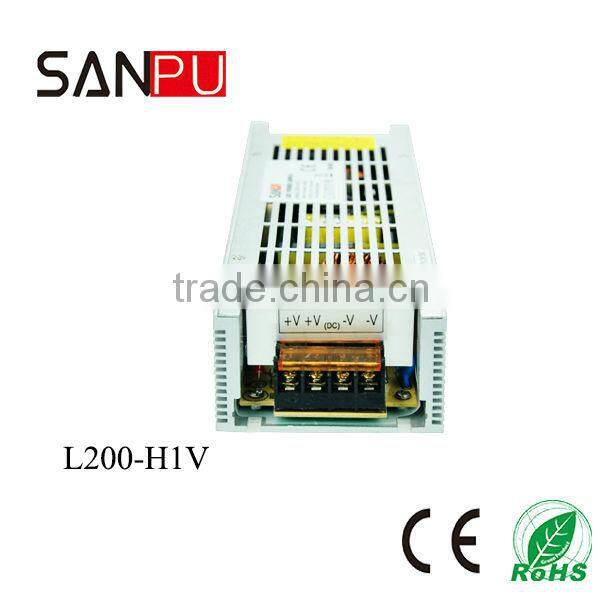

Help Center2013 AC-DC Switching Power Supply L200-H1V
Related Products
-
110v ac 24v dc Transformer,110v ac 24v dc Transformer Manufacturers, Suppliers and ExportersUS$ 5 - 20MOQ: 1 Piece -
230v ac 24v dc Converter,230v ac 24v dc Converter Manufacturers, Suppliers and ExportersUS$ 5 - 20MOQ: 1 Piece
-
220v 12v Power Transformer,220v 12v Power Transformer Manufacturers,suppliers and ExportersUS$ 5 - 20MOQ: 1 Piece
-
60W High Quality 12v 5a Power Supply Manufacture 100-240v Variable Voltage dc Power SupplyUS$ 8 - 12MOQ: 1 Piece
-
60W High Quality 12v 5a Power Supply Manufacture 100-240v High Voltage Power SupplyUS$ 8 - 12MOQ: 1 Piece
Specifications
1. CE, ROHS approved2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. Long lifes
|
Features: 1.international AC input range 2.high efficiency, low working temperature ft- start circuit, limiting AC surge current soft-start 4.short circuit, overload, over voltage protected pact size, light weight 6.100% full load burn-in test 7.Built-in EMI filter, low ripple noise 8.low cost, high reliability 9.CE and ROHS approvals
Metal standard type constant voltage 200W | ||||
Input specification |
AC input voltage range |
85---132VAC 170---264VAC |
||
Input frequency |
47-63Hz |
|||
AC inrush current |
25A/115V 50A/230V |
|||
Output specification |
Output voltage can be adjusted |
±10% |
||
Start-up time |
leq1S(input230V,Io=100%) |
|||
keep time |
more than or equal to 20mS (input230V,Io=100%) |
|||
Voltage regulation |
(Full load) leq0.5% |
|||
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
||
Over-voltage protection |
105% - 150% of the rated voltage |
|||
Insulation intensity |
Input---output |
1500VAC/1min |
||
Input---ground |
1500VAC/1min |
|||
Input---ground |
500VAC/1min |
|||
Safety standards |
According with GB4943, UL60950-1,EN60950-1 standards. |
|||
E M C standards |
According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards |
|||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
||
Storage temperature |
–40°C~85°C/10%~95%RH |
|||
height above sea level |
leq2000M |
|||
Structure |
Size(mm) |
223(L)*71(W)*39(H) |
||
Cooling method |
Cooling method |
Natural cooling air convection |
||
Weight |
0.66KG/PCS ,40pcs/26.5kg |
|||
Product Type Table | ||||
Product model |
output specification |
Error, range |
efficiency |
|
L200-H1V5 |
5V |
0-40A |
±2%, 120mV |
81% |
L200-H1V12 |
12V |
0-16.5A |
±1%, 150mV |
84% |
L200-H1V15 |
15V |
0-13A |
±1%, 150mV |
84% |
L200-H1V24 |
24V |
0-8.3A |
±1%, 150mV |
85% |
L200-H1V27 |
27V |
0-7.4A |
±1%, 150mV |
85% |
L200-H1V48 |
48V |
0-4.2A |
±1%, 200mV |
86% |
