Home > Products > skeleton bucket > SF Hight Quality Trommel Screen for Excavator, Rotary Screener, Small Sand Gravel Trommel Screen for Sale
SF Hight Quality Trommel Screen for Excavator, Rotary Screener, Small Sand Gravel Trommel Screen for Sale
- Usually Qingdao/Lianyungang or China main port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Xuzhou Excavator Riddle Bucket, Skeleton Bucket Made in China
-
SF High Quality and Low Price Screening Bucket for Excavator, Sieve Bucket, Skeleton Bucket for Sale
-
SF Manufacturer Shaker Bucket, Skeleton Excavator Bucket, Sieve Bucket for Sale
-
Excavator Attachment Skeleton Bucket, Sieve Bucket for Sale Quality Choice
-
Excavator Attachments Skeleton Bucket Made in China
-
Excavator Shaker Bucket With Bucket Teeth
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SF | |
| Model Number | SFTrommel Screen For Sale |
Product Description

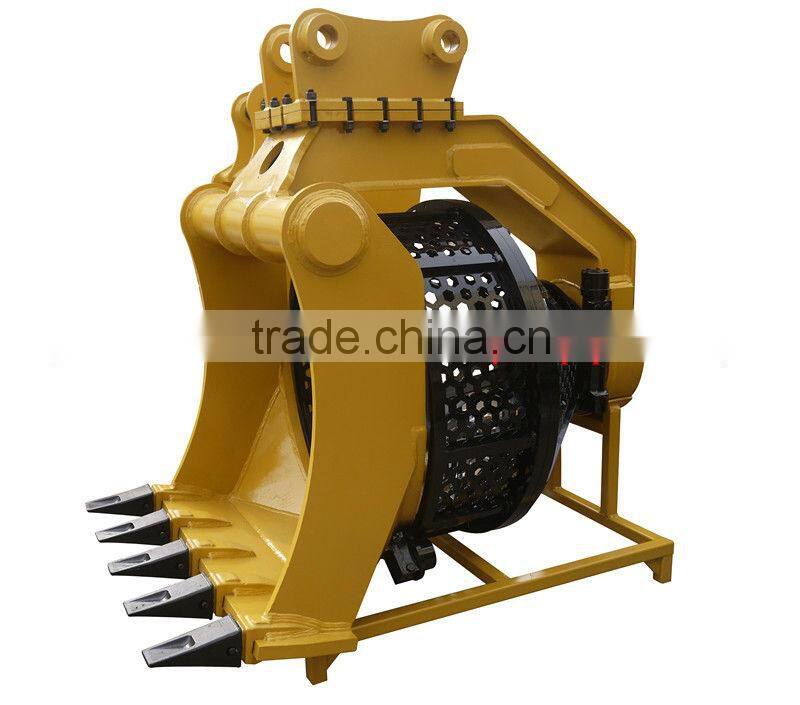

SF Trommel Screen For Sale
- Made out of HARDOX 450 steel
- Changeable Teeth and Screens
- Allround Demolition/Recycling Equipment
- Can design and produce all brands according to customer demands
- Can make the screen holes size and shape according to your requirment
1)Application:
- Perfect for the selection of natural materials
-Primary selection of scrap material, demolition material, filling material for excavations, and material resulting from the reclamation of rocky soil
-Selection of pebbles in waterway
-Cleaning of beaches
-A crucial piece of equipment in all situations were smaller pieces need to be obtained
2)Specification
| 20T Rotary Screener Bucket | |
| Brand | SF |
| Place of Origin | Xuzhou,Jiangsu,China |
| Model | 20T |
| Weight | 1600KG |
| Length | 2190mm |
| Width | 1400mm |
| Height | 1650mm |
| Screen Diameter | 1340mm |
| Capacity | 0.9CBM |
| Material | HARDOX 450 steel (Teeth)+Q345B+NM400 |
| Working Pressure | 10-16Mpa |
| Rotating Speed | 1-10rpm |
| Running Gear(Motor) Displacement | 5000mL/Min |
| Pin Diameter | 80mm |
| Bucket Ear Distance | 333mm |
| Pin Center to Center | 445mm |
| Package | Export Standard Wooden Case |
| Delivery Time | Usually 15workdays |
| HS Code | 84314100 |
| Remark | OEM & ODM |
| also Producing the grapple for 3-120T machine | |
The SF SFTrommel Screen are great for
- Primary selection of the scrap material
- Demolition of the material
- Material for excavation Filling
- Separating and Recycling Material from the rocky soil - Selection of pebbles in waterways - Road-building, landscaping, sewer and watermain industries - Cleaning the beaches etc.
SF Trommel Screen Buckets are available in a wide-range of widths, tine configurations and capacities.
1) There are Inlet hose,outlet hose,and oil drain hose behind the bucket
2) The Running Gear(Motor) flow controls the running speed
3) The Mesh size can be customized and the screening is changeable easily
4) Advanced Digital control flame cutting machines, large lapping machines, and protective welding machines guarantee the quality of our products
5)Low noise, meet the requirements of environmental protection
3)Chemical components and mechanical performances
Material | Code | Main | Che | mical | Com | position | Hardness | Extension | Drag and Extension Intensity | Bend Intensith |
|
| C | Si | Mn | P | S |
|
|
|
|
Mn Board | Q345B | 0.18 | 0.55 | 1.4 | 0.03 | 0.03 | 163~187 | 21 | 470~660 | 345 |
Homemade Regrinding Board | NM360 | 0.20 | 0.3 | 1.3 | 0.02 | 0.006 | 360 | 16 | 1200 | 1020 |
High Intensity Regrinding Board | HARDOX-500 | 0.20 | 0.7 | 1.7 | 0.025 | 0.01 | 470~500 | 8 | 1550 | 1300 |

Xuzhou Shenfu Construction Machinery & Equipment Co.,Ltd located in
“China Engineering Machinery City”------Xuzhou Jiangsu Province China.
We are the professional manufactory of Excavator bucket,production,Developing,and selling all by ourselves.We have export right,our Protection export to Australia,Sri Lank,Italy,USA,Indonesia,VietnamTanzania,Mauritius,Russia,Chile,Ecuador,Japan,Singapore,Myanmar,and so on.Our bucket fit for all the world famous Excavator.
Our new factory finished on January 2014,covering about 33330 squire meters.
We never stop improving to satisfied with all of our customer’s Requirements,to be the trusted excavator bucket manufacturer for you.

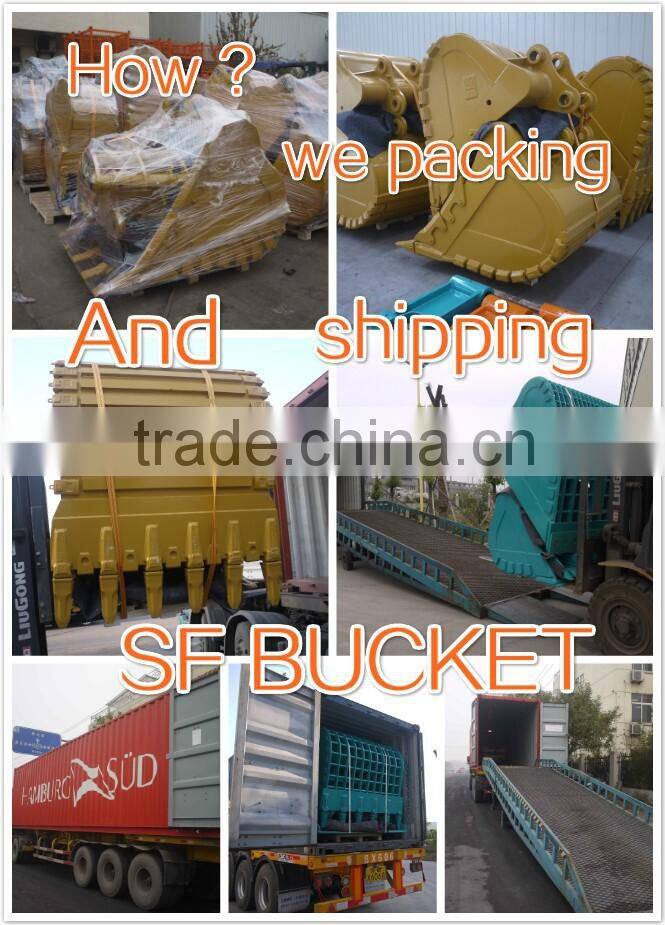

3.We have a team specialized into packing and loading container,they have rich experience

1. Rich experience in Excavator buckets and other parts.
2. Not only sell the product, but also can design as customer's request.
3. With a wide range of goods.
4. Quality is guaranteed by skilled workers, honest employee and QC team.
5. Excellent quality, competitive price & professional service.
2.We choose the best material for our bucket and own experienced skills
2.We can design and make buckets according to our customer request.
3.We can also support the shipment for our customer
4.Fast delivery time and good after-sales service.


We are direct manufacturer of excavator,loader,backhoe attachments,so the price is very competitive,your inquiry is most welcome,welcome to visit our factory!
