CE all brisbane clear quartz glass tube with low price
- 100000 Piece / Pieces per Month
- any port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
STA high purity borosilicate 3.3 pyrex glass tube Quality Choice
-
STA 400mm large diameters high quality borosilicate glass tube
-
STA high quality different size borosilicate glass tube
-
CE/SGS all size low price borosilicate glass tube
-
CE and SGS all size glass test tube
-
STA 0.2mm-0.6mm wall thickness borosilicate glass tube
Product Details
Place of Origin | Henan, China | Brand Name | STA | |
Model Number | STA-103 | Type | Clear Quartz Pipe | |
Color | clear | Application | Chemical/water treatment/UV filter | |
Surface Treatment | Polished | Shape | One End Closed Quartz Tube | |
Outside Diameter | 1.5mm--800mm, according to custom design | Ozone Content | Ozone Free |
Product Description
Specifications
CE all size brisbane clear quartz glass tube1. SiO2>99.99%
2. High temperature to 1100C
3. OD:1.5mm--800mm
brisbane clear quartz glass tube

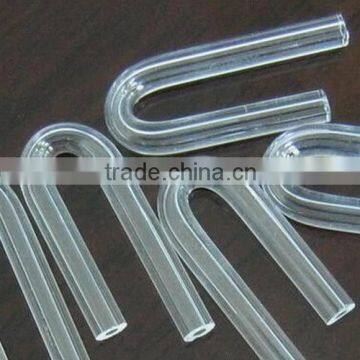

We produce different sizes and kinds of quartz tubes, such as thick wall quartz tubes, large diameter quartz tube, quartz twin tube, u-shape tube, C shape tube, quartz capillary tube, perforated tube, four holes tube, one end closed tube, quartz test tube, heat resisting quartz tube, corrosion resisting quartz tube, and other special shaped tubes according to customers' design.
Large diameter quartz tube/thick wall clear Quartz Tube
1,Large diameter quartz tube/thick wall clear Quartz Tube
2,Purity 99.99% min
3,Resistance 1100 degree, 1000 long time work
4,Low OH
5,No bubble no airline
6,Wall thickness 0.4mm-10mm
7,Apply to tube furnace tube,thermocouple,chemistry, Chemical, water treatment,UV filter,etc.
Size
Range of OD | OD | WT | Siding | Out of Round | Bow1220mm |
≤6mm | ±2.0% | ±10% | 12% | 2.0% | 2.5mm |
6.00-15.00mm | ±1.25% | ±8% | 10% | 1.5% | 2.5mm |
15.00-20.00mm | ±1.25% | ±10% | 15% | 1.5% | 2.5mm |
20.00-25.00mm | ±1.25% | ±10% | 15% | 1.5% | 3.0mm |
25.00-30.00mm | ±1.35% | ±12% | 15% | 1.5% | 3.0mm |
30.00-80.00mm | ±1.5% | ±14% | 15% | 2.0% | 3.0mm |
80.00-100.00mm | ±1.0% | ±0.5mm | 15% | 2.0% | 3.0mm |
100.00-120.00 | ±1.5% | ±0.8mm | 15% | 2.0% | 3.0mm |
120.00-160.00 | ±1.8% | ±1.0mm | 20% | 2.5% | 3.0mm |
160.00-180.00 | ±3.0% | ±1.0mm | 25% | 2.5% | 3.0mm |
180.00-200.00 | ±4.0% | ±1.5mm | 25% | 2.5% | 3.0mm |
200.00-240.00 | ±4.0% | ±1.5mm | 25% | 2.5% | 3.0mm |
240.00-280.00 | ±6.0% | ±2.0mm | 25% | 2.5% | 3.0mm |
280.00 above | ±8.0% | ±3.0mm | 25% | 2.5% | 3.0mm |
Specfication
SIO2: | 99.9 % |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732 |
Working temperature: | 1100°C |
Max temperature can reach in a short time: | 1450°C |
Acid tolerance: | 30 times than Ceramics,150 times than Stainless steel |
Visible light transmittance: | above 85% |
UV spectral region transmittance: | 85% |
Infrared light blocking rate: | 85% |
