One end closed clear quartz glass tube
- 10000 Piece / Pieces per Month
- shanghai qingdao
- T/T Credit Card
You May Like
-
STA colored borosilicate glass tube
-
STA borosilicate glass tube with best price
-
STA high performance one end closed quartz pipe glass tube for furnace
-
STA hot sales transparent quartz pipe tube for furnace
-
STA IE/ ISO quality clear quartzpipe glass tube for furnace
-
STA factory price polished quartz crystal tube
Product Details
Place of Origin | Henan, China | Brand Name | STA | |
Model Number | STA-QGT03 | Type | Clear Quartz Pipe | |
Color | transparent | Application | heating,lighting,chemical industry etc. | |
Surface Treatment | Polished | Shape | One End Closed Quartz Tube | |
Outside Diameter | 1.5-300mm | Ozone Content | Ozone Free |
Product Description

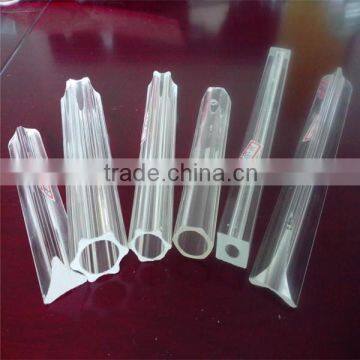

One end closed clear quartz glass tube
1.Product description:
Quartz Glass Tube is made of silicon dioxide in special industrial technology glass,is a very good base material.Quartz glass has a series of excellent physical and chemical properties.Quartz glass tube adopts advanced melting production technology, combined with effective automatic control system for producing transparent quartz glass tube, with high purity, strong transmissivity, size control strictly, hydrowyl coneten is low, is halgen lamp, mercury lamp, metal halide lamp and other high temperature resistant materialof choice for quartz lamp, the exhaust pipe has the characteristics of pipe diameter, wall thickness, high consistency, and suitable for quick assembly line production.Also can according to customer requirements to neat cutting of quartz tube, buring mouth, bend sealing, grinding, such as deep processing.
2.Specification of quartz glass tube
SIO2: | 99.9 % |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732 |
Working temperature: | 1100°C |
Max temperature can reach in a short time: | 1450°C |
Acid tolerance: | 30 times than Ceramics,150 times than Stainless steel |
Visible light transmittance: | above 85% |
UV spectral region transmittance: | 85% |
Infrared light blocking rate: | 85% |
3. Size of quartz glass tube
Range of OD (mm) | OD(mm) | WT (mm) | Siding | Out of Round | Bow(mm) |
≤6 | ±2.0% | ±10% | 12% | 2.0% | 2.5 |
6.00-15.00 | ±1.25% | ±8% | 10% | 1.5% | 2.5 |
15.00-20.00 | ±1.25% | ±10% | 15% | 1.5% | 2.5 |
20.00-25.00 | ±1.25% | ±10% | 15% | 1.5% | 3.0 |
25.00-30.00 | ±1.35% | ±12% | 15% | 1.5% | 3.0 |
30.00-80.00 | ±1.5% | ±14% | 15% | 2.0% | 3.0 |
80.00-100.00 | ±1.0% | ±0.5 | 15% | 2.0% | 3.0 |
100.00-120.00 | ±1.5% | ±0.8 | 15% | 2.0% | 3.0 |
120.00-160.00 | ±1.8% | ±1.0 | 20% | 2.5% | 3.0 |
160.00-180.00 | ±3.0% | ±1.0 | 25% | 2.5% | 3.0 |
180.00-200.00 | ±4.0% | ±1.5 | 25% | 2.5% | 3.0 |
200.00-240.00 | ±4.0% | ±1.5 | 25% | 2.5% | 3.0 |
240.00-280.00 | ±6.0% | ±2.0 | 25% | 2.5% | 3.0 |
280.00 | ±8.0% | ±3.0 | 25% | 2.5% | 3.0 |
4.Application
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, opticalcommunications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
5.Take a look at our manufacture line:
This our manufacture line,most professional and advanced line in China,it can promise for the quality of the product and also the enough quantity of every day to meet the need of customers from all over the world.
STA Group Competitive Advantages:
1. 15 years experiences on glass manufacturing and exporting.
2. Top quality glass with CE certificate, exporting to more 60 countries in the world.
3. Unique designed strong wooden cases, solving the problems of breakage.
4. Near to QingDao of China main container seaports, ensuring convenient loading and rapid delivery.
5. Full range of flat glass supply, offering one-stop purchase.
6. Professional sales team, offering personalized and dedicated services.
