Zhengzhou STA 99% Insulating Ceramics Boron Nitride Crucible
- 100000 Piece / Pieces per Month
- ANY PORT IN CHINA
- T/T L/C D/P D/A Credit Card
- Sodium Lauryl Ether Sulphate /SLES 70% for personal care
- Precision Ceramic Chuck Semiconductor Equipment
- Ceramic Tubes with Fine Tube Sizes Available For Customization
- Corrosion Resistant and Insulating Alumina Ceramic Tube
- ST.CERA Customized Precision Zirconia Ceramic tube
- Semiconductor Ceramic Components Ceramic Focusing Rings
Product Details
Place of Origin: | Henan, China | Type: | Ceramic Parts | Application: | Industrial Ceramic |
Model Number: | BN---003 | Brand Name: | STA |
Product Description
Zhengzhou STA 99% Boron nitride ceramic tube
Boron Nitride (BN) is a white, low porosity refractory material with physical and mechanical properties similar to Graphite. However, unlike Graphite, Boron Nitride has high thermal conductivity and good thermal shock performance. The most common formulation of Boron Nitride contains boric oxide, which can cause Boron Nitride to absorb moisture, resulting in swelling and property degradation.
It is produced in a hot pressed form and the resulting material properties are anisotropic relative to the press direction. In fact, the material properties can vary considerably depending on the direction or the grade of the material. Futhermore, it is easily machined into complex shapes using standard carbide tooling. The operation temperatures range from 900°C for oxidizing environments to 2200°C for inert environments.
Specification of Boron Nitride Ceramic crucible:
Type | 99BN | CBN | ABN | ZBN | |
Main Content | BN>99% | BN>98.5% | BN+AlN | BN+ZrO2 | |
Binder | B2O3 | CaB2O6 | ALBO3 | B2O3 | |
Density (g/cm3) | 1.95-2.0 | 2.0-2.1 | 2.6 | 2.95 | |
Flexural Strength (Mpa) | 30 | 100 | 200 | 200 | |
Compressive Strength (Mpa) | 100 | 280 | 350 | 380 | |
Electrical Resistivity (ohm.cm) | >10^14 | >10^13 | >10^14 | >10^12 | |
Max. Working Temp. (°C) | air | 900 | 900 | 900 | 1000 |
inert gas | 2400 | 2400 | 2100 | 1800 | |
vacuum | 2200 | 2200 | 1900 | 1800 | |
Thermal Conductivity (W/m.K) | 20 | 35 | 50 | 30 | |
Expansion Coefficient 25 - 1000 °C (10^-6/K) | 1.5 | 2 | 4.5 | 2.5 |

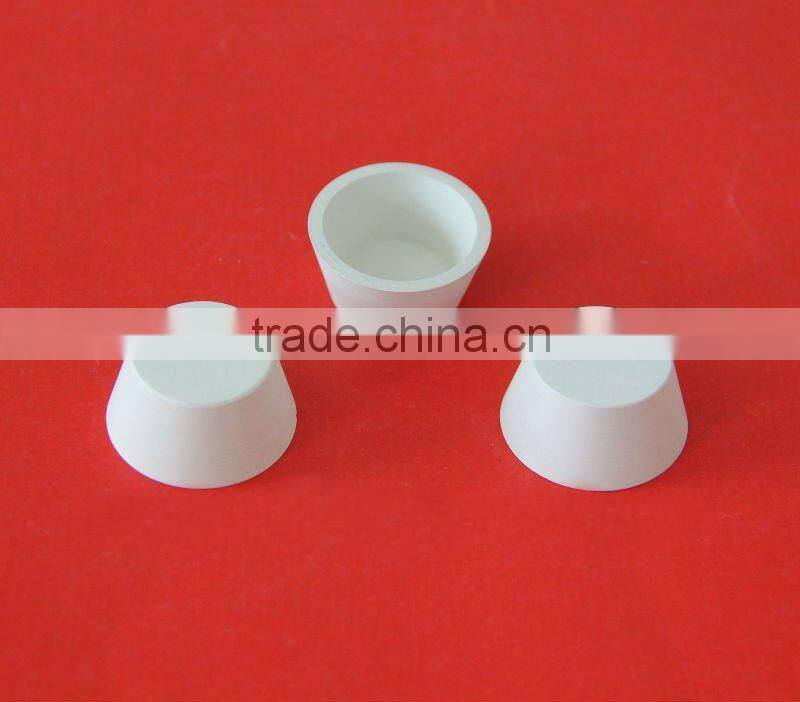

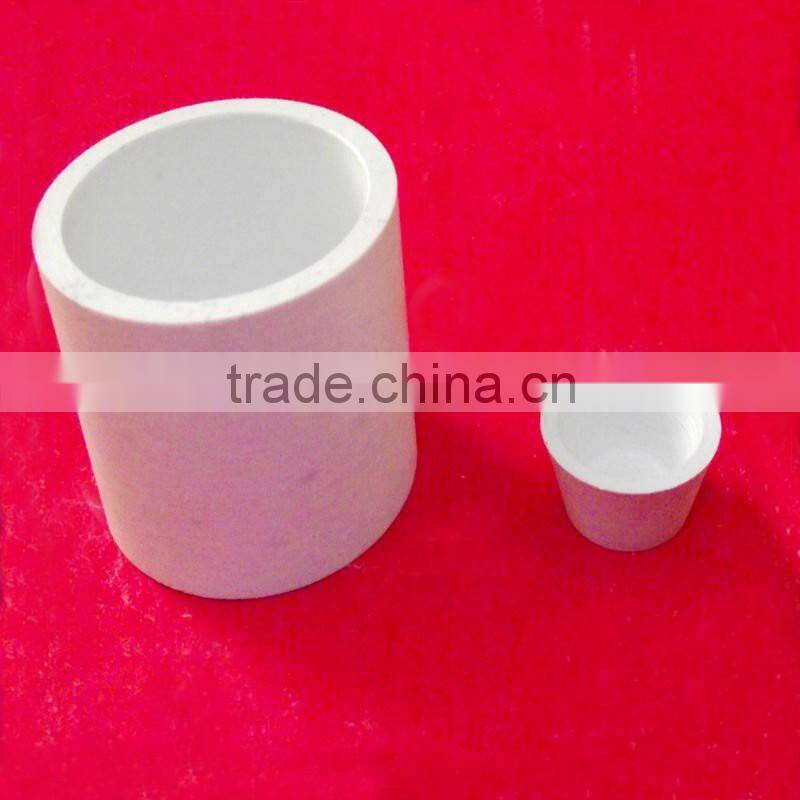

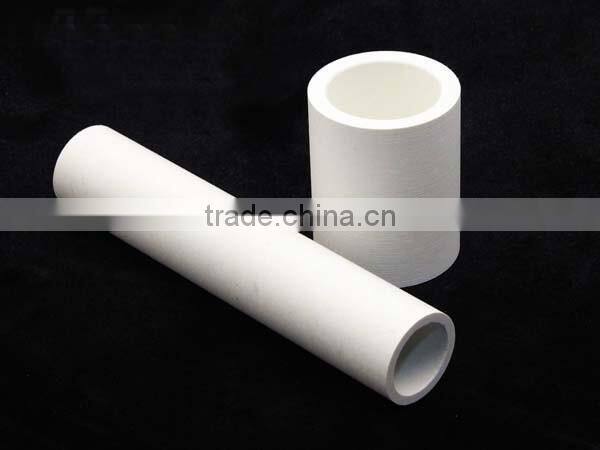

Pictures of Boron nitride ceramic crucible:
Shippping term: DHL/FEDEX/TNT EXPRESS

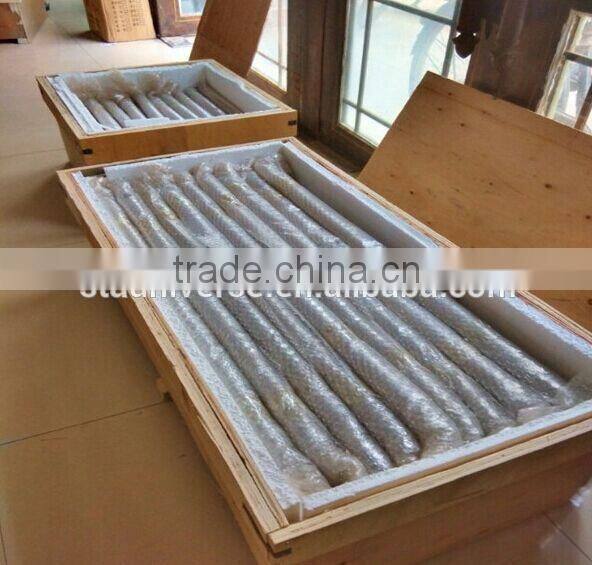

Packaging: wooden box
STA UNIVERSE GROUP CO.,LTD is a profession manufactory in China for years. We specialize in muffle furnaces, ceramic fiber products, refractory and related goods. High quality products with competitive price are popular to customer. With good after-sales service, our company have a highest reputation at overseas.
Founded is 2001, The universe group is dedicating to innovation and creating a world brand from now on. Original a small collective plant on the verge of workshop, it has now grown into an international group which has more than 72,00 employees around the globe and realizes a turnover of 2.7 billion yuan in 2010.
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
7. Check quality of items one by one
8. Provide packing photos and tracking number
9. tracking parcel for you.
1.Do you have MOQ of goods?
We accept the trial order, so you can test quality firstly.
2.Can you offer best price for us to beat competitors?
Of course, we can update price to support your business.
3.How long will it take to complete my order?
For the stock items, we can arrange the shippment within 2 days after paymment is received. For the customized items,lead time is about 25 days.
4.What's your after-sales service?
Furnaces is 2 years warranty, other products is 3 months.
5. Can you send goods to our shipping agent in China?
YES, We can. And delivery time is within 3 days.
6. Can we visit your factory?
We are so happy to get your visit.
