Zhengzhou STA Alumina Honeycomb Ceramic Plate

FOB Price

USD $1 - $15 / Piece

5 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port ANY PORT IN CHINA
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Type	Ceramic Tubes
Application	Industrial Ceramic
Model Number	HCP-004	Brand Name	STA

Product Description

Zhengzhou STA Alumina Honeycomb Ceramic Plate

Alumin Honeycomb Ceramic Plate is widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost

Specification of honeycomb ceramic plate:

Item Type		Alumina	Mullite	Dense Cordierite	Porous Cordierite	Mullite - Cordierite	Stoneware
Chemical composition , %	Al2O3	48~55	66~72	32~36	32~37	55~65	20~26
	SiO2	40~45	25~30	45~52	46~52	28~36	68~75
	MgO	/	/	5~8	8~12	2.5~3.2	0.2~0.3
	K2O+NaO2+CaO	4.0~5.5	≤1.0	≤3.0	≤2.0	≤1.0	2.5~4.0
Density , g / cm3		2.7	2.9	2.4~2.6	1.9~2.0	2.9~3.2	2.3~2.5
Coefficient of thermal expansion (20~1000),×10-6.		5~7	5.5~6.5	2.5~3.5	1.3~2.5	2.5~4.0	5~7
Heat capacity (20~1000),J/kg.		800~900	1100~1300	800~1200	750~900	850~1100	840~920
Thermal Conductivity (20~1000),W/m.		1.5~2.5	1.5~2.0	1.5~2.5	1.3~1.5	1.5~2.3	1.0~1.2
Spalling resistance.		≥150	≥350	≥250	≥360	≥250	≥150
Max. Working temp.		1300	1600	1300	1300	1400	1300

Main diamension: The size is customizable according to your requiremnt

Round		Square
Size (mm)	Size (mm)	Size (mm)	Size (mm)
Φ50×11.50	Φ150×12.50	50×50×11.50	132×92×13.50
Φ80×12.50	Φ158×13.00	92×132×11.50	120×60×13
Φ100×11.50	Φ160×13.50	74×164×12.50	142×74×13
Φ100×12.50	Φ162×13.00	100×50×13.50	130×88×13
Φ125×11.50	Φ168×13.00	110×110×12.50	153×143×13
Φ125×12.50	Φ168×13.50	132×76×13.50	170×105×13
Φ144×12.50	Φ170×12.50	132×68×13.50	182×132×13

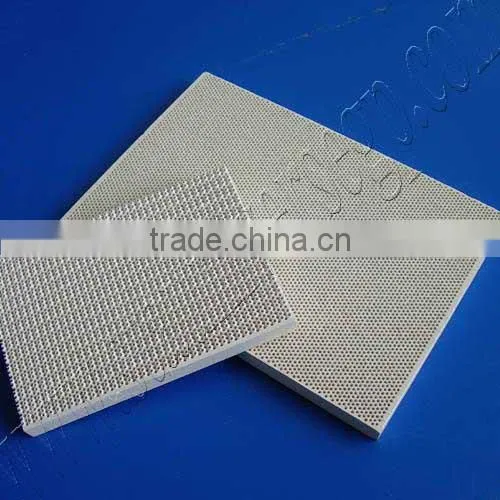

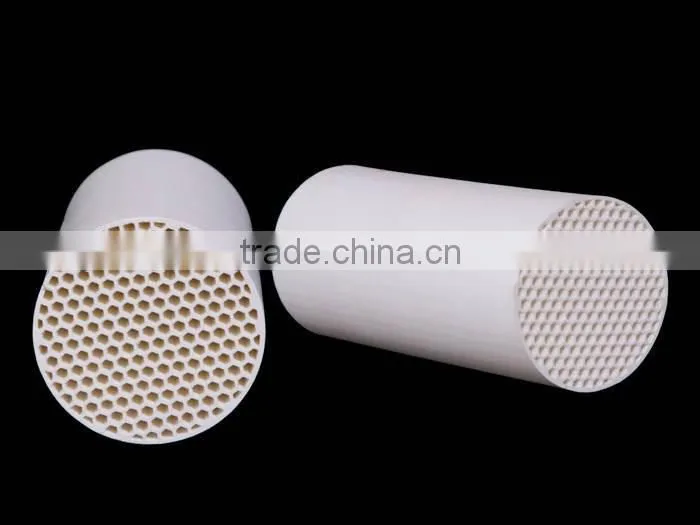

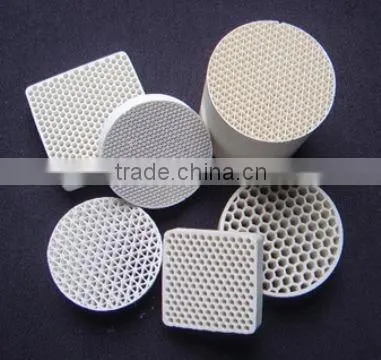

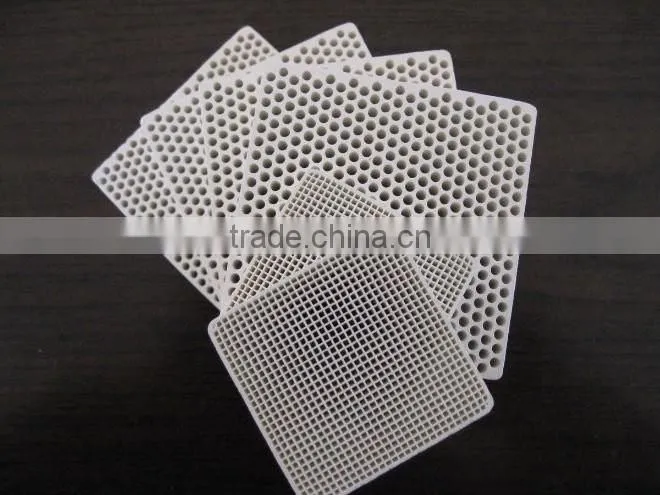

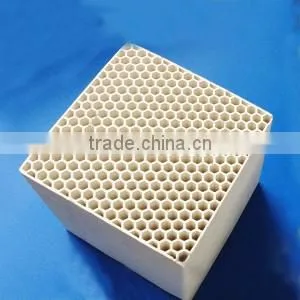

Picture of honeycomb ceramic plate:

Any question, please feel free to contact us
