STA Spiral Type Silicon Carbid Heating Elements

STA Spiral Type Silicon Carbid Heating Elements thumbnail-1
STA Spiral Type Silicon Carbid Heating Elements photo-1
US$ 0.5 - 50 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Shape:
Pipe
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
STA Refractory (Zhengzhou) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Shape Pipe
Material Silicon Carbide (SiC)
SiO2 Content (%) 0.35%
Al2O3 Content (%) 0.03%
MgO Content (%) 0.02%
CaO Content (%) 0.002%
CrO Content (%) 0.001%
SiC Content (%) 94%
Model Number STA-176LB
Brand Name STA

Product Description



1.The General Description of  silicon carbide  heating elements

1)production process:made into blank,silicided under high temperature and re-crystallized.

2)character: high-applied temperature ,anti-oxidization ,anti-corrosion ,long service life ,little deformation,easy installation and maintenance.

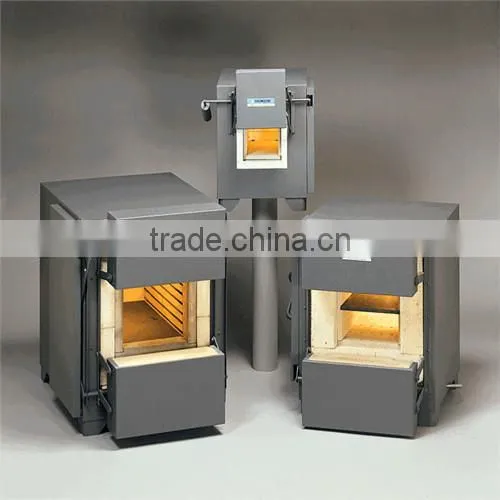

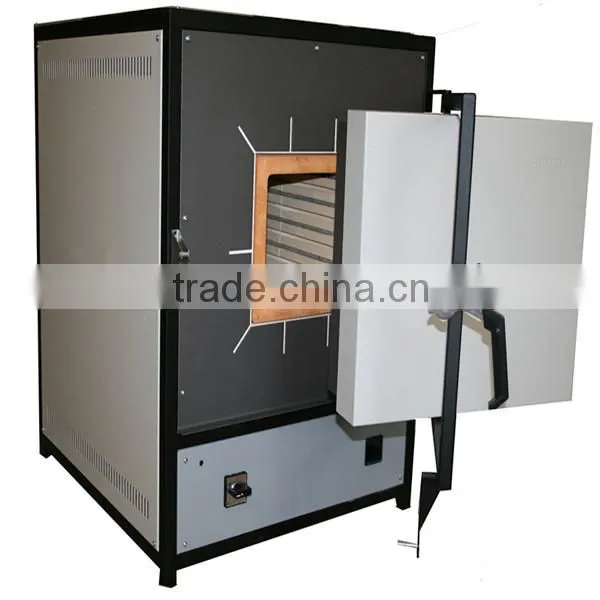

3)usage: sic heaters used in various high temperature electric furnaces and other electric heating devices,such as in the industries of magnet,ceramics,metallurgy ,glass,and machinery.

4)Type:we have rod,u,w,h,gun,single spiral,double spiral,dumbbell,door like type silicon carbide heating elements



2.Technical Parameter of Rod Shape silicon carbide Heating Elements:

OD

(Diameter)

HZ

(Hot Zone)

CZ

(Cold Zone)

OL

(Total Length)

Resistance

8mm

100-300mm

60-200mm

240-700mm

2.1-8.6 ohms

12mm

100-400mm

100-350mm

300-1100mm

0.8-5.8 ohms

14mm

100-500mm

150-350mm

400-1200

0.7-5.6ohms

16mm

200-600mm

200-350mm

600-1300

0.7-4.4 ohms

18mm

200-800mm

200-400mm

600-1600

0.7-5.8 ohms

20mm

200-800mm

250-600mm

700-2000mm

0.6-6.0 ohms

25mm

200-1200mm

250-700mm

700-2600mm

0.4-5.0 ohms

30mm

300-2000mm

250-800mm

800-3600mm

0.4-4.0 ohms

35mm

400-2000mm

250-800mm

900-3600mm

0.5-3.6 ohms

40mm

500-2700mm

250-800mm

1000-4300mm

0.5-3.4 ohms

45mm

500-3000mm

250-750mm

1000-4500mm

0.3-3.0 ohms

50mm

600-2500mm

300-750mm

1200-4000mm

0.3-2.5 ohms

54mm

600-2500mm

300-750mm

1200-4000mm

0.3-3.0 ohms



When you place an order of the Rod Shape SiC Heating Element, please give following information

1)Outer diameter(OD):mm

2)Length of Hot zone(HZ):mm

3)Length of Cold end(CZ):mm

4)Length of Overall(OL):mm

5)Shank spacing(A):mm

6)Resistance(at 1050C+/-50C):ohms

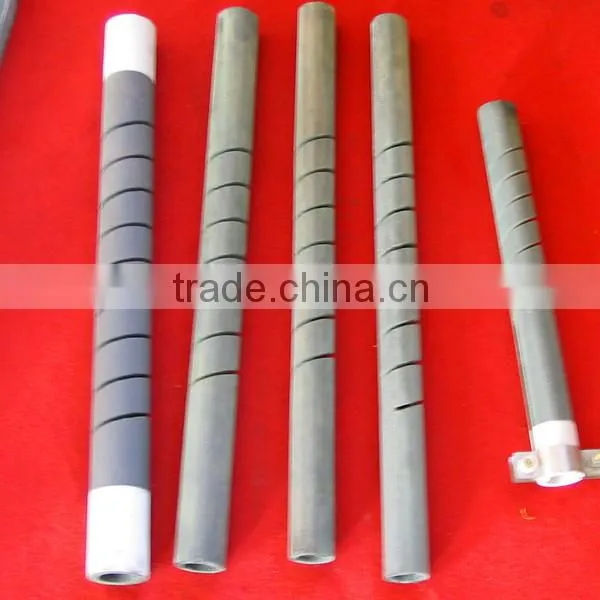

STA spiral type silicon carbid heating elements

If you have the special requirement for the resistance, please tell us!



Order Sample of the Single Spiral SiC Heating Element

SS shape: OD=25mm, HZ=300mm, CZ=200mm, OL=700mm, Resistance: 1.59Ω

Specify As: 25/300/700/1.59Ω



STA spiral type silicon carbid heating elementsSTA spiral type silicon carbid heating elements

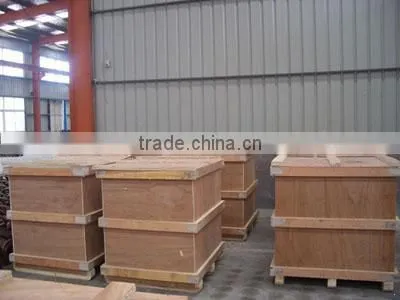

Packaging & Shipping

   Plastic paper inside, Polyfoam filled, Wooden box outside.

STA spiral type silicon carbid heating elements
