Specifications
32 Spindle Yarn Braiding MachineIntellignrt control system and Reliability
High quality and Factory,cheap
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| XD130 Series High Speed Round Rope Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XD130-16-2 | 16 | 2 | 1520 X 950 X 1760 | 0.75 | 270 | B | Φ70 X 210 | |
| XD130-24-1 | 24 | 1 | 1100 X 1100 X 1760 | 1.1 | 270 | B | Φ70 X 210 | |
| XD130-32-1 | 32 | 1 | 1280 X 1280 X 1760 | 1.1 | 270 | B | Φ70 X 210 | |
| XD130-40-1 | 40 | 1 | 1280 X 1280 X 1900 | 1.5 | 270 | B | Φ70 X 210 | |
| XD130-48-1 | 48 | 1 | 1400 X 1400 X 1900 | 1.5 | 270 | B | Φ70 X 210 | |
| Range of products: Marine ropes,double strand wrapping cables,asbestos ropes,decorative ropes,and etc. | ||||||||
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine

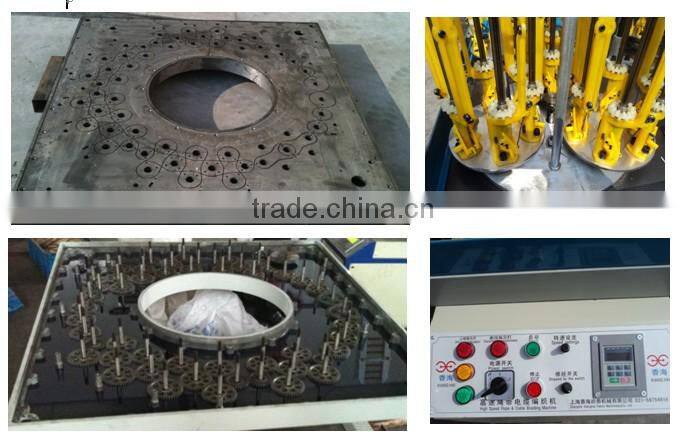

5.details:
samples:
wooden case
About us
1. 1.Professional technical team:
2. comfortable working environment:
3. Certification:
COTANCT US:
Address:NO.8 zone,NO.3841 Huqingping Road, shanghai ,21703,china.
website:
shxianghai.en.china.cn
contact: Amy Xia
Skype:xianghai-amy QQ:2466224175 FAX:21-6975655
WELCOME YOU
