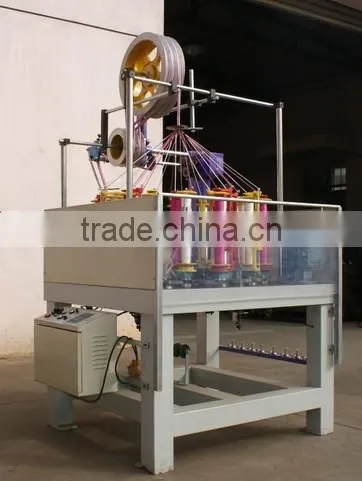

32 Spindle polyester yarn braiding machine GX180-32-1
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specification:
- Intelligent control system & advanced technology
- good quality & service and competitive price
- manufacturer & delivery on time
- CE,ISO9001
| GX180 Series High Speed Rope Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size (mm) | Weight(kg) |
| GX180-12-1 | 12 | 1 | 950 X 950 X 1750 | 0.75 | 200 | D | Φ100 X 330 | 430 |
| GX180-16-1 | 16 | 1 | 1050 X 1050 X 1750 | 0.75 | 200 | D | Φ100 X 330 | 490 |
| GX180-24-1 | 24 | 1 | 1400 X 1400 X 1600 | 1.1 | 200 | D | Φ100 X 330 | 600 |
| GX180-32-1 | 32 | 1 | 1700 X 1700 X 1900 | 1.1 | 200 | D | Φ100 X 330 | 700 |
| GX180-40-1 | 40 | 1 | 2080 X 2080 X 2100 | 1.5 | 200 | D | Φ100 X 330 | 830 |
| GX180-48-1 | 48 | 1 | 2780 X 2780 X 2450 | 1.5 | 200 | D | Φ100 X 330 | 1100 |
Range of products:
High strength ropes,mountaineering ropes,marine ropes,fire ropes,safety ropes,and etc.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
samples:
About us
1. 1.Professional technical team:
2. comfortable working environment:
3. Certification:
Want to know more? Welcome to contact me ^_^
