warping machine
Introduction-warping machine

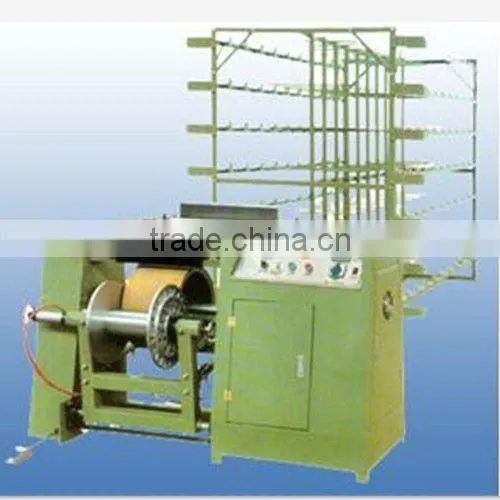

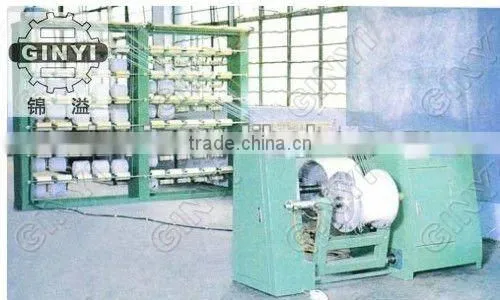

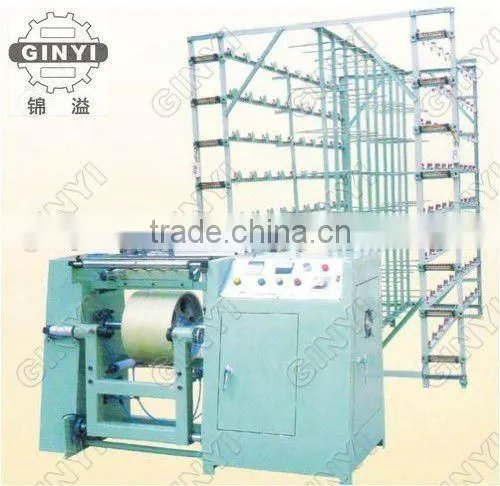

This warper is built for direct warping textile yarns. Warping can be effected on one of beams at a time; Special attachments guarantee a perfect uniformity of tension of all ends from the beginning to the end of the warping operation.
In fact, the warping angle is hept constant and the pressure between the drive roller and the beam is brought about by a air pressure system, permitting a variation according to requirements.
A triphase moter provides the drive of the warper. By means of a friction drive the beam can steplessly be put into either forward or backward motion, in order to ease tying of ends.
The machine is equipped with an expansion reed, the number of dents which is determined according to customer’s requirements.
The details info for GNW- penumatic warping machine:
Models |
GNW-160 |
GNW-196 |
CREEL ENDS |
160 |
196 |
MOTOR |
1 HP |
|
Beam Size (Max) |
φ 355 x 255 mm |
|
Back Creel |
160 ,196,(or can made by customer's require) |
|
PS:Suit for 355* 255mm beam. | ||
If you are interested in our products and need more information . Your e-mail will be highly appreciated here. Good day!
