sofa elastic making machine
- 100 Set / Sets per Month
- xiamen
- T/T
Product Details
| Condition: | New | Place of Origin: | Fujian, China | Brand Name: | GINYI |
| Model Number: | GNN-6/45 | Voltage: | 380-440V | Power(W): | 1.5 |
| Weight: | 500KG | Dimension(L*W*H): | 1.1*1.3*2.8 | Certification: | CE |
| Warranty: | 1 Year |
Product Description

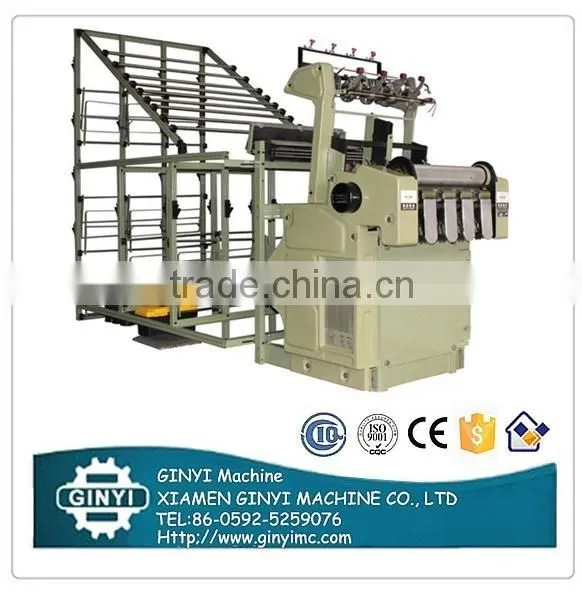

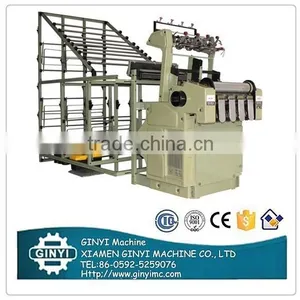

sofa elastic making machine
1,6/45 sofa elastic making machine
2,Durable life and low deperciation
3,High quality spare parts.
Character:
GNN narrow fabric needle loom with precision construction, with drive bearing, synchronous belt imported from
Japan and Germany, which drive accurately, low noise, low failure rate. It adopts auto brake system, to make more
speedy and convenient when adjusting. High speed RPM bring on high output, supply customer high economic
efficiency.
Usage:
GNN series narrow fabric needle loom can weave kinds of cotton and chemical fiber light or heavy belt. Like
elastic tape, shoelace, bag belt, seat belt and so on.
Specification
MODEL | GNN-10/30 | GNN-8/45 | GNN-8/30 | GNN-6/55 | GNN-6/45 | GNN-4/65 | GNN-4/80 | GNN-2/110 |
BELT NUMBERS | 10 | 8 | 8 | 6 | 6 | 4 | 4 | 2 |
REED WIDTH(mm) | 30 | 45 | 30 | 55 | 45 | 65 | 80 | 110 |
HEALD FRAME | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 |
PICK REPEAT | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 |
WEFT DENSITY | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 |
H.P. MOTOR | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
MAX.SPEED R.P.M | 800-1300 | 800-1300 | 800-1300 | 800-1300 | 800-1300 | 800-1300 | 800-1300 | 800-1300 |
packed by standard export wooden boxes, by ship.
