Specifications
Digital intelligent Automation Programmable Temperature PID Controller Improved Control Stability, High accuracy, performanceDigital intelligent Automation Programmable Temperature PID Controller, Indicators and Alarm Units.
STA Single loop and Multi loop PID Temperature Controllers and Process Indicators and Alarm Units are cost effective, with advanced functionality including math, logic, timing and set-point programming.
AI-708/AI-708P/AI-518/AI-518P are high-end temperature control instrument with very high measuring accuracy up to 0.1%F.S. It adopts artificial intelligent control technology, and has the function of control, alarm, retrains mission.
These temperature controllers are PID control and use advanced artificial intelligent control algorithm, no overshoot and with the function of auto tuning & self-adaptation.
This PID controller use advanced modular structure, conveniently providing plentiful output options, able to satisfy the requirements of various applications, make quick delivery and convenience the maintenance of the instrument.
Friendly and customized operating interface for the controller leads to easy learning and simple manipulation. Any parameter can be promoted to immediate operator access in Field Parameter Table or password protected in Full Parameter Table.
This temperature control instrument is with worldwide power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose.
High quality and performance hardware design, using high performance tantalun capacitor or ceramic capacitor. Compared to competing models, it consumes less electricity, experiences less temperature shifting, provides higher stability and reliability, and can work in a wider range of temperature.
These temperature controllers are ISO9001 and CE certified, complying with EMC requirement, achieving world class level of quality, anti-interference ability and safety.
Applications: This type of temperature controller is applicable for highly accurate controls of Temperature, Pressure, Flow, Level and Humidity etc.
Model | AI-708P/518P temperature control based on AI-708/518 with 30+20 segments program control added. |
Dimension | A:96*96*100mm,B:160*80*100mm,C:80*160*100mm, |
D:72*72*100mm,D2:48*48*95mm, | |
E:48*96*100mm,F:96*48*100mm, | |
Control Model | On-off control mode (dead band adjustable) |
AI artificial intelligent MPT with auto-tuning, adopting fuzzy logic PID algorithm | |
Measurement Accuracy | 0.1%FS±0.1°C |
±1°C | |
Resolution | 0.1°C(automaticallychangeto1°Cwhentemperaturehigher than999.9°C)/1°Cselectable. |
Temperature drift | ≤0.01%FS/°C(typicalvalueis50ppm/°C) |
Response | ≤0.3s |
Input | Thermocouple: K,S,R,T,E,J,N |
RTDs:Pt100,Cu50 | |
LinearVoltage:0~5V,1~5V,0~1V,0~100mV,0~20mV,etc | |
LinearCurrent:0~10mA,0~20mA,4~20mA,etc | |
LinearResistancet:0~80Ω,0~400Ω | |
Additional customized input(Graduation index is needed) | |
Input Ranges | K(-100~+1300°C),S(0~+1700°C),R(0~+1700°C), |
T(-200~+390°C),E(0~1000°C),J(0~+1200°C), | |
B(600~+1800°C),N(0~+1300°C) | |
RTD:Pt100(-200~+800°C),Cu50(-50~+150°C) | |
Linear Input:~9990~30000definedbyusers. | |
Output | Relay output(NO+NC):250VAC/2A;30VDC/1A; |
TRIAC no contact discrete output(NO/NC): | |

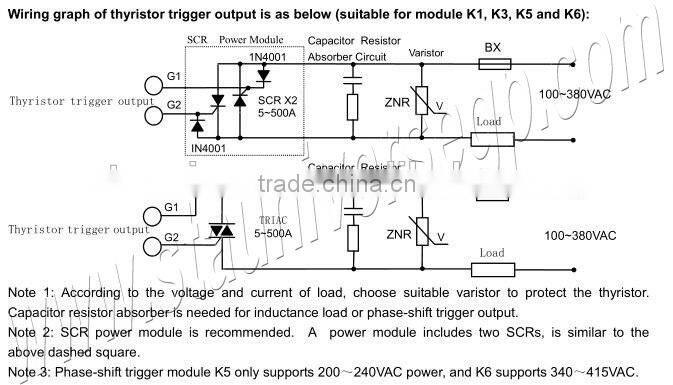

TRIACzerocrossingtriggeroutput:cantriggerTRIACof5~500A, A pair of inverse paralleled SCRs/SCR power module | |
SSRVoltageoutput:12VDC/30mA(used to drive SSR) | |
Linearcurrentoutput:0~20mA,4~20mA | |
General | Powersupply:100~240VAC,-15%,+10%;50/60Hz; |
24VDC/AC,-15%,+10% | |
Power consumption:≤5W | |
Electromagnetic compatibility(EMC): | |
IEC61000-4-4,±4KV/5KHz;IEC61000-4-5,4KV | |
Operatingconditions:Temperature-10~60°C; | |
Humidity≤90%RH | |
Optional Functions | 1~4alarms,RS485communication |
Reduce Your Engineering Costs Thru STA Digital intelligent Automation Programmable PID Temperature Controller.
Our development teams have spent years refining products so that they are easy for you to use. From ordering to engineering of products, our solutions have been designed to reduce the cost of ownership of our control products.
When you order a PID controller you can specify what you need - input types, control functions and output signals - and the instrument will be shipped to you pre-configured to enable 'out of the box' operation.
Manual calculation of PID parameters can be a lengthy process and requires in depth control knowledge. Automatic self tune, which calculates optimum PID parameters, can easily be performed - reducing your engineering time and providing straight line control response.
Improved Control Stability by STA Digital intelligent Automation Programmable PID Temperature Controller.
Industrial processes such as plastic extrusion, heat treatment or semiconductor processing require stable, 'straight-line' temperature and process control.
The best in accurate process measurement distinguishes real values from signal noise. Combine this with advanced PID algorithms to get optimum closed loop response - providing you with the features you need to keep control of the most difficult of processes.
These temperature controllers are ISO9001 and CE certified, complying with EMC requirement, achieving world class level of quality, anti-interference ability and safety.
