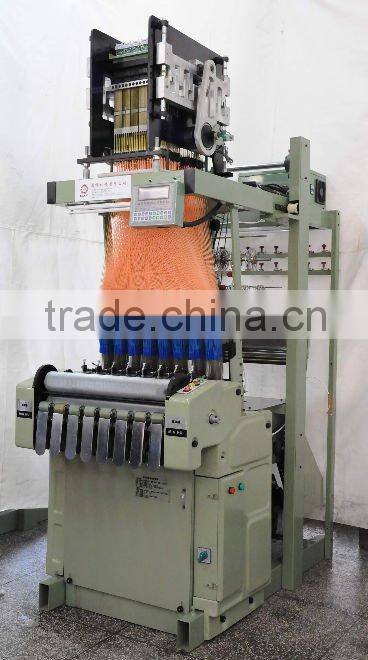

Ginyi Narrow Fabric Weaving Machine on Sale
- Xiamen Fujian China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Jacquard Loom | |
| Application | Webbing, Elastic , Jacquard Belt, Bra Strap etc | Production Capacity | 1800-2800m 22 hours | |
| Place of Origin | Fujian, China | Brand Name | Gin Yi | |
| Model Number | GNC-8/45 | Dimension(L*W*H) | 180cm*115cm*270cm | |
| Weight | 1600KG | Power(W) | 1.5KW | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Character
Ginyi computerized jacquard needle looms adopt advanced electronic controlling jacquard, which can operate stably for years. Modules and electro controlling plate adopt separated mode, which can be easily maintained. Thanks to the our advanced computer design techniques and auto oil-feeding device, and also reasonable structure, it is easy to operate and maintain this machine even for a new hand.
2. Technical Advantages
Due to the advanced auto stop devices, reasons of abnormal breakdown can be found out from the situation mentioned above and solved directly. In this case, no operation of the machine is allowed without finding out and solving the problems. There are four stop devices as follow:
- Warp yarn broken stop device: Needle loom will automatically stop once a dropper fall onto the bar due to the break of the warp yarn.
- Base yarn broken stop device: Loom will stop when the base spring touching the stop bar due to the break of base yarn while weaving with base yarn. The base yarn spring and stop bar need to be operated when no base yarn is being used.
- Weft yarn broken stop device: The machine will automatically stop when weft spring touching the stop pole due to the break of weft yarn.
- Finished belt involved stop device: One jogging switch is set on the right side of the stop plate to avoid belts being involved into the take-off roller. The operation will be stopped when the switch broke away from the plate.
3.Specifications
Product Name | Ginyi Narrow Fabric Weaving Machine on Sale |
|
MODEL | GNC-8-45 | |
JACQUARD NEEDLES | 192/240/384 | |
BELT NUMBERS | 8 | |
REED WIDTH(mm) | 45 | |
HEALD FRAME | 8 | |
PICK REPEAT | 8-40 | |
H.P. MOTOR | 1.5 | |
MAX.SPEED R.P.M | 800-900 | |
Price Condition | FOB Xiamen | |
Packaging | 1set/wooden case | |
Delivery lead time | 15-25days | |
Minimum order | 1 set | |
Guarantee | 1 years |
More sizes of Ginyi Narrow Fabric Weaving Machine on Sale
MODEL | GNC-10/30 | GNC-8/45 | GNC-8/30 | GNC-6/55 | GNC-6/45 | GNC-4/65 | GNC-4/80 |
JACQUARD NEEDLES | 64/128/192/240 | 192/240/384 | 192/240 | 192/240/384/480 | 192/240/384 | 192/240/384/480 | 240/480/640 |
BELT NUMBERS | 10 | 8 | 8 | 6 | 6 | 4 | 4 |
REED WIDTH | 30 | 45 | 30 | 55 | 45 | 65 | 80 |
HEALD FRAME | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
PICK REPEAT | 8-40 | 8-40 | 8-40 | 8-40 | 8-40 | 8-40 | 8-40 |
H.P. MOTOR | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
MAX.SPEED R.P.M | 800-900 | 800-900 | 800-900 | 800-900 | 750-850 | 750-850 | 750-850 |
4. Mainly Application
Making different kinds of PP webbing, Underwear Elastic, Jacquard Belt, Bra Strap, Sofa Webbing, etc., applied to accessories of garment , seat belt, bags, luggage case, home textile and so on. The following are some products of our jacquard machine for your reference.
If you need more details from us, please feel free to contact us. Your inquiry will be highly appreciated here.
