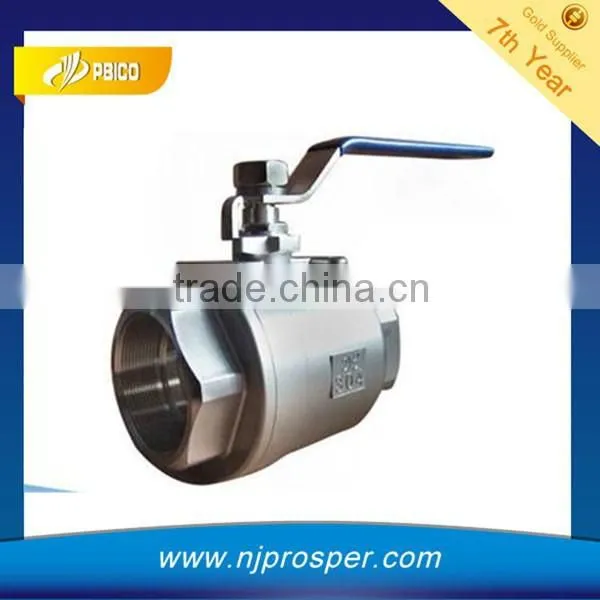

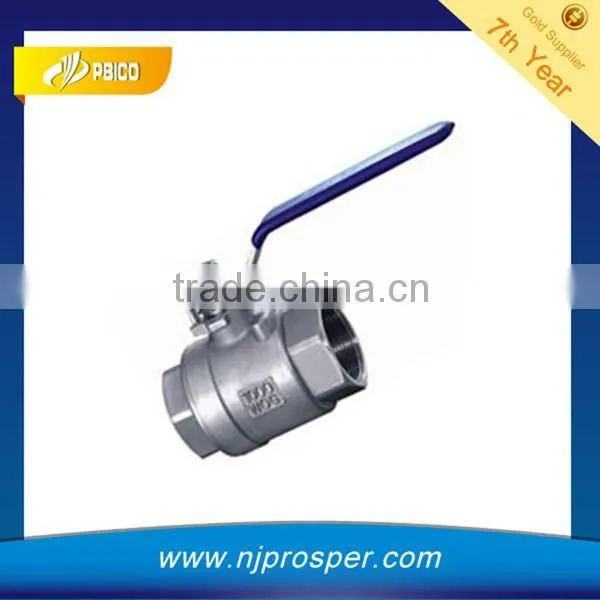

Stainless steel male female thread end ball valve
Products Details
1. Product Type: ball valves
2. Executive Standard: American Standard (API), German standard (DIN), International Standard
(ISO), GB (GB), British standard (BS), etc.;
3. Material: WCB (A105), LCB (LF2), C5 (F5), WC6 (F11), WC9 (F22), CF8 (F304), CF8M (F316),
4.A (F51), 5A (F53), 6A (F55), CK3MCUN (F44), MONEL, INCONEL (625,825), 20 alloy,
aluminum bronze (B148 C95500, C95400), etc.;
4. Nominal diameter: 1 / 2 "--- 56" (DN15-DN1400);
5. Nominal pressure: CLASS 150---CLASS 2500 (PN16-PN420),
6. Operating temperature: -196 °C --- 650 °C;
7. Uses: petroleum, natural gas, oil refining, chemical, power plants, ships and other conditions,
Founder of the company's operating criteria: integrity first, customer-oriented.
8. Body Processing: Investment casting and Sand Casting
9. Minimum order: 10PCS
10. Market: Japan, UK, German, Holland, France, Italy, Spain, Pakistan, Brazil, UAE, Canada, Malaysia, Korea and so on.
Structure Features
Fully welded construction
Designed in conformity with API Spec.6D
Floating mounted, self-centering seating ring systems with pre-tensioned spring elements
Trunnion-mounted ball plugs
Low torques
Maintenance-free sealing and mounting systems
Strength of seal determined by the pressure in the line double block and bleed
Single piston design (SPE) with self-relieving seating rings
Optional double piston design (DPE)
Optional sealing system PMSS
Dual and single adjustable trunnion seal
Secondary injection of sealant
Blow-out protection at trunnions
Drain and vent connections
No build-up of electrostatic charge
Optional stem extension
Fireproofed in conformity with 6FA and BS6755
Design Features:
All-welded body structure of the ball low body weight, their ideal body can handle the ball higher pressure and bending moment.
Able to withstand the high internal and external pressures. Choose different material combinations to ensure that the valve be reliable corrosive situations, such as acidic gases.
Use:
With the characteristic of quick switch, small flow resistance, small weight and reliable sealing, the full-welded pipeline ball valve has been the No.1 choice of the controlling part used in transportation, sub-station circulation pipeline and device connection, inverted port and cleaning equipment and so on
