Home > Products > Vehicle CCTV MDVR > Best sell 64GB SD Card 4chs hd cctv dvr security system kit Built-in WIFI

Best sell 64GB SD Card 4chs hd cctv dvr security system kit Built-in WIFI

FOB Price

USD $50 - $340 / Piece

10 Pieces(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

SDM

Model Number:

SDM619

Product Description

Best sell 64GB SD Card 4chs hd cctv dvr security system kit Built-in WIFI

Main Feature

Product feature of 4chs hd cctv dvr security system kit:

1) 4CH, Support 4 cameras

2) H.264 compression format

3)64GB SD Card

4) 2.5“ SATA 1TB Hard disk

5) GPS tracking

6) 3G remote control

7) Built-in WIFI for option

8) 6 alarm input, 1 alarm output

9) 2 way intercom

10)Remote oil&power cut-off

11)Mirror recording in SD card

12)Patent UPS continuously working to protect data upon sudden power-off

13)Customized GPS data format sending(optional)

14)Built-in Heater(optional)

15)Lockable, metal HDD handle, protect HDD efficiently

16)Watermark and Time/Date stamp in exported images

Data Sheet

Description of 4chs hd cctv dvr security system kit:

Item		Description
OS		Linux
Graphics Operation Interface		System parameters can be set through external display and remote controller
Security Management		2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Input	4-channel video input
	Output	1channel video output; 1.0Vp-p, 75Ω
	OSD	Character superposition function, information superposition of time and date, device ID &GPS, etc.
	Compression	H.264. Hisilicon hi-performance processor.
	Dual-Stream	Supported
	Display	1/4/6/8/9/16/25/36/100 channels
	Frame Rate	PAL: 100FPS, up to 25FPS/CH; NTSC: 120 FPS, up to 30 FPS/CH
	Resolution	CIF, HD1 &D1 for option, supporting 2CH D1+ 2CHCIF
	Quality	Grade 1~ grade 5 for option
Audio	Input&Output	4CHl input, 1CH output
	Compression	G726 coding
Recording	Storage	1PC 2.5”HDD max 1TB&1PC Max 64GB SD card for mirror recording, supporting cycle recording.
	File System	ASF/FAT32
	Video Strategies	Recording at startup by default, support timed recording, recording triggered by alarm and manual recording
	Video Search	by time, type, storage device and other conditions
Alarm	Input/ Output	6-CH on/off signal alarm input, 1-CH on/off alarm output
	Alarm Recording	Prerecording function 15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min
	Storage Space Alarm	Supporting alarm for storage space
Interface		RS232/485, RJ45
Network	WIFI	Embedded Wi-Fi module;
	GPS	Support external GPS
	3G	WCDMA/EVDO
PTZ Control		Support PTZ control realized by local
G-Sensor		Embedded
Power	Power Supply	1. ACC on/off2. Hard drive lock on/off3. Delayed shutdown 4. Timed on/off
	Input Voltage	DC:+8V ~ +36V
	Output Voltage	+12V 4*0.5A; +5V 0.5A
	Power-off Protection	With patented UPS power supply technology for 3~5S recording upon sudden power cut to ensure video data safety
	Power Consumption	<10W in normal operation; <0.5W in standby mode

Product show

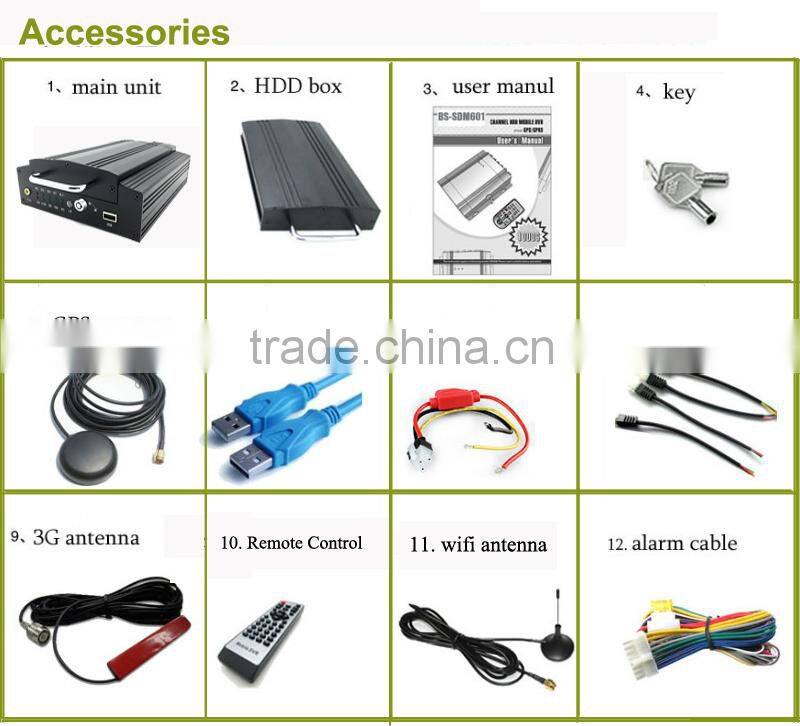

Pictures of 4chs hd cctv dvr security system kit:

Clients&Platform

Installation Diagram

Camera Options

Production Assembly

FAQ

1)The server software is free? What are the system requirements to use this software?

Yes, it is free of charge.For server setup, you need to buy a static IP adress from your local network provider, and then the computer should

be with good performance (HDD capacity should be above 500GB, Memory above 4G, CPU above 2G, with dual core,

Network interface should be 100 Mega or 1000 mega.

2What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download

software be placed on the same system?

RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same

system. In fact, our current software are all based on windows system(only Clients is with android system)

3) When we start using your server and after some time we build our own,can the IP address in the

units be changed remote or do we do this by wire?

If you build your own server, then you could change the DVR local settings by manual. After you used your own server,

then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.

4chs hd cctv dvr security system kit
