Specifications
Docan wooden printer( uv printer )we have got CE certificate and CCC certificate.
welcome to offer any material for test

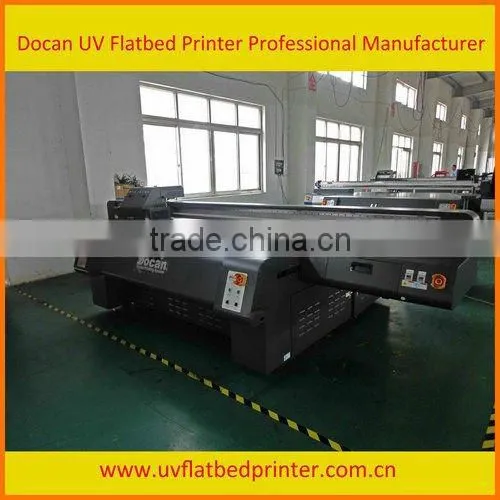

Docan wooden printer( uv printer )
Company Profile
Thanks for your inquiring our UV printers!
Shanghai DOCAN technology is professional UV flatbed printer leaders in China .
Established in 2005, now our products have been exported to more than 30 countries, suchas:USA,Brazil,Mexico,Chile,UK,Spain,Finland,Portugal,Italy,Czech,Turke,Russia,Poland,Ukraine,Monglia,India,Philippines,Indonesia etc. Welcome your RFQ so that we can give you a specific introduction to help you find your desired modes.
Application material:
Printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, canvas, cloth, carpet, sticky note, reflective film, leather etc.
Application Areas:
Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.
Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.
We can provide the printer with excellent performance & competitive price. You will enjoy our one-stop service.
UV ink advantage:
Its instant dry feature that leaves the graphic completely cured. It is not easu to clog the print head
UV ink boasts fewer emissions than solvent inks which is more environmental friendly.
UV Ink Features
Ink Type: It's UV curing ink, environment-friendly ink.
Characteristics: water-proof, anti-uv, heat-resistance.
Printing samples life: 3 years outdoor, and 10 years indoor.
Ink Brand: Belgium AGFA
Can print on flexible material and rigid material
Machine Highlights:
Higher Speed Plus Higher Resolution:
Konica print head with 1024-14PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi)
Double circulation for white color
One small circulation is the circulation within the ink bottle. when the head cartridge stop, the circulation starts. The pump starts to stir the ink bottle.
One big circulation is the circulation from the ink sub tank to the ink bottle
Beside this , there will be automatic frequency flush on the print head set by the software.
In this way, the white clot on the print head can be get rid of .
Solid Mechanical machine structures
The X axial guide rail is imported from JAPAN THK and taiwan PMI . which is more stable than the belt transmission to prevent of the belt will get loose after half years usage. The Y axial we use double screw pole for transmission.
Material Automatic height testing function
The machine can test the material height automatically.
Print head protection system
Print head anti-crash system can protect the print head by stopping the head cartridge in case of print head crash.
All the model we have:
The maximum media thickness can up to 100mm.
The printing size of our machine is
UV2512 2.44*1.22m
UV2510 2.5m width , length is unlimited / roll to roll
M6 2.5*1.2m
M8 2.5*1.8m
M10 2.05*3.2m
Our company contact info:
Tel: +86-15000703327
Skype: chaser_guy
URL :
aluminum plastic panel printers, acrylic printers, art ceiling printers, glass printers, door printers, canvas printers, ceramic printers, metal printers, leather printers, wallpaper printers, and more.
These wide format printers are widely used in the glass, advertising, clothing, leather, and many other industries.
2. UV ink from UK sunjet or Japan Toyo ink (import ink and environment protection)
3. Motor server & electricity use Japan Panasonic
4. UV lamp from UK PRIMAC. use uv light cure uv ink printing on material surface.
5. Vacuum or up-down wheel tables
6. Printing size have 2 x 3m and 2.5 x 1.8m ,1.5m x 2.5m
7. Print heads number from 4 to 16 heads
8. Max printing speed is 60sq.m/h(16 heads)
9. Printing colors, C M Y K 4 colors or C M Y K LC LM 6 colors, additional have white color
10. Printing material thickness is up to 5 cm.
11. the printing material can be as glass,aluminum,acrylic,metal, MDF,wood,pvc ,leather,tile,etc all sheet material
12. the printing life span, for indoor 10 years. for outdoor 5 years warranty.
13. RIP software ,we use the updated photoprint 6.0 ,usb dongle.
14. printer control software is docan printer control software,developed by docan company.
have English and Chinese two version.
15. Printing picture format requirements, TIFF, JPEG,Postscript 3,EPS and PDF
16. Printing colors controls,ICC based colors, adjustment curves,density adjustment,
17. Printing resolutions, 360 dpi x 360 dpi, 360 dpi x 720 dpi,720dpi x 360 dpi, 720 dpi x 720 dpi, 720 dpi x 1440 dpi, 1440 dpi x 1440 dpi.
18. Printing speed example for 4 heads 4 color( C M Y K ) speed,
In draft mode up than 28 sq.m /hour , In standard mode higher than 18 sq.m/hour
In high resolution mode up than 11 sq.m/hour , In super resolution mode is 6 sq.m/hour
19. For printing 1 sq.m with 4 color full printing the ink consume is 10 ml, the price of ink for
1 sq.m is $1/sq.m
The uv flatbed printer delivery time and warranty,install and training.
1. The uv flatbed printer delivery time is 7 working days after received the deposit payment.
2. The uv flatbed printer warranty is 1 year,except the printhead, ink filter,ink pump was not in warranty.
3. The install we can send technical engineer to customer workshop to install the uv printer.
4. The training and the install at the same time,it can be finished in 4 days.
| TECHNICAL DATA SHEET: | |
| Model: | M6 |
| Print Technology: | Drop-on-demand Piezo Electric |
| Printhead Type: | JAPAN KM1024MHB-14PL |
| Printhead No.: | CMYK+LC+LM+WHITE(7Printhead) |
| Printhead Controls: | Print head temperature & voltage are adjustable by software |
| Printing Size: | 244cm x 122cm |
| Ink Characteristics: | UV curing ink |
| Ink Reservoir: | Refillable on the fly while printing/1000ml |
| Loating Mode: | Resto/Servo |
| RIP Software: | Photoprint10 |
| File Format: | TIFF, JPEG, Postscript 3, EPS, PDF, and so on. |
| Resolution: | 360 dpi x 360 dpi 360 dpi x 720 dpi |
| 720 dpi x 360 dpi 720 dpi x 720 dpi | |
| 720 dpi x 1440 dpi 1440 dpi x 1440 dpi | |
| Printing Speed: | In draft mode up than 60sq.m |
| In standard mode up than 30sq.m | |
| In high resolution mode up than 15sq.m | |
| Ink Type: | UV curing ink |
| Ink Color: | CMYK+LC+LM+WHITE(7colors) |
| Printing Materials: | Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating System: | Standard (Front heater, Rear heater, Fan) |
| Color Retains: | Outdoor 2 years, indoor 10 years |
| Color Management: | ICC based color, adjustment curves, density adjustment |
| Power Supply: | AC220V 50/60HZ (10%) 16A |
| Working Conditions: | Temperature 20-28 degrees, Humidity 40% - 60% |
| Dimensions: | 4.65m*2.2m*1.58m |
| Weight: | 1580kgs |
| Packing: | Packed by solid wooden carton. |
| Trade terms: | FOB Shanghai |
| payment terms | T/T30%deposit,70%balance before shipment |
