12 print head fast speed digital wood printing machine

Specifications

12 print head fast speed digital wood printing machine
1./ 2 groups of printe head
2 fast speed

12 print head fast speed digital wood printing machine



Company Profile



Thanks for your inquiring our UV printers!

Shanghai DOCAN technology is professional UV flatbed printer leaders in China .

Established in 2005, now our products have been exported to more than 30 countries, suchas:USA,Brazil,Mexico,Chile,UK,Spain,Finland,Portugal,Italy,Czech,Turke,Russia,Poland,Ukraine,Monglia,India,Philippines,Indonesia etc. Welcome your RFQ so that we can give you a specific introduction to help you find your desired modes.







Application material:



Printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, canvas, cloth, carpet, sticky note, reflective film, leather etc.







Application Areas:



Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.



Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.



We can provide the printer with excellent performance & competitive price. You will enjoy our one-stop service.







UV ink advantage:



Its instant dry feature that leaves the graphic completely cured. It is not easu to clog the print head



UV ink boasts fewer emissions than solvent inks which is more environmental friendly.











UV Ink Features



Ink Type: It's UV curing ink, environment-friendly ink.



Characteristics: water-proof, anti-uv, heat-resistance.



Printing samples life: 3 years outdoor, and 10 years indoor.



Ink Brand: Belgium AGFA



Can print on flexible material and rigid material







Machine Highlights:







Higher Speed Plus Higher Resolution:
Konica print head with 1024-14PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi)







Double circulation for white color



One small circulation is the circulation within the ink bottle. when the head cartridge stop, the circulation starts. The pump starts to stir the ink bottle.



One big circulation is the circulation from the ink sub tank to the ink bottle



Beside this , there will be automatic frequency flush on the print head set by the software.



In this way, the white clot on the print head can be get rid of .







Solid Mechanical machine structures
The X axial guide rail is imported from JAPAN THK and taiwan PMI . which is more stable than the belt transmission to prevent of the belt will get loose after half years usage. The Y axial we use double screw pole for transmission.







Material Automatic height testing function



The machine can test the material height automatically.







Print head protection system



Print head anti-crash system can protect the print head by stopping the head cartridge in case of print head crash.







All the model we have:



The maximum media thickness can up to 100mm.



The printing size of our machine is



UV2512 2.44*1.22m



UV2510 2.5m width , length is unlimited / roll to roll



M6 2.5*1.2m



M8 2.5*1.8m



M10 2.05*3.2m







Our company contact info:

Skype: joyceliangdocan

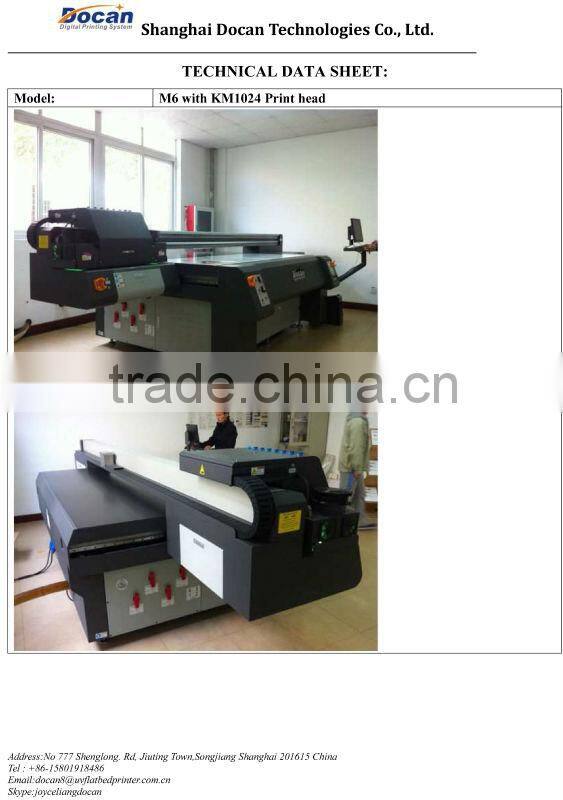

TECHNICAL DATA SHEET:
Model:	M6

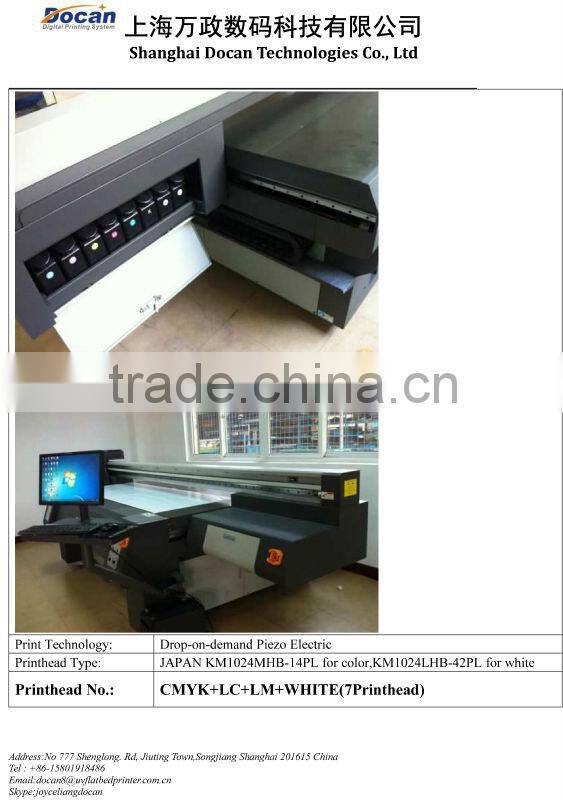

Print Technology:	Drop-on-demand Piezo   Electric
Printhead Type:	JAPAN KM1024MHB-14PL
Printhead No.:	CMYK+LC+LM+WHITE(7Printhead)
Printhead Controls:	Print head   temperature & voltage are adjustable by software
Printing Size:	244cm x 122cm
Ink Characteristics:	UV curing ink
Ink Reservoir:	Refillable on the fly   while printing/1000ml
Loating Mode:	Resto/Servo
RIP Software:	Photoprint10
File Format:	TIFF, JPEG,   Postscript 3, EPS, PDF, and so on.
Resolution:	360 dpi x 360   dpi     360 dpi x 720 dpi
	720 dpi x 360   dpi     720 dpi x 720 dpi
	720 dpi x 1440   dpi     1440 dpi x 1440 dpi
Printing Speed:	In draft mode up than 60sq.m
	In standard mode up than 30sq.m
	In high resolution mode up than 15sq.m
Ink Type:	UV curing ink
Ink Color:	CMYK+LC+LM+WHITE(7colors)
Printing   Materials:	Glass,   ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl   sheets, KD board, Plexiglas, foam board & flexible media like wall paper,   glistening film, canvas, carpet, leather, paper sheets, etc.
Heating System:	Standard (Front   heater, Rear heater, Fan)
Color Retains:	Outdoor 2 years,   indoor 10 years
Color   Management:	ICC based color,   adjustment curves, density adjustment
Power Supply:	AC220V 50/60HZ (10%) 16A
Working Conditions:	Temperature 20-28   degrees, Humidity 40% - 60%
Dimensions:	4.65m*2.2m*1.58m
Weight:	1580kgs
Packing:	Packed by solid   wooden carton.
Trade terms:	FOB Shanghai
payment terms	T/T30%deposit,70%balance   before shipment
