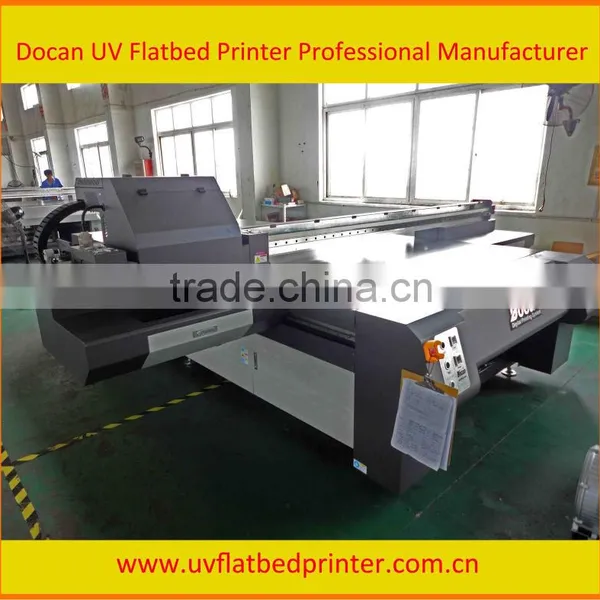

High resolution digital flatbed wood/acrylic/mdf/metal/furniture inkjet uv printer
Docan series uv flatbed printers are the large format,UV-curable inkjet printer with versatility to print on numerous uncoated substrates including corrugated plastics,acrylics and uneven or irregular materials.With a maximum resolution of 720*1440dpi,Docan series are suitable for Sign and POP display graphics for both long and close viewing distances.Using the standard white ink,Docan series can print brght,vibrant color even on transparent and coloured media.With the newly developed clear liquid,you can achieve a high-gloss finish while also improving color-fastness.Docan series are equiped UV lamps,enabling high speed,bidirectional printing.It is a dynamic printer with functions to maximize true flatbed platform advantages.We are pleased to add the new capabilities of flatbed printers to the large format graphics field.
The highest resolution of 1,200dpi and the variable dot technology (7 different dot sizes) realize near photographic image quality.
Even 4-color mode realizes a non-grainy print. With a minimum dot size of 6pl.,sharp edges of small texts and smooth skin tones can be created.
With UV technology,the inks are cured
(dried) on the printer.
Prints can be made on uncoated substrates and
the prints can be handled immediately.
| General info | Model | Docan M8 |
| Print technology | Drop-on-demand Piezo Electric | |
| Working platform | Vacuum or up-down wheels table | |
| Printhead type | KM1024-14PL | |
| Printhead No. | 4/5/6/7/8/10/12/15/16 | |
| Printhead control | Print head temperature & voltage are adjustable by software | |
| Printing size | 2.5*1.8m | |
| Media thickness | 1-100mm | |
| Ink reservoir | Refillable on the fly while printing/1000ml | |
| loating mode | Resto/Servo | |
| Drying system | UV lamp | |
| RIP software | Photoprint/ONYX/Caldera | |
| File format | TIFF, JPEG, Postscript 3, EPS and PDF | |
| Resolution | 360dpi*360dpi 360dpi*720dpi | |
| 720dpi*360dpi 720dpi*720dpi | ||
| 720dpi*1440dpi 1440dpi*1440dpi | ||
| Printing speed | In draft mode up than 58 sq.m ( 8 heads ) | |
| In standard mode up than 42 sq.m ( 8 heads ) | ||
| In high resolution mode up than 34 sq.m ( 8 heads ) | ||
| Ink | Ink type | UV curing ink |
| Printing color | CMYK, LC, LM, W,Varnish(4,5,6,7, double 4 colors) | |
| Printing Asistant System | Printing media | Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating system | Standard(Front heater,rear heater,fan) | |
| Color retains | Outdoor:2 years indoor:7 years | |
| Color management | ICC international standard, adjustment curves, density adjustment | |
| Printer info | Power supply | AC220V-240V 50/60HZ (10%) >30A |
| Working conditions | Temperature 20-28°C | |
| Humidity 40% - 60% | ||
| Warranty period | One year | |
| Dimension | 4.63*2.56*1.47m | |
| Weight | 1870kg | |
| Packing details | Outside packing : Packed by solid wooden carton | |
| Inner packing: sealed with anti-rain & rust plastic bubble film | ||
