Specifications
UV flatbed & roll 2 roll printer1. print on both flat and roll material
3. Fast printing speed, high printing quality
3. CE
UV flatbed & roll 2 roll printer , roll printer, flated & roll printer
Detailed Product Description

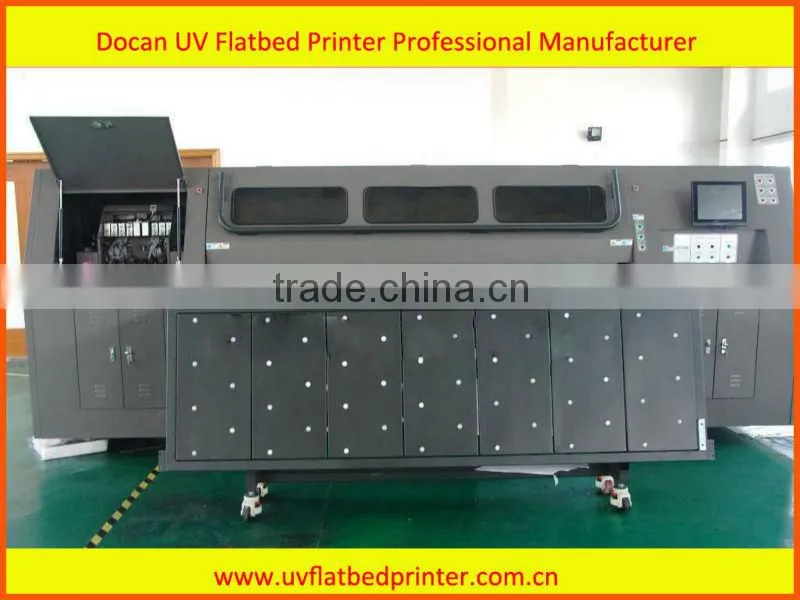

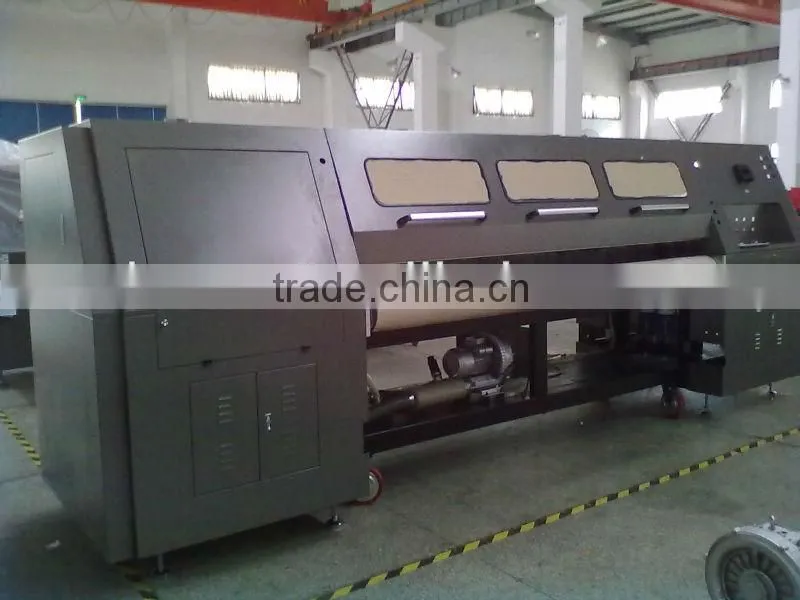

Docan UV2510 flat bed uv curable printer with Konica- 1024head, supporting you high speed and resolution of printing
Docan UV2510 flat bed uv curable printer adpots Japan Konica 1024-14PL head
Specification of uv flat bed printer
1) UV Inkjet Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi
4) C,M,Y,K or C,M,Y,K,LC,LM + White colors
5) CE Certificate
Perfect quality along with competitive price
Since we are a few manufacturers of UV flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.
Higher speed plus higher resolution
Konica printhead with 1024-14PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi
Ideal Transmission System
USB optical transmission, interference, to avoid printing garbage.
More application
Application areas includs:Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, etc.
Printed materials could be:Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, and so on.
Printing method |
Continuous ink supply/capacity 1000ml |
Characteristics of ink |
UV curing ink |
Print head control |
Software adjust the temperature and voltage of print head |
Material handing |
Roll to roll various sheets |
Dry system |
UV lamp |
Rip software |
Photoprint10 Version(Windows2000,Windows XP Pro SP2) |
Color control |
In accordance with ICC standard, with the functions of curve and density adjustment |
File format |
TIFF, JPEG, Postscript3, EPS, PDF, etc |
Power supply |
50Hz/60Hz, 200V-240V, Maximum30Amp |
Working environment |
Optimum temperature18-30C, relative humidity 40-70% |
Warranty |
One year |
Mode |
UV2510 |
Print head |
Konica Minolta print head (KM1024-14pl/ 42pl ) |
Quantities of print head |
5/6/7/8/10/12pcs |
Color |
4 color( C M Y K ), or 6 color (C M Y K Lc Lm) , white optional. |
|
Resolution |
360dpi*360dpi 360dpi*720dpi |
720dpi*360dpi 720dpi*720dpi | |
720dpi*1440dpi 1440dpi*1440dpi | |
|
Printing speed |
In draft mode up than 60 sq.m/hr ( 8 heads) |
In standard mode up than 38 sq.m/hr ( 8 heads) | |
In high resolution mode up than 24 sq.m/hr ( 8 heads) | |
Width of media |
250cm |
Print width |
250cm |
Max thickness of media |
60mm |
|
Media Type |
Corrugated board ,bubble board, foaming board, PVC, ceramic tile, glass, acrylic, wood, metal, paper, flex banner, mesh fabric, adhesive vinyl, wall paper, leather, etc. |
Outdoor durability |
3 years(use DOCAN ink) |
Size of Equipment |
4.89 *2.89*1.81m |
Weight of Equipment |
3125kg |
