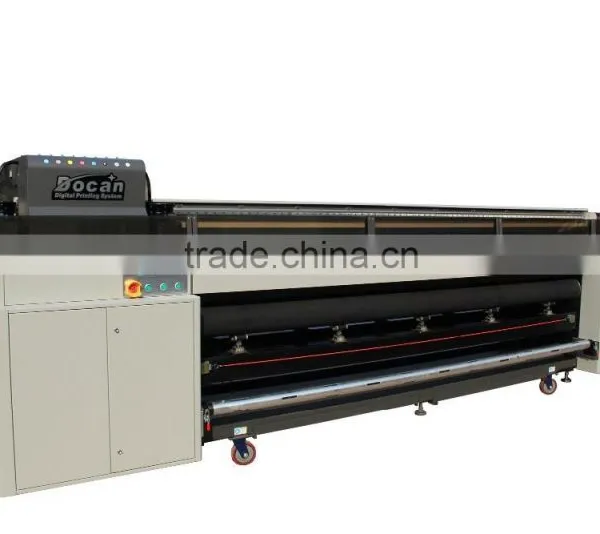

Features of Roll to roll printer FR3300
1) perfect quality along with competitive Price
We are a manufacturer of UV flatbed printer and own factory in Shanghai city, China. We produce China best quality, and support customers with attractive and cometitive price.
2) high speed + high resolution
Konica 512-14PL/42PL head adopted. The printing speed can up to 28 sq.m/h by 8 pass with max 1440 dpi * 1440 dpi of resolution.
3) uv lamp drying System
Uv lamp installed on our uv printer machine guarantees your printing art dry immediately, so that improves your productivity.
4) more application for clients
printed media: 1) all flat rigid substrate (glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, etc.) 2) flexible media (wall paper, glistening film, canvas, carpet, leather, paper sheets...) 3) material in roll
Used in: decoration industry, glass industry, sign industry, exhibition industry, leather textile printing industry, etc.
Model |
R3300 |
Print Technology |
Drop-on-demand Piezo Electic inkjet |
Print head type |
Konica KM-512MH-14PL /Konica KM-1024MHB-14PL/Ricoh Gen5 |
Print head controls |
Print head temperature and voltage are software adjustable |
Ink Characteristics |
UV curing ink |
Ink Reservoir |
Refillable on the fly while printing/ 2000ml |
Drying system |
UV lamp |
Rip software |
Photoprint/ Onyx/ Caldrea |
Color Management |
Icc Based Color, Curves Adjustment, Density Adjustment |
File Format |
Tiff, Jpeg, Postscript 3, Eps and Pdf |
Power supply |
50/60hz 220v ( 10%) >30A |
Operation Environment |
Temperature 20°C to 28°C degrees |
Humidity |
40% to 60% |
Printing Size |
3.2m*unlimited |
Media thickness |
unlimited |
Nozzle Number |
4/5/6/7/8/10/12/15/16pcs |
Resolution |
720 dpi x 720 dpi 600 dpi x 600 dpi |
720 dpi x 1080 dpi 600 dpi x 900 dpi | |
720 dpi x 1440 dpi | |
Printing speed |
4 pass 28 sqm per hour(Ronica printhead) 4 pass 40 sqm per hour(Ricoh printhead) |
6 pass 19 sqm per hour(Ronica printhead) 6 pass 28 sqm per hour(Ricoh printhead) | |
8 pass 15 sqm per hour(Ronica printhead) | |
Colors |
4 colors(C M Y K) or 6 colors(C M Y K Lc Lm). White & varnish can be optional |
Color retains |
Outdoor 3 years, indoor 10 years |
Dimensions |
5.6*1.5*1.72m |
Weight |
3630KG |
