Specifications

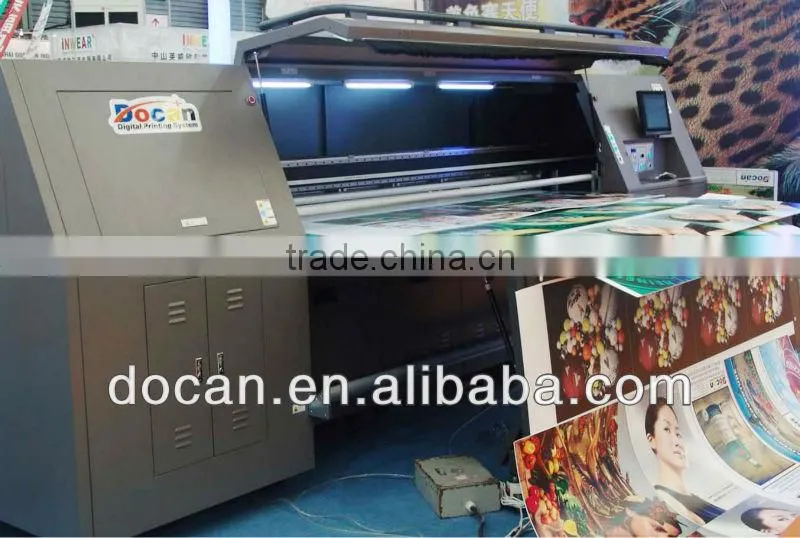

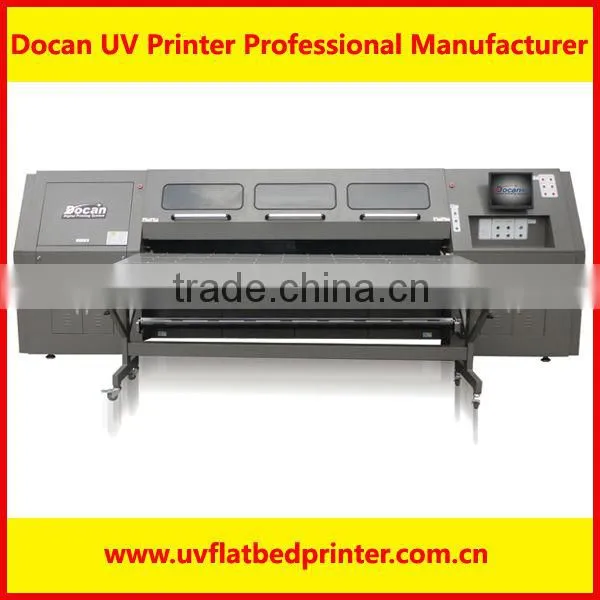

Docan digital uv hybrid printer with Konica 512-14PL/1024-14PL head, supplying multicolor, high speed and resolution.docan uv hybrid printer Konica-512 head/8 colors uv2510
Features of Docan uv hybrid printer
1) perfect quality along with competitive Price
We are a manufacturer of UV flatbed printer and own factory in Shanghai city, China. We produce China best quality, and support customers with attractive and cometitive price.
2) high speed + high resolution
Konica 512-14PL/42PL head adopted. The printing speed can up to 28 sq.m/h by 8 pass with max 1440 dpi * 1440 dpi of resolution.
3) uv lamp drying System
Uv lamp installed on our uv printer machine guarantees your printing art dry immediately, so that improves your productivity.
4) more application for clients
printed media: 1) all flat rigid substrate (glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, etc.) 2) flexible media (wall paper, glistening film, canvas, carpet, leather, paper sheets...) 3) material in roll
Used in: decoration industry, glass industry, sign industry, exhibition industry, leather textile printing industry, etc.
Technical parameter of flatbed printer
|
General Info |
Model |
UV2510 |
Print Technology |
Drop-on-demand Piezo Electric |
|
Printhead Type |
JAPAN Konica-512-14PL / KM-512-42PL |
|
Printhead No. |
4/5/6/7/8/10/12/15/16 pcs |
|
Printhead Controls |
Print head temperature & voltage are adjustable by software |
|
Printing Size |
2500mm wide x unlimited length |
|
Ink Characteristics |
UV curing ink |
|
Ink Reservoir |
Refillable on the fly while printing/1000ml |
|
Loating Mode |
Resto/Servo |
|
RIP Software |
Photoprint 10 |
|
Drying System |
UV lamp |
|
File Format |
TIFF, JPEG, Postscript 3, EPS and PDF |
|
Resolution |
360 dpi x 360 dpi 360 dpi x 720 dpi |
|
720 dpi x 360 dpi 720 dpi x 720 dpi | ||
720 dpi x 1440 dpi 1440 dpi x 1440 dpi | ||
Printing Speed |
In draft mode up than 28 sq.m ( 4 heads ) |
|
In standard mode up than 18 sq.m ( 4 heads ) | ||
In high resolution mode up than 11 sq.m ( 4 heads ) | ||
Ink |
Ink Type |
UV curing ink |
Ink Color |
4 colors (C, M, Y, K) - 7colors (C, M, Y, K, LC, LM + W) |
|
Printing Assistant System |
Printing Materials (1-50mm thickness) |
Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
Heating System |
Standard (Front heater, Rear heater, Fan) |
|
Color Retains |
Outdoor 5 years, indoor 10 years |
|
Color Management |
ICC based color, adjustment curves, density adjustment |
|
Printer profile |
Power Supply |
AC220V 50/60HZ (10%) Max. 30A |
Working Conditions |
Temperature 20-28 degrees, Humidity 30% - 70% |
|
Dimensions |
4890mm*1520mm*1810mm |
|
Weight |
3125 kgs |
|
Packing |
Outside packing : Packed by solid wooden carton |
|
Inner packing: sealed with anti-rain & rust plastic bubble film | ||
Shanghai Docan company supply you flatbed printer with good quality and competitive price.
