Mobile Charger

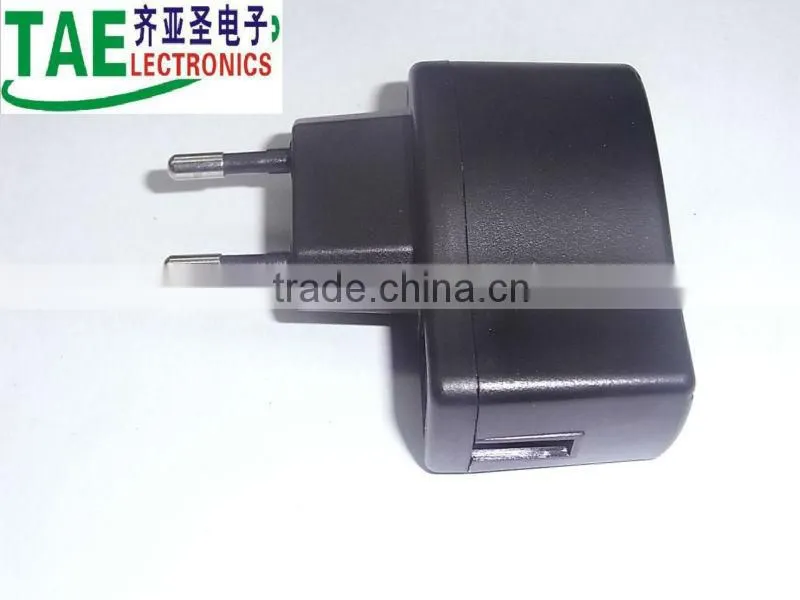

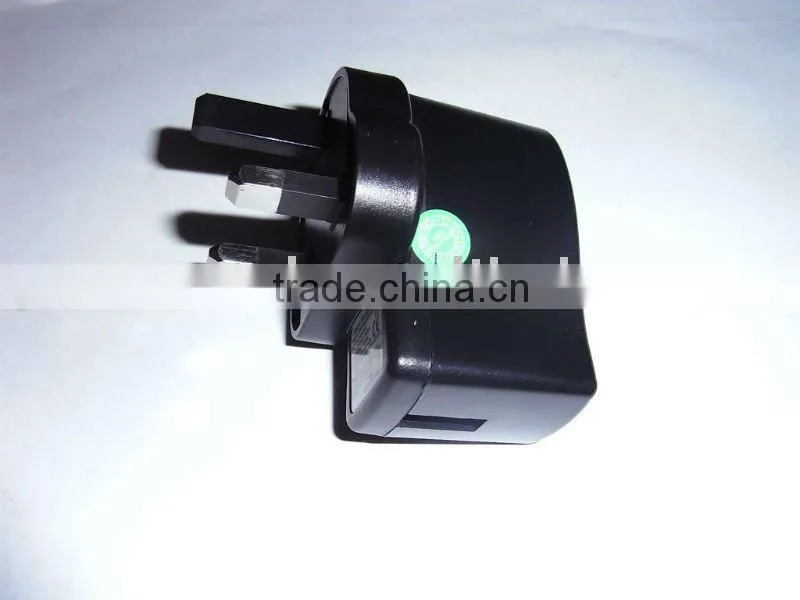

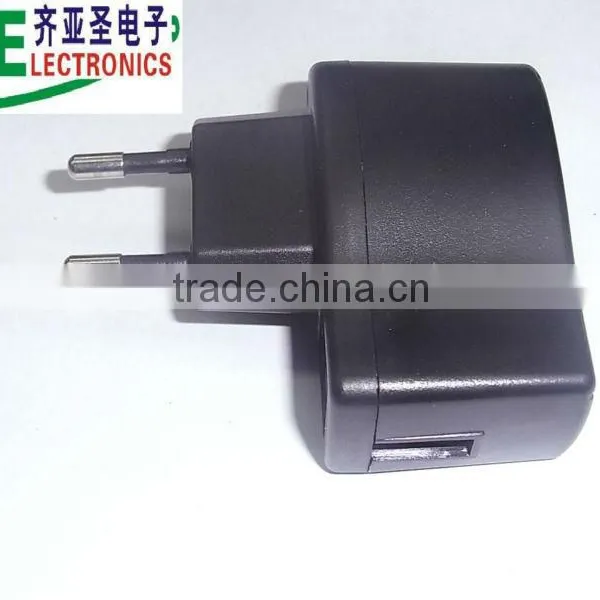

Name: Mobile Charger
Brand: power-tek
SKU: 111342993

US$ 1 - 2 MOQ: 500 Pieces

Key Specifications

Brand Name:

power-tek

Model Number:

SWPP

Use:

MP3 / MP4 Player

Shenzhen Top-Asia Electronics Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen & H.K

Delivery Detail:

Delivery time depends on order quantity.

Brand Name power-tek

Model Number SWPP

Use MP3 / MP4 Player

Type Electric

Place of Origin Guangdong, China

Specifications

USB Charger
Output Voltage 5-24V DC
Output Current 500-1000mA
Certificate GS UL PSE CCC KC CE
OCP/OVP Precise design

Measurement(L×W×H):	*6038.529mm*
Product Characteristics:	fixed frequency control circuit, apply to Communicating products, Digital and audio products, Energy-saving and environmental products, Massage equipments, Fitness equipment, Medical equipments and Household appliances.
Safety and Certification:	CCC/CE/UL/FCC/GS/BS/SAA/PSE etc Meet all related safety standard Ultra low no-load/standby power consumption, meet CEC V green power requirements
Output Protection:	Short circuit protection Over voltage protection Over current protection Over temperature protection
Electrical Characteristics:	Input voltage: 100-240VAC (90-264VAC) Input current: 0.7A max. Frequency: 50/60Hz (47-63Hz) Output voltage: 4.6-12V Output current: 0.1-1.0A No-load power consumption: 0.3W max. Efficiency: 80% min. Ripples & noises: 50-180mV Line regulation: ±1% Load regulation: ±5%
Reliability:	Hi-pot test: 3750VAC 60s 5mA max. Insulation resistance: 10M Ω min. Leakage current: 0.25mA max. Operating temperature: 0-40°C Storage humidity: 5-95%RH Burn-in test: Rate Load, 40±5°C, 4 hours EMC standard: EN55022 class B/FCC Part 15 class B EN55024/A1: 2001/EN61000
