Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Docan Large Format UV Glass Door Inkjet Printing Machine,ceramic Tile Digital Printer

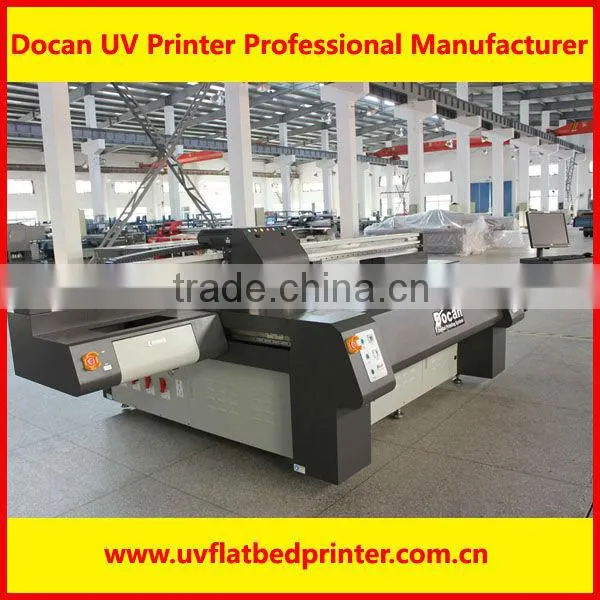

Docan Large Format UV Glass Door Inkjet Printing Machine,ceramic Tile Digital Printer
US$ 40,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Docan Wide Large Format Outdoor Printer M6, Digital Inkjet Printer for Sign IndustryUS$ 40,000 - 120,000MOQ: 1 Set -
Large Format Advertising Signage uv PrinterUS$ 50,000 - 100,000MOQ: 1 Set
-
uv Flatbed Plotter/uv Flatbed Printer Price/uv Flatbed PrintingUS$ 50,000 - 100,000MOQ: 1 Set
-
Banner Printing Machine/big Format Printer/billboard PrinterNegotiableMOQ: 1 Set
-
UV Flatbed Inkjet Sign and Graphic Large Format PrintersUS$ 50,000 - 100,000MOQ: 1 Set
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Shanghai, China
Brand Name
Docan
Model Number
M10
Usage
Other, uv rigid sheet printer
Automatic Grade
Automatic
Voltage
220 v
Gross Power
8 kw
Dimensions(L*W*H)
4.8m*3.93m*1.38m
Weight
2160kg
Certification
CE;ISO;CCC
After-sales Service Provided
Engineers available to service machinery overseas
| Model: | M10 |
| Print Technology: | Drop-on-demand Piezo Electric |
| Printhead Type: | KM512-14PL/KM1024-14PL/RICOH GEN5-7PL |
| Printhead No.: | 4/5/6/7/8/10/12/15/16pcs |
| Printhead Controls: | Print head temperature & voltage are adjustable by software |
| Printing Size: | 205cm x 320cm |
| Ink Characteristics: | UV curing ink |
| Ink Reservoir: | Refillable on the fly while printing/1000ml |
| Loating Mode: | Resto/Servo |
| RIP Software: | Photoprint10 /ONYX /Caldera |
| Drying System: | UK Integration uv lamp |
| File Format: | TIFF, JPEG, Postscript 3, EPS, PDF, and so on. |
| Resolution: | 360 dpi x 360 dpi 360 dpi x 720 dpi |
| 720 dpi x 360 dpi 720 dpi x 720 dpi | |
| 720 dpi x 1440 dpi 1440 dpi x 1440 dpi | |
| Printing Speed: | In draft mode up than 28 sq.m ( 4 heads ) |
| In standard mode up than 18 sq.m ( 4 heads ) | |
| In high resolution mode up than 11 sq.m ( 4 heads ) | |
| Ink Type: | UV curing ink |
| Ink Color: | 4 colors (C, M, Y, K) - 8 colors (C,M,Y,K,LC,LM+White+Varnish) |
| Printing Materials: | Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating System: | Standard (Front heater, Rear heater, Fan) |
| Color Retains: | Outdoor 2 years, indoor 10 years |
| Color Management: | ICC based color, adjustment curves, density adjustment |
| Power Supply: | AC220V 50/60HZ (10%) 16A |
| Working Conditions: | Temperature 20-28 degrees, Humidity 40% - 60% |
| Dimensions: | 4.8m*3.93m*1.38m |
| Weight: | 2160kgs |
| Packing: | Packed by solid wooden carton. |
Specification
1) UV Inkjet Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi
4) C,M,Y,K or C,M,Y,K,LC,LM + White colors
5) CE Certificate
More Application. Application areas includes: decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.
More Applications
Printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, canvas, cloth, carpet, sticky note, reflective film, leather etc.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
