Specifications
Docan M10 Large Format Printing Size with KM1024 print heads1.Konica M-1024 MHB- 14pl
2.Maximum resolution up to 1440dpi.

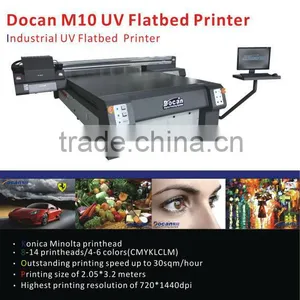

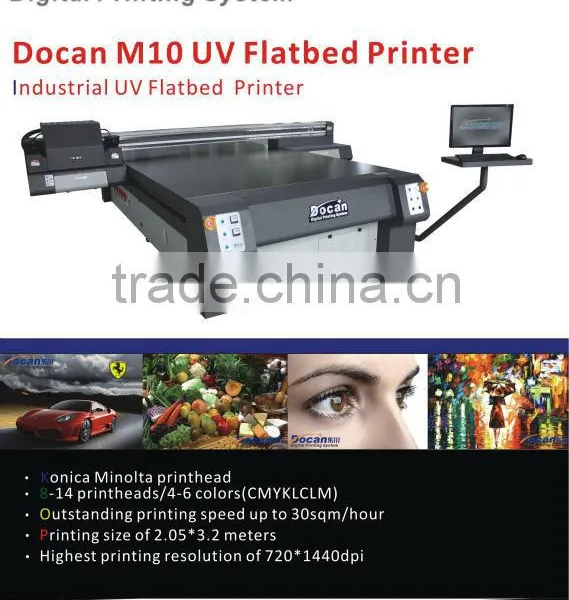

Docan M10 Large Format Printing Size with KM1024 print heads
UV Flatbed Printer
Features of Docan M10 Large Format Printing Size with KM1024 print heads
1. High quality UV Printer with competitive Price
We are professional manufacurer of UV Flatbed Printers for many years. We have a large UV Printer factory .
. We produce printing machinery with best quality, support customers with attractive and cometitive price.
2. High speed + high resolution
Konica M1024 MHB-14PL print head adopted. The printing speed can up to 58 sq.m/h .
3. UV lamp drying System
UVlamp installed on our UV flatbed printers machine guarantees your printing art dry immediately, so that improves your productivity.
4. More application by the uv flatbed printers
printed media: 1) all flat rigid substrate (glass, metal, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, etc.) 2) flexible media (wall paper, glistening film, canvas, carpet, leather, paper sheets...) 3) materials in roll to roll
Used in: decoration industry, glass industry, sign industry, exhibition industry, leather textile printing industry, etc.
| Model | M10 |
| Catagory | M series |
| Print Technology | Drop-on-demand Piezo Electic |
| Nozzle Technology | Piezoelectric Inkjet |
| Print head type | KM-1024-14PL |
| Print head controls | Print head temperature and voltage are software adjustable |
| Ink Characteristics | UV curing ink |
| Ink Reservoir | Refillable on the fly while printing/ 1000ml |
| Drying system | UV lamp |
| Rip software | Photoprint/ Onyx/ Caldrea |
| Color Management | Icc Based Color, Curves Adjustment, Density Adjustment |
| File Format | Tiff, Jpeg, Postscript 3, Eps and Pdf |
| Power supply | 50/60hz 220v ( 10%) >30A |
| Operation Environment | Temperature 20°C to 28°C degrees |
| Humidity | 40% to 60% |
| Product Model | Docan M10 |
| Printing Size | 2.05*3.2m |
| Media thickness | 1-100mm |
| Nozzle Number | 4/5/6/7/8/10/12/15/16pcs |
| Resolution | 360dpi*360dpi 360dpi*720dpi |
| 720dpi*360dpi 720dpi*720dpi | |
| 720dpi*1440dpi 1440dpi*1440dpi | |
| Printing speed | In Draft mode up than 28 sq.m/h |
| In Standard mode up than 20 sq.m/h | |
| In High resolution mode up than 15 sq.m/h | |
| In Super resolution mode up than 12 sq.m/h | |
| Colors | 4 colors(C M Y K) or 6 colors(C M Y K Lc Lm). White & varnish can be optional |
| Outdoor life | 2 years(use Docan ink) |
| Dimensions | 4.8*3.93*1.38m |
| Weight | 2160KG |
| Note: If double C M Y K, the printing speed will be double. |
