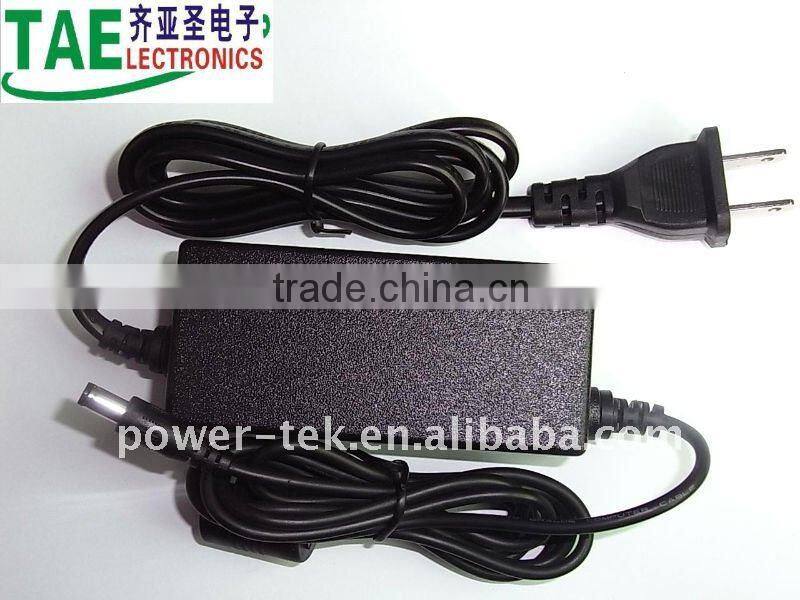

Competitive price 36W switching power adapter 12v 3amp

Name: Competitive price 36W switching power adapter 12v 3amp
Brand: Power tek, POWER-TEK
Price: Negotiable

FOB Price

Negotiable / Set

5000 Sets(Min.Order)

Supply Ability 15 Set / Sets per Month
Port FOB ShenZhen
Payment Terms:T/T PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Power tek, POWER-TEK	Model Number:	SWPP-12003000-EU, SWPP-12003000-EU
Output Type:	DC	Connection:	Desktop

Product Description

Specifications

switching power adapter
* Quality certification CCC,UL,UL,BS,GS,KC,PSE,SAA,CE
* SCP OVP OCP
* Energy efficiency level:IV

Competitive price 36W switching power adapter 12v 3amp:

1. Input: 100-240Vac 50-60HZ

2. Output voltage Available from 5-24V

3. Over Current Protection,Over Voltage Protection,Short Circuit Protection.

4. Class II Insulation (Double Insulation)
5. Certificate Approved: CCC,UL,cUL,BS,GS,KC,PSE,SAA,CE

Input Characteristics:

1:Input voltage

Rated Voltage AC 100-240V

2:Input Frequency

rated Frequency 50/60Hz

3 :Input Current

The maximum input current shall be less than 1.5A

4:Inrush Current

Peak inrush current shall be limited 45A within 10 ms at 230Vac( Cold Start).

5 :AC Leakage Current

The leakage current shall not exceed 0.25Aa

Output Charactristics:

1: I/P AC100-240V

2: O/P Frequency : 50-60Hz.

3: Voltage : DC 12V.

4: OP Rate: 5%.

5: Rated current OP: 4A

6: Ripple & Noise: 100mVp-p.

7: Efficiency: 73-95%.

8: Short circuit protection.

9: Overheating Protection.

10: Working temperature:0°C~+50°C.

11: Storage temperature: -20°C~+85°C.

12: Humidity: 10%-95%RH

Power adapter

Output :12V1.5A 24V1A12V2A 12V1.5A 15V1.5A 9V2A 5V2A

Quality certification CCC,UL,cUL,BS,GS,KC,PSE,SAA,CE etc.

Place of Origin : Guangdong, China (Mainland)

Port :FOBshenzhen

Packing: Poly Bag &Carton Box

1.Used quality safted components and purchased from famous supplier brand standard components, such as rectifier,MOSFET,capacitor,IC,transformer,inductance,fuse etc.

2.Meet EMC/EMI requirements.

3.Meet Rohs,SGS requirements.

4.Design laptop adapter electronics function and mechanism based on customer detail specification requirements.

5.Overall quality reliability test such as loading output,no-loading output,full load efficiency,noise data,short circuit protection,OCP,OVP,Hi-pot,Resistance,burning-in/aging,temperature shock,drop test,vibration test etc.

6.Load/no-load output tolerance:3%
