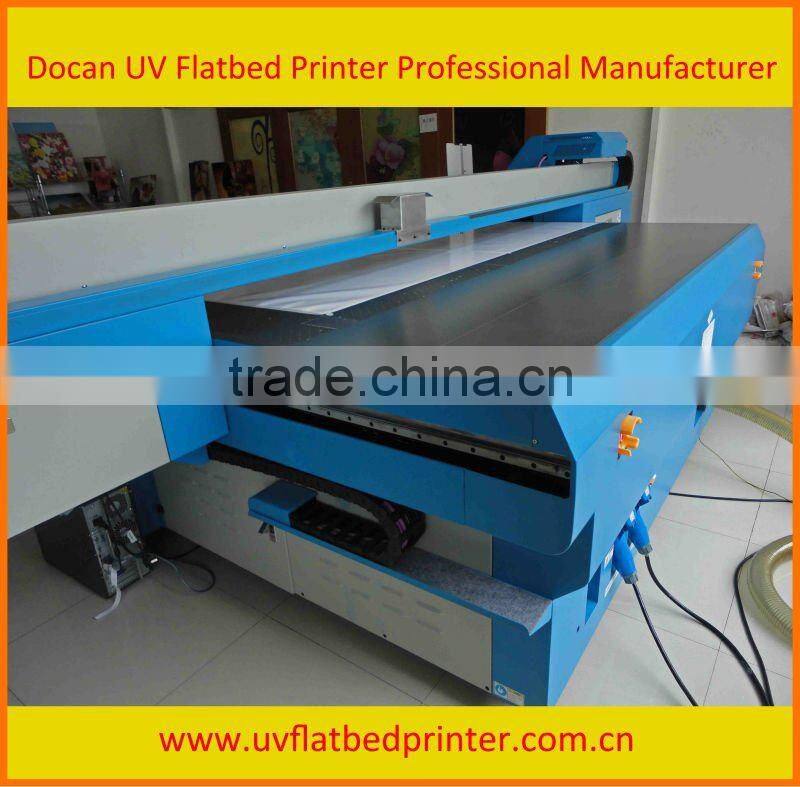

Art wood grain digital uv printing machine/uv inkjet printer
1.Price
----All of our products are directly originated from manufacturer.Our price is checked by China Bureau of Commodity Prices.
----We aim to produce high-end UV Flatbed Printer,welcome to bring samples to print when you visit China.
----We offer free training untill you know how to use it.
2.Shipment
----Our manufacturer is Shanghai,near China biggest port Shanghai Port and Ningbo Port,which can save a lot of time and transport fee.
----We have our own cooperated forwarder,will have 15% disaccount,it is supported by door to door delivery in some main ports.
----The machine HS code is 84433213,you can check your country's custom clearance fee.
If you have your own forwarder in China,we can offer free delivery in Shanghai city.
3.Payment
----30% TT deposit,balance at sght of B/L copy
4.Service
----24hours on-line service,professional overseas service technicians team.12months gold warranty.
UV Flatbed Printer Features
No plate-making, No film, fast printing, low cost, available for the output of various of software
Changing color directly by the computer, changing color whereever, need no extra effort.
Could meet hte requirements of fast getting the sample or products even in some seconds
Could print atunit price, printing in mass production, going with template matching, time saving
Full color photos, finish once, progressive solor could meet the image results of quality
Handled with fast, quality production, no need to get professtional skills
Computer operation, no need to depend on the stuff with a lot of upgrade space
| General info | Model | Docan M2 |
| Print technology | Drop-on-demand Piezo Electric | |
| Working platform | Vacuum or up-down wheels table | |
| Printhead type | KM1024-6PL | |
| Printhead No. | 4/5/6/7/8/10/12/15/16 | |
| Printhead control | Print head temperature & voltage are adjustable by software | |
| Printing size | 2.5*1.25m | |
| Media thickness | 1-100mm | |
| Ink reservoir | Refillable on the fly while printing/1000ml | |
| loating mode | Resto/Servo | |
| Drying system | UV lamp | |
| RIP software | Photoprint/ONYX/Caldera | |
| File format | TIFF, JPEG, Postscript 3, EPS and PDF | |
| Resolution | 360dpi*360dpi 360dpi*720dpi | |
| 720dpi*360dpi 720dpi*720dpi | ||
| 720dpi*1440dpi 1440dpi*1440dpi | ||
| Printing speed | In draft mode up than 30 sq.m ( 8 heads ) | |
| In standard mode up than 20 sq.m ( 8 heads ) | ||
| In high resolution mode up than 12 sq.m ( 8 heads ) | ||
| Ink | Ink type | UV curing ink |
| Printing color | CMYK, LC, LM, W,Varnish(4,5,6,7, double 4 colors) | |
| Printing Asistant System | Printing media | Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating system | Standard(Front heater,rear heater,fan) | |
| Color retains | Outdoor:2 years indoor:7 years | |
| Color management | ICC international standard, adjustment curves, density adjustment | |
| Printer info | Power supply | AC220V-240V 50/60HZ (10%) >30A |
| Working conditions | Temperature 20-28°C | |
| Humidity 40% - 60% | ||
| Warranty period | One year | |
| Dimension | 4.52*2.05*1.33m | |
| Weight | 1280kg | |
| Packing details | Outside packing : Packed by solid wooden carton | |
| Inner packing: sealed with anti-rain & rust plastic bubble film | ||
