Specifications
Digital wall mural uv printing machine/mural printing price1. Max printing size: 2.5*1.8m
2. Fast speed
3.High resolution

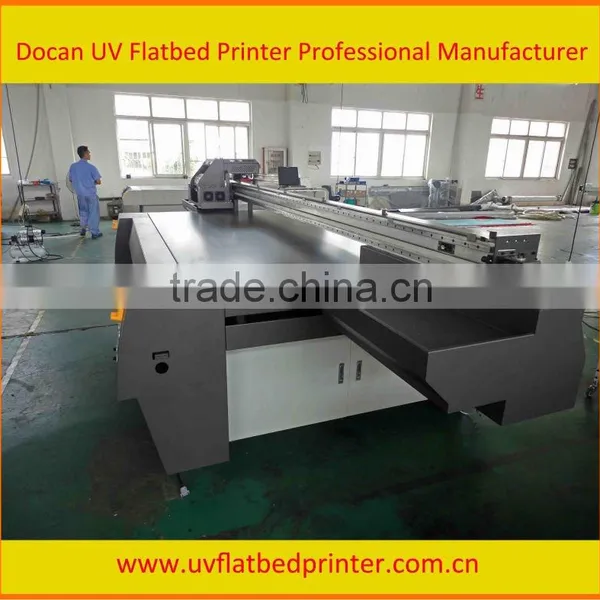

Digital wall mural uv printing machine/mural printing price
Vaccum table, 4-16 Konica print heads, original Toyo UV ink, fast printing and great performance
1. Automatic media thickness checking & printhead carriage height adjustment
2. Automatic printhead wiping mechanism & crash-sensing mechanism for carriage
3. Large, true Flatbed design adapts a strong 6 zones sectional vacuum table to keep media stationary on a flat surface to achieve accurate registration, heavy duty chassis ensures many years durable time. Enabling to hold heavy materials virtually up to 120mm in thickness; black table with high absorbance to reduce UV reflection to eyes.
4.Print directly onto a variety of rigid or sheet-cut flexible materials like vinyl, leather, glass, wood, ceram, acry and more.
5. Advanced and efficient integration Technology UV curable system, provides eco-friendly print condition. One or two UV lambs can be used while printing according to different material for suitable cured result.
6. Negative pressure ink supply system control CMYK colors and white colors separately and built-in temperature sensor & heater type P.H keeps fluent and continuous print, no need automatic nozzle clearing during printing or for standby, lots of UV ink saved every year
7. imaging technology for droplet of 14PL or 42PL,max resolution reaches 1440dpi
8. Basic 4 colors, 6colors white and varnish are available. White options of substrate, cover white, fill white and spot white achieve wonderful white applications.
9. Clear top coating varnish as a separate application is used to increase outdoor life, avoid scratch and add & reduce gloss.
| General info | Model | Docan M8 |
| Print technology | Drop-on-demand Piezo Electric | |
| Working platform | Vacuum or up-down wheels table | |
| Printhead type | KM1024-14PL | |
| Printhead No. | 4/5/6/7/8/10/12/15/16 | |
| Printhead control | Print head temperature & voltage are adjustable by software | |
| Printing size | 2.5*1.8m | |
| Media thickness | 1-100mm | |
| Ink reservoir | Refillable on the fly while printing/1000ml | |
| loating mode | Resto/Servo | |
| Drying system | UV lamp | |
| RIP software | Photoprint/ONYX/Caldera | |
| File format | TIFF, JPEG, Postscript 3, EPS and PDF | |
| Resolution | 360dpi*360dpi 360dpi*720dpi | |
| 720dpi*360dpi 720dpi*720dpi | ||
| 720dpi*1440dpi 1440dpi*1440dpi | ||
| Printing speed | In draft mode up than 58 sq.m ( 8 heads ) | |
| In standard mode up than 42 sq.m ( 8 heads ) | ||
| In high resolution mode up than 34 sq.m ( 8 heads ) | ||
| Ink | Ink type | UV curing ink |
| Printing color | CMYK, LC, LM, W,Varnish(4,5,6,7, double 4 colors) | |
| Printing Asistant System | Printing media | Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc. |
| Heating system | Standard(Front heater,rear heater,fan) | |
| Color retains | Outdoor:2 years indoor:7 years | |
| Color management | ICC international standard, adjustment curves, density adjustment | |
| Printer info | Power supply | AC220V-240V 50/60HZ (10%) >30A |
| Working conditions | Temperature 20-28°C | |
| Humidity 40% - 60% | ||
| Warranty period | One year | |
| Dimension | 4.63*2.56*1.47m | |
| Weight | 1870kg | |
| Packing details | Outside packing : Packed by solid wooden carton | |
| Inner packing: sealed with anti-rain & rust plastic bubble film | ||
