Specifications

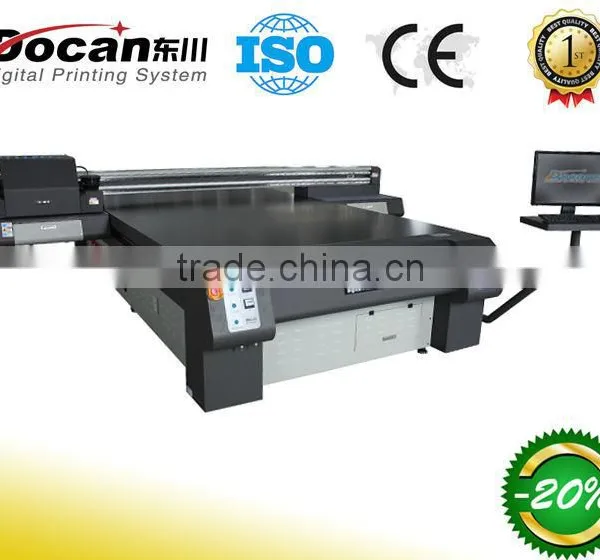

Docan M 10 digital uv printing machine1. Konica 512-14PL/42PL head
2. supplying high speed and resolution
3. good printing
digital uv printing machine
Features of Docan M 10 digital uv printing machine
1) perfect quality along with competitive Price
We are a manufacturer of UV flatbed printer and own factory in Shanghai city, China. We produce China best quality, and support customers with attractive and cometitive price.
2) high speed + high resolution
Konica 512-14PL/42PL head adopted. The printing speed can up to 60 sq.m/h by with max 1440 dpi resolution.
3) uv lamp drying System
Uv lamp installed on our uv printer machine guarantees your printing art dry immediately, so that improves your productivity.
4) more application by the uv flatbed printer
printed media: 1) all flat rigid substrate (glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, etc.) 2) flexible media (wall paper, glistening film, canvas, carpet, leather, paper sheets...) 3) material in roll
Used in: decoration industry, glass industry, sign industry, exhibition industry, leather textile printing industry, etc.
| Model | M10 |
| Catagory | M series |
| Print Technology | Drop-on-demand Piezo Electic |
| Nozzle Technology | Piezoelectric Inkjet |
| Print head type | KM-1024-14PL |
| Print head controls | Print head temperature and voltage are software adjustable |
| Ink Characteristics | UV curing ink |
| Ink Reservoir | Refillable on the fly while printing/ 1000ml |
| Drying system | UV lamp |
| Rip software | Photoprint/ Onyx/ Caldrea |
| Color Management | Icc Based Color, Curves Adjustment, Density Adjustment |
| File Format | Tiff, Jpeg, Postscript 3, Eps and Pdf |
| Power supply | 50/60hz 220v ( 10%) >30A |
| Operation Environment | Temperature 20°C to 28°C degrees |
| Humidity | 40% to 60% |
| Product Model | Docan M10 |
| Printing Size | 2. 05*3.2m |
| Media thickness | 1-100mm |
| Nozzle Number | 4/5/6/7/8/10/12/15/16pcs |
| Resolution | 360dpi*360dpi 360dpi*720dpi |
| 720dpi*360dpi 720dpi*720dpi | |
| 720dpi*1440dpi 1440dpi*1440dpi | |
| Printing speed | In Draft mode up than 58 sq.m/h (8 heads) |
| In Standard mode up than 42 sq.m/h ( 8 heads) | |
| In High resolution mode up than 34 sq.m/h (8 heads) | |
| In Super resolution mode up than 26 sq.m/h ( 8 heads) | |
| Colors | 4 colors(C M Y K) or 6 colors(C M Y K Lc Lm). White & varnish can be optional |
| Outdoor life | 2 years(use Docan ink) |
| Dimensions | 4.8*3.93*1.38m |
| Weight | 2160KG |
