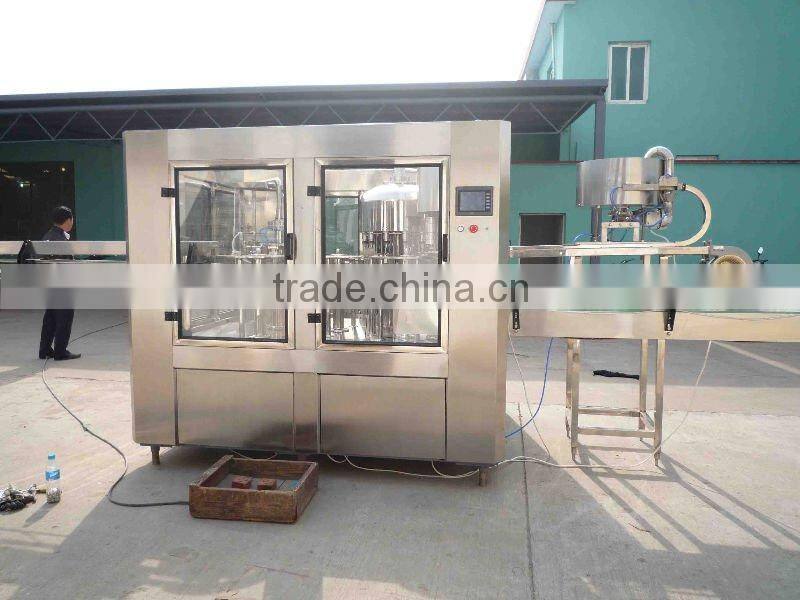

Bottled Liquid Filling Machinery Filling Mineral Water And Purified Water CE & ISO Approved Fully Automatic
Bottled Liquid Filling Machinery
Description:
3in1Unit Liquid Filling Machinery is a kind of professional filling machine integrator for no-gassy beverage. It is multifunctional which can be used for washing, filling and capping. It is a kind of advanced filling machine integrator which is innovated in following the process requirements of filling Pure water, Mineral water, wine and etc based on the importing and assimilating the foreign advanced technology. PRIMARY FEATURES
1. There are some features such as compact conformation, good shape, cozy operation, excellent automatic and poor labor intensity.
2. We adopt air conveyor bottle-feeding technology instead of the feeding screw and conveyer chain. Easily change the bottle change over parts.
3. It adopts the blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle is exchanged. According to the diameter of bottle, you could exchange corresponding nylon elements such as arc slipper guide, thumb wheel etc.
| Model | CGF16-12-6 |
| Production Capacity (500ml)(BPH) | 3500 |
| Filler Valves | 16 |
| Rinser Grippers | 12 |
| Capper Header | 6 |
| Suitable Bottle Shape | circular or square |
| Bottle Diameter (mm) | φ 50-φ 90 |
| Bottle Height(mm) | 150-310 |
| Compressed Air Pressure(MPa) | 0.3-0.7 |
| Washing Medium | aseptic water |
| Washing Water' s Pressure(MPa) | 0.3 |
| Total Power Supply(KW) | 6.6kw |
| Overall Dimensions(m) | 2.28x1.86x2.25 |
| Weight(kg) | 3200 |
- We are a manufacture.
- We have been certificated by the famous certification authority.
- We have been in beverage packing more than 16 years.
- We can help you to start a new company in beverage making.
- We make all of our customers be satisfied with the machine and our service.
- We will install the machine for you ,and train your employees to use the machine well.
- We will provide one year warranty with free spare parts.
Any question about machine or our factory ,contact with us please,sincere service for you .we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
Worldsfilling Product Catalog: ---- Filling Machine
1. Water treatment system (purified water and mineral water)
2. 3 in 1 monoblock purified & mineral water filling machine
3. 3 in 1 monoblock juice & tea filling machine
4. 3 in 1 monoblock carbonated drink filling machine
5. Monomer type filling machine – for water, CSD, juice, tea, oil, wine, beer, etc.
6. 3 to 5 gallon barrel water filling machine
7. Pop-top can filling machine
8. Finishing & packing system – labeler, printer, PE film shrinking packager, case packager, palletizer, pallet wrapper, etc.
9. PET bottles & caps making system – injection machine & bottle blowing machine
10. Beverage blending system – fruit juice & carbonated drinks
11. Other auxiliary equipment
If you need more any information based on fast feedback, Please do not
hesitate contact me!
