Help CenterPe Film Shrinking Packing Machine
Related Products
Specifications
Productivity: 8000BPH-18000BPHAdvanced technology
CE Certification

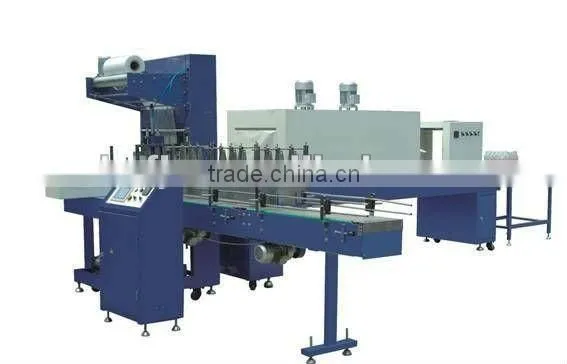

Pe Film Shrinking Packing Machine
1.CE certificate
2, Capacity: 2-5b/m
Wrapping dfferent case and bottle
Automatic shrinking wrap machinery / equipment
One.Technical parameters
·Equipment type: WD-150A
·Outline dimension of the equipment:L5050*W3300*H2100mm
·The largest dimension of the wrappage:L600*W400*H350mm
·Material of shrink film:PE
·Thickness of shrink film:0.03-0.15mm
·The highest temperature of the heat shrink furnace: 160-260.
Can adjust freewill.
·The maximum production per minute:0-12 pakage
·Equipment capacity: 20Kw
·Actual power consumption:15Kw/hour
·Pressure request:220V
·Equipment weight:1.2T
·Machine reuired air pressure of the compressor:0.6-0.8Mpa
Technical requirement and request:
1. Packing terms:

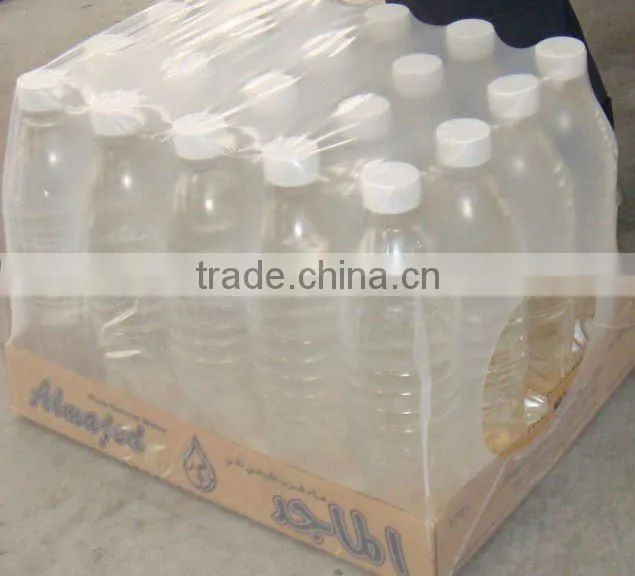

(1)350/500/550/600ML large package: 4*6, 4*5
Small package: 3*4, 3*5
Four packing terms.
(2)1L/1.5L/2L/2.5L large package:3*3,3*4
Small Package:2*2,2*3
Four packing terms.
2. For the pop can packing ,we advise packing with pallet,it will be steady.
3. Packing speed:8-15 bundles/minute
4. Satisfy the speed of the liquid filling machine.
(1)350/500/550/600ML large package :4*6, 4*5, (12000-15000 bottles/hour)
Small package:2*3,2*2(3000-4000bottles/hour).
5. Material of packing:the wideth of PE heat shrink film (200-600mm),thickness(0.08-0.12mm)
