Specifications
*Model:420*Material:45Mn(plates),30CrMnTi(pin),20CrMnMo(bush),#10 steel(roller)
*Pitch:12.70mm
*Roller diameter:7.77mm

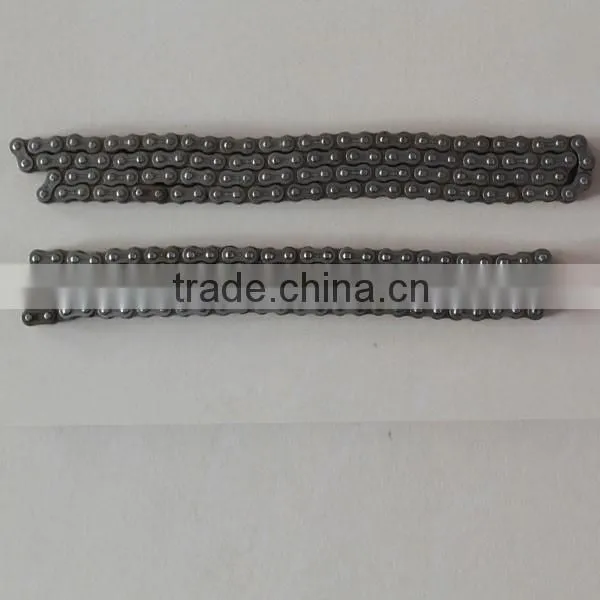

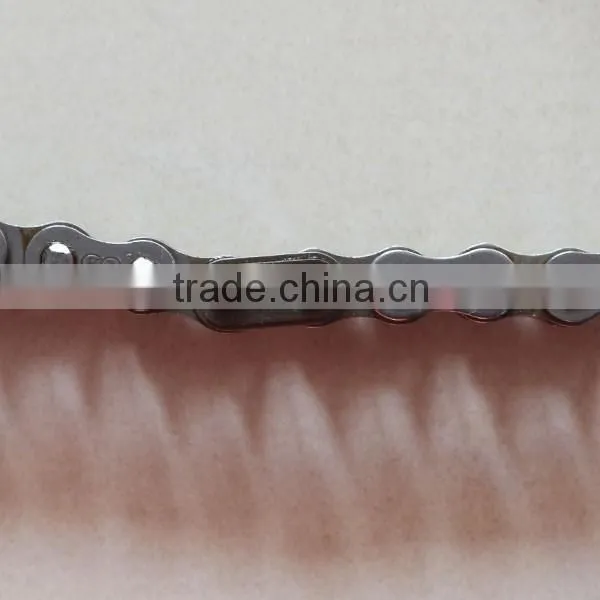

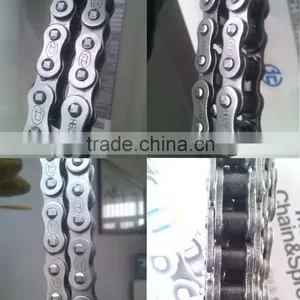

1,Name: Motor cycle chain

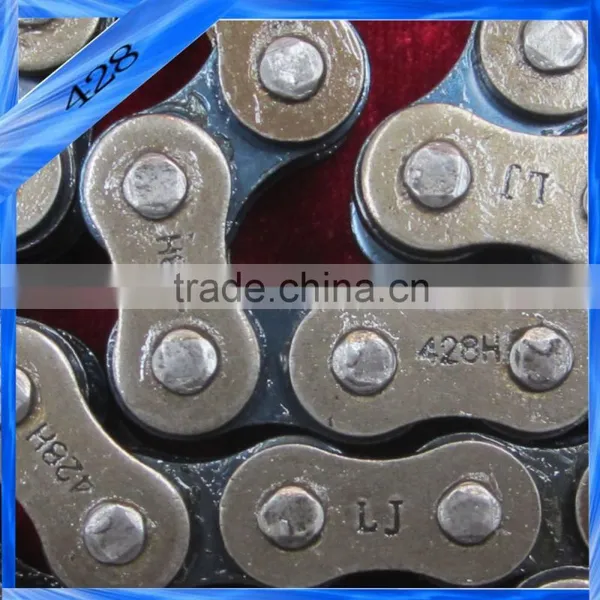

2,Mode: 420/428/428H/530/630

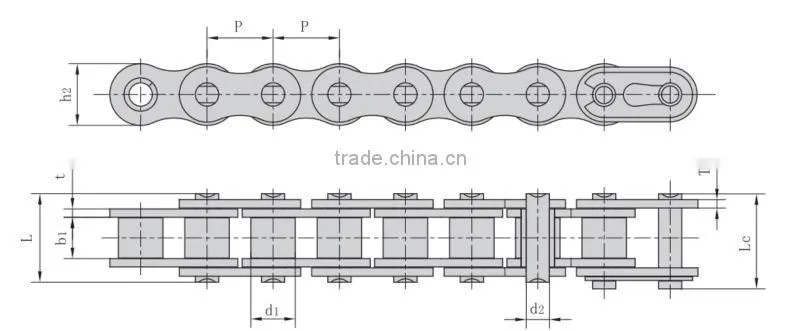

3,Parameters:
Changtai Chain No. |
Pitch |
Roller Diameter |
Width between inner plater |
Pin diameter |
Pin length |
Inner plate depth |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|
P |
d1 max |
b1 min |
d2 max |
L min |
Lc max |
h2 max |
Q min |
Qo |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
KN |
kg/m |
|
420 |
12.70 |
7.77 |
6.35 |
3.96 |
14.75 |
16.10 |
12.00 |
16.00 |
16.50 |
0.60 |
428 |
12.70 |
8.51 |
7.75 |
4.45 |
16.70 |
18.05 |
12.00 |
17.80 |
18.50 |
0.72 |
428H |
12.70 |
8.51 |
7.94 |
4.51 |
18.90 |
20.10 |
12.00 |
20.60 |
21.50 |
0.85 |
530 |
15.875 |
10.16 |
9.40 |
5.08 |
20.90 |
22.20 |
15.00 |
26.50 |
29.70 |
1.08 |
630 |
19.05 |
11.91 |
9.40 |
5.94 |
22.70 |
24.00 |
18.00 |
35.00 |
37.00 |
1.44 |

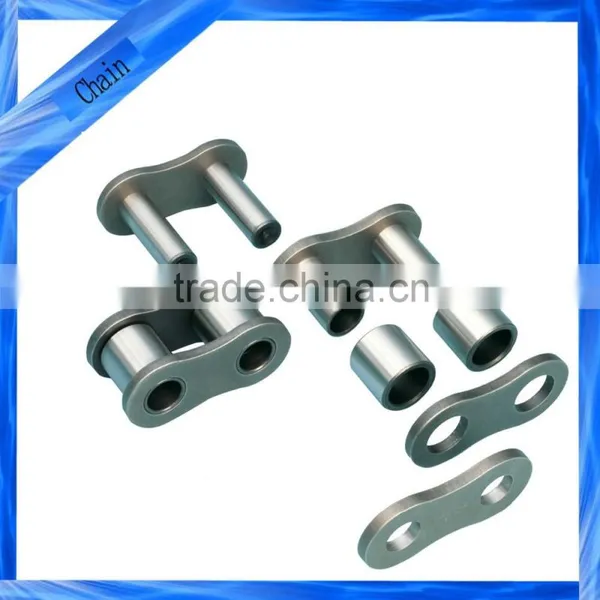

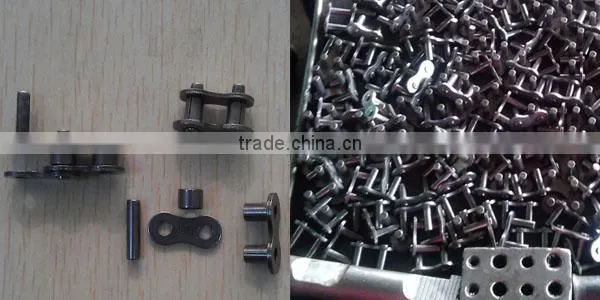

4,Material: 45Mn(Plate)+30CrMnTi(Pin)+20CrMnMo(Bush)+No.10 steel(Roller)

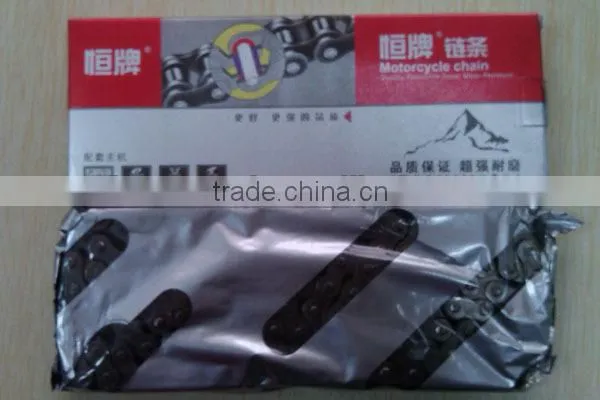

5,Packing:
Inner:plastic bag or small carton
Outer:30 bags/Carton
25 small catons/carton(size:43X22X12.5<cm>)

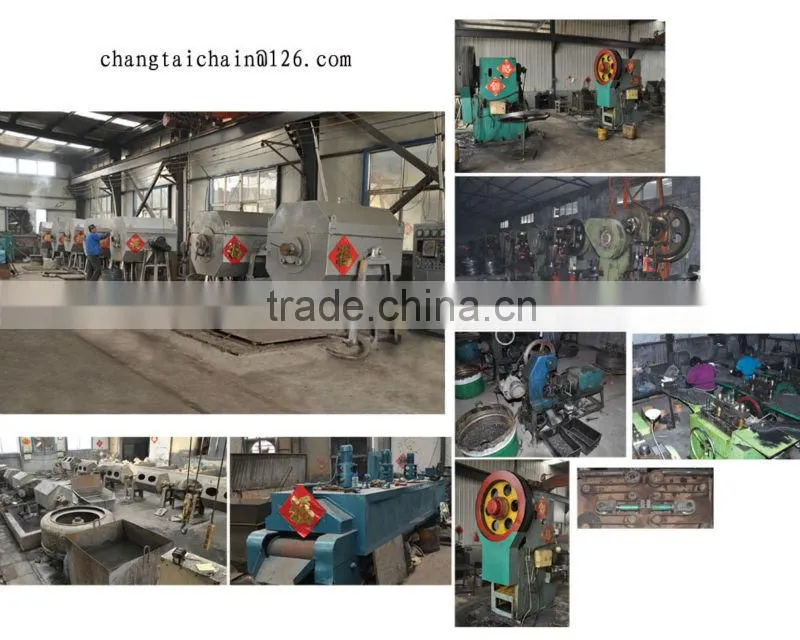

6,Factory:
Wulian Changtai Machinery Manufacturing Co.,Ltd is a production company which professional committed to highclass chain.We were founded in 1998, our factory has a floor area of 16800 square meters and located in RIZHAO CITY SHANGDONG PROVINCE.Our main products are motorcycle chain,agricultural chain,machinery chain and so on.
8,Contact:
