heavy duty warehouse storage rack for sale

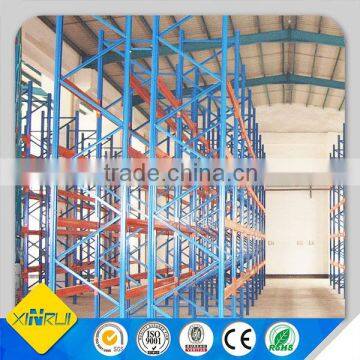

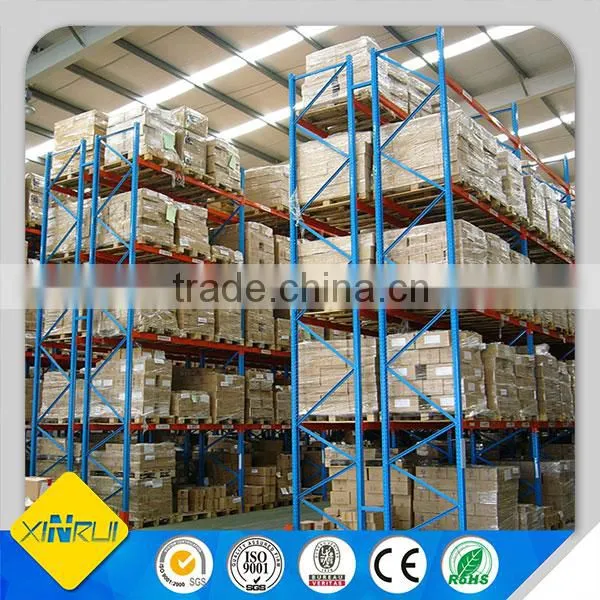

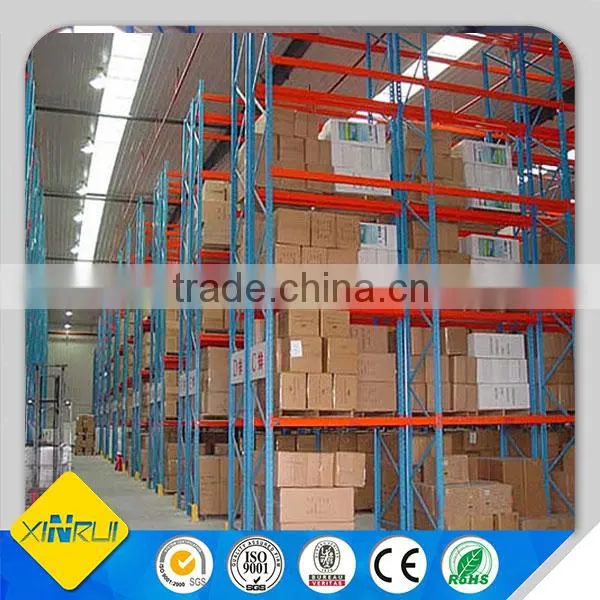

Selective pallet rack is the best solution for warehouse where it is necessary to keep a wide variety of articles in pallets. It provides direct access to all pallets for 100% accessibility and good stock rotation. Pallets can be located, accessed and move individually providing rapid handling of palletized goods. It provides easy beam adjustment and accommodates variable pallet heights. Lower level pallets can be located on the floor for picking purposes, which reduces structure costs. Alternatively additional shelving beams can be added for lower level picking.
Advantages:
1, Direct access to all articles;
2, Flexibility in the height and depth of the loads;

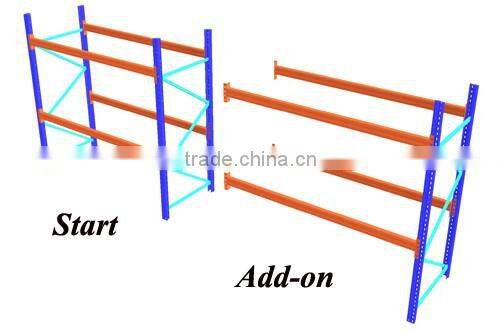

3, Extension is possible at any time;
4, Ideal for all types of forklifts;
5, Variable in accessories;
6, Levels are adjustable per 50mm in height.
Pallet rack is infinitely adjustable and offers a wide range of options and components to accommodate specialized load types.
|
Pallet Specification (L*D) |
Rack Specification (L*D) |
Rack height (H) |
Pallet |
800*1000 |
2700*900 |
3m-11m |
3 |
800*1200 |
2700*1100 |
3m-11m |
3 |
1000*1000 |
2300*900 |
3m-11m |
2 |
1000*1200 |
2300*1100 |
3m-11m |
2 |
1100*1000 |
2500*900 |
3m-11m |
2 |
1100*1100 |
2500*900 |
3m-11m |
2 |
1000*1200 |
2300*1100 |
3m-11m |
2 |
1200*1000 |
2700*900 |
3m-11m |
2 |
1200*1200 |
2700*1100 |
3m-11m |
2 |

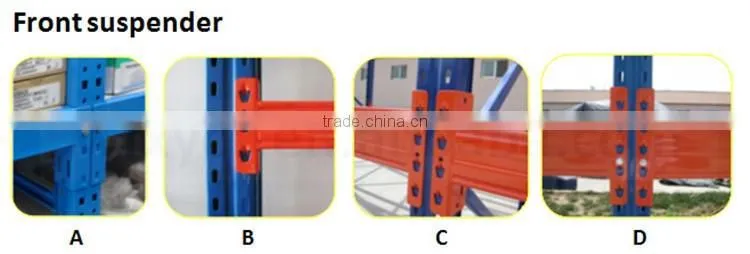

Box beams consist of two "front suspenders" and beam pole which is formed by two special made C-beam embraced together. This structure makes the thickness double, which is designed according to the steel structure design theory. The beams are available in a comprehensive range to cover most loading requirements.Beam section height available from 80-160mm.

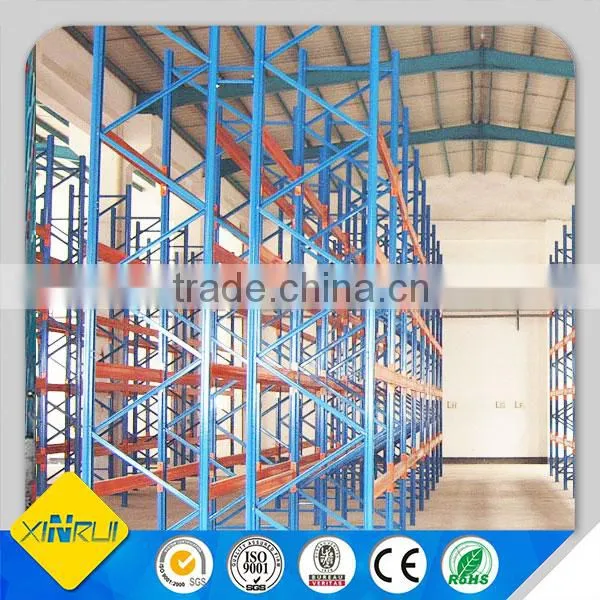

XINRUI Upright has optimum profile with 50mm or 75mm hole pitch for better loading capacity and sapce utilization.The uprights are made from cold-rolled steel and are very rigid.
These are then bolted from the stable frame using horizontal and diagonal bracing.
Defferent kinds of base plates ensure even distribution of load to floor unassembled.
Quotation Require
1. Rack size(W*D*H) or Pallet information: size, max load, height (cargo height and pallet height)
2. How many layers per rack(ground + beam level) and weight capacity(per layer)
3. Warehouse drawings
4. Aisle require or forklift information
