Manufacturer heavy duty storage warehouse pallet rack

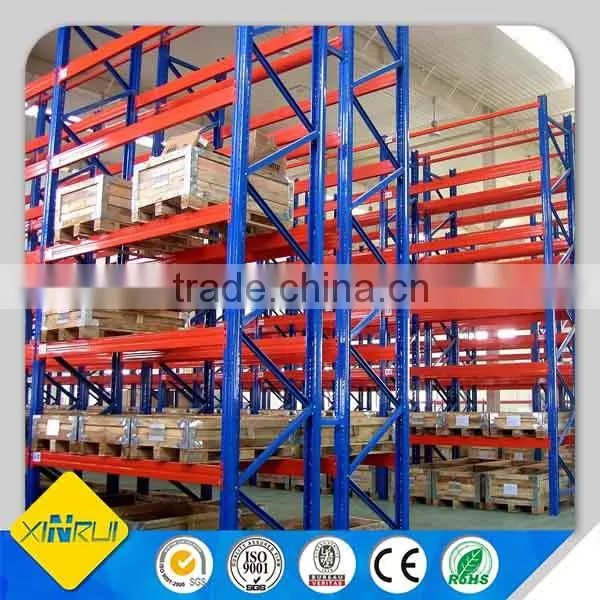

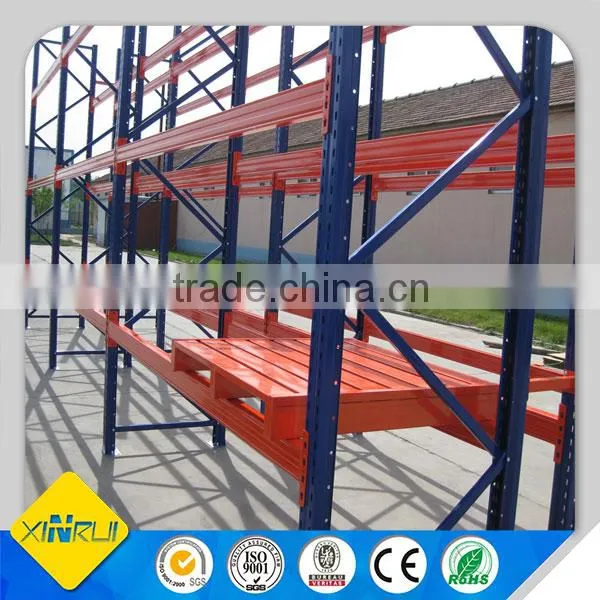

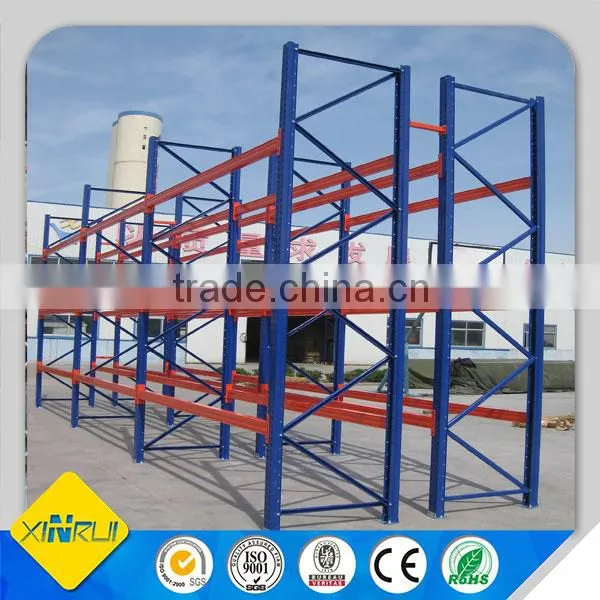

Selective pallet rack is the best solution for warehouse where it is necessary to keep a wide variety of articles in pallets.
It provides direct access to all pallets for 100% accessibility and good stock rotation.
Pallets can be located, accessed and move individually providing rapid handling of palletized goods.
It provides easy beam adjustment and accommodates variable pallet heights.
Lower level pallets can be located on the floor for picking purposes, which reduces structure costs. Alternatively additional shelving beams can be added for lower level picking.
|
Pallet Specification (L*D) |
Rack Specification (L*D) |
Rack height (H) |
Pallet |
800*1000 |
2700*900 |
3m-11m |
3 |
800*1200 |
2700*1100 |
3m-11m |
3 |
1000*1000 |
2300*900 |
3m-11m |
2 |
1000*1200 |
2300*1100 |
3m-11m |
2 |
1100*1000 |
2500*900 |
3m-11m |
2 |
1100*1100 |
2500*900 |
3m-11m |
2 |
1000*1200 |
2300*1100 |
3m-11m |
2 |
1200*1000 |
2700*900 |
3m-11m |
2 |
1200*1200 |
2700*1100 |
3m-11m |
2 |
RACK FEATURES:
1. Heights from 2500 mm to 11800 mm
2. Frame depth from 800 mm to 1200 mm
3. Rack capacity from 800 to 4000 Kg per level

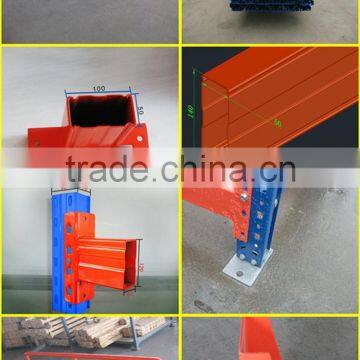

4. Uprights:60*80*1.8/2.0mm; 70*90/100*1.8*2.0mm; 80*120*2.0mm steel;
5. Box-beam:80/100/120/140/160*50*1.5mm
6. Connect bar: 200-300mm
7. Surface treatment:powder coating treatment.
Quotation Require
1. Rack size(W*D*H) or Pallet information: size, max load, height (cargo height and pallet height)
2. How many layers per rack(ground + beam level) and weight capacity(per layer)
3. Warehouse drawings
4. Aisle require or forklift information
1. Q: Are you a factory or trading company?
A: Factory, which was established in 2005.
Specialized in providing expert service, including design, manufacture, installation & maintenance for the logistic industries,warehouse equipments and sheet metal products.
2. Q: What is the term of payment?
A: T/T,L/C,Western Union, MoneyGram are available.
As usual, pre-paid full payment or 30% deposit then pay the balance before delivery.
3. Q: What is your delivery time?
A: It depends on the order quantity and racking types.
Generally, within 20 work days for ordinary order quant after receiving the deposit.
4. Q: Which port will be used as loading port?
A: Qingdao port, the closest port to us, is recommended strongly as loading port.
5. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. Every step will be send to you in time.
