Specifications

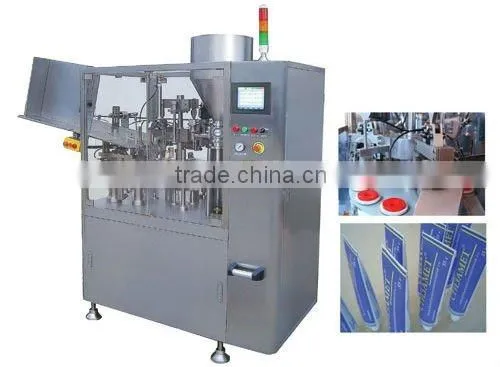

It can perform the filling for ointment,cream jellies or viscosity material,sealing or tail folding
Characters:
1,With 12 stations and matching with manipulator,the machine is able to meet different type of tail folding,sealing requirements of plumbum tube,ALUtube,plastic tube and laminated tubes.It is a multi-purpose machine.
2,Tube feeding,eye marking,tube interior cleaning (optional).material filling,sesling (tail folding),batch number printing,finished products discharging can be performed automatically (the whole procedure).
3,Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4,According to the different length of the tube,height of tube chamber can be adjusted easily by motor. With exernal reversal feeding system,makes tube charging more convenient and tidy.
5,The mechanical linkage photo sensor precision tolerrance is less than 0.2mm.The chromatic aberration scope between tube and eye mark is reduced.
6,Photo-electronic,electric, pneumatic integrative control is applied with the machine.No tube,no filling .It gives an alarm when low pressure occurs.The machine stops automatically if tube error or open the safety door.
7,Three-layer jacket instant heater with inside air heating,It won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
Main Technical Parameters :
| Tube Material | Plastic,Laminated tube,AUL tube and plumbum tube |
| Filling range | 5ml-250ml/PCS(Adjustable) |
| Filling accurcay | ≤±1% |
| Producing speed | 40 PCS/min |
| Diameter of flexble tube | 10-5mm |
| Length of flexble tuble | 220mm (Max) |
| Power supply | 380v/220v(Choice) |
| Working pressure | 0.55-0.65Mpa |
| Suisted Electric Machine | 1.1kw |
| Heat seal power | 3.0kw |
| Overall Dimension | 2000(L)×950(W)×1900(H)mm |
| Machine weight | 850kg |
filling and sealing machine
