GF-B Full-Auto Dry Compound Machine1.High speed

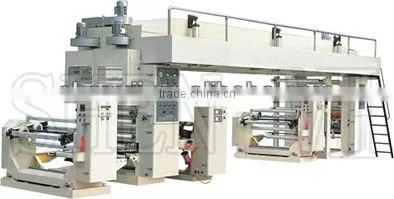

GF-B Full-Auto Dry Compound Machine
Performance and Characteristics
1.Application:It is applied to BOPP,PET,CPP,PVCD,al-plated film,al-tissue as well as the compound film and paper with the same properties. Its mechanical speed is 70m/min.
2.Main transmission unit:The main transmission unit adopts alternating current frequency transforming vector to control the motor.The heat beat and rubber-plated mesh roller synchronsim adopt swing arms to control its tightness and looseness,which is characterized by assuring the tihgtness looseness of the films in the oven channels.
3.Feeder:Group 1and2 feeders adopt double workinstations to pre-start,auto discharging unit and pneumatic rectifier while the tension adopts auto tension unit,which is characterized by assuring the evenness of compound film's tension.
4.Rubber-plated unit:The mesh rollers control the scrapping and inking amount, The thickness of rubber can be adjusted freely through the ink scrappers. While the rubber roller adopts double air cylinder to higher the pressure, whereas the pressure can be adjusted freely. It is also equipped with rubber-plated film while stopping to lift automatically.
5.Construction of oven channel:The temperature in the oven channel through four-pace intelligent thermocontroller,equipped with inner cycling unit,The material-protecting rollerand the heat beat can rotate synchronically.
6.Compound heat beat and impression roller unit:Compound heat beat is heated through the hot oil to make the temperature of the heat beat evenly, saving electricity.The press roller adopts double air cylinder .While the pressure can be adjusted freely.Performances:Save electricity power.
7.Rolling unit:It adopts double workingstation to pre-start and auto rolling while the rolling adopts moment motor.
Main Technical Variables
Techinical Model |
GF-B11100 |
Leyers of complex |
2layer |
compounding width |
1100mm |
suitable diameter |
600mm |
Adjustable speed |
50-120m/min |
Maxi adjustable temp.of the oven |
80°C |
Maxi adjustable temp.of the heat beat |
70°C |
Tension's equivalent extension ration |
≤1/1000 |
Total power |
50KW |
Weight |
4500kg |
Overall dimensions (L×W×H) |
9000×1900×2600 |
compound machine,dry compound machine,pvc compound machine
