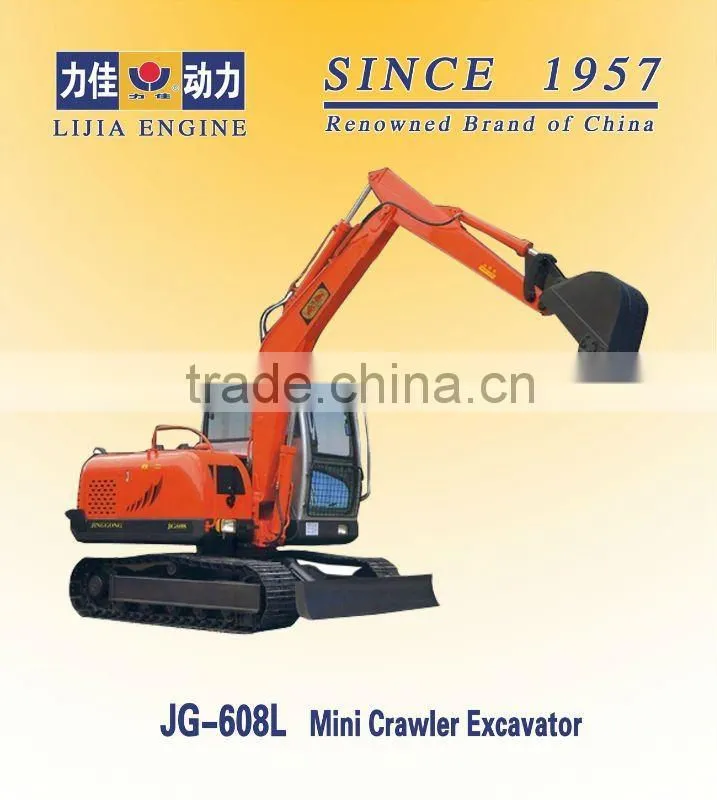

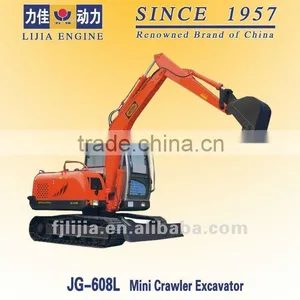

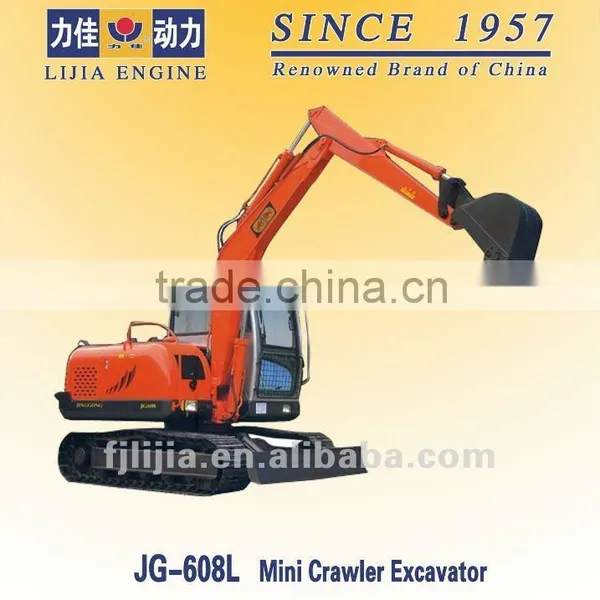

Factory Direct! JG608L 52KW 6ton Crawler Excavator

Name: Factory Direct! JG608L 52KW 6ton Crawler Excavator
Brand: JINGGONG
SKU: 111289623
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

JINGGONG

Model Number:

JG608L

Fujian Lijia Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name JINGGONG

Model Number JG608L

Condition New

Moving Type Crawler Excavator

Bucket capacity 0.3m3

Maximum Digging Height 5400mm

Maximum Digging Depth 3580mm

Machine Weight 6000Kg

Max Digging Radius 6000mm

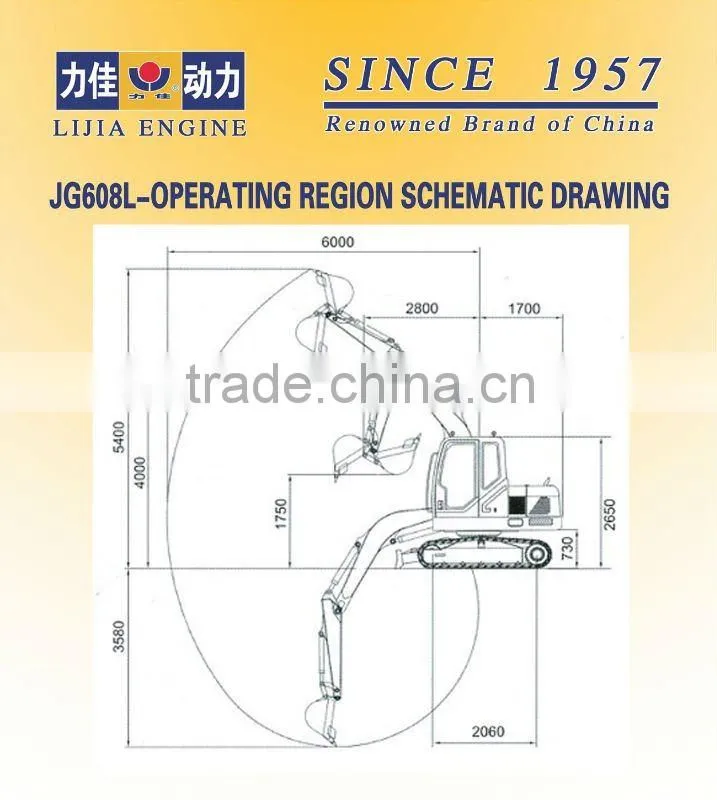

RANGE OF OPERATION
Boom length	3030mm
Arm length	1860mm
Max digging reach	6000mm
Max digging depth	3580mm
Max digging force	45KN
Max digging height	5400mm
Max dumping height	4000mm
Min platform tail turning radius	1700mm
DIMENSIONS
Machine height	2550mm
Width of platform	2000mm
Distance from the arm to the rotate machine	3600mm
With of the crawler	400mm
Track	2060mm
(Longwidthheight) travel position	5200mm2100mm 2650mm
Ground clearance of counter weight	730mm
Minmum ground clearance	360mm

TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	6000kg
Engine model	SL4105ABK
Hydraulic system working pressure	19.5Mpa
Nominal capacity	52kw
Rate of travel speed	2.5KM/H
Max hauling force	60KN

Grade Climbing ability	30°
Full circle swinging time	5.5s
Volume of bucket	0.2-0.3m3
Revolution overdrive pressure	11Mpa
Fqt fuel quantity	4≥L/H
Capacity of the fuel tank	130L
Capacity of the hydraulic tank	110L
