Automatic 4 Colors Corrugated Flexo Printer Slotter Die Cutter Stacker Machine/Carton Box Making Machine Prices(CLC-Q2)

FOB Price

USD $180,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port GUANGZHOU OR SHENZHEN
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:

Automactic Carton Box Printing Machine

Product Description

CLC-Q2-0920/1224/1424-4SD China Top Sale Automatic Flexo Printer Slotter Die-cutter & Auto Hydraulic Stacker, Corrugated Carton Box Making Machines, Case Maker, from GUANGZHOU CLC PACKAGING&CARTON MACHINERY CO., LTD, Exported to Asia (Malaysia, Thailand), Middle East (Jordan, Saudi Arabia), Russia, Africa (South Africa, Mali, Guinea), South America, Mexico, USA & etc...

Product Description

♦ Function

Automatic Flexo Printer Slotter Die-cutter With Stacker is used to make complete corrugated cartons automatcally, this machine can finish Feeding, Printing, Slotting or Die-cutting,stacking at one time, this machine can greatly improve the working efficiency, reduce cardboard wastage, labor cost, and increase the benefits of manufacturers.

♦ Features

1. The machine adopted touch screen at each unit of machine that could be adjusted automatically . It will cut lots of time while operating. Each unit is inter-connected by PLC, and date setting in touch screen is able to order the specific action. Easy-view and conveniently adjustable is available.

2. 250 sheets per minute when runs at the top speed. It could be efficient to produce one hundred thousand pieces of carton of daily productivity.

3. It can connect with Auto Pre-Feeder Equipment or Auto Strapping Machine, 3-5 workers for whole production line is available.

4. Adopts excellent materials and parts. All the rollers are chrome plated and harden treated; all the gears are ground by Germany High-precise gear grinding machine, the precision grade up to 6.5; all the bearings adopts JAPAN NSK/NTN/IKO.

5. All the motors & electric parts adopts international brands, such as HL, CPG, EMERSON, SCHNEIDER, OMRON and etc...

♦ Technical Parameters

Model Technical date (MM)				CLC-Q2-0920	CLC-Q2-1224	CLC-Q2-1628
Sheet Length (A)	Max. Size			2200	2400	2800
Sheet Length (A)	Min. Size			700	720	850
Sheet Width (F)	Continuous Feed			900	1200	1600
	Skip Feed			1200	1400	1800
	Min. Width			280	350	480
Max. Printing area (FxA)				900x2000	1160x2400	1600x2800
Slotting Space	Reverse knife		Max. size(B)	900	1100	1240
			Min. size(B)	250	260	320
			Max. size(C)	750	950	1350
			Min. size(C)	100	100	100
	Normal knife		Max. size	850	1040	1040
	Normal knife		Min. size	150	160	160
Slot Depth		Max. Size		250	320	450
Box Height (E)		Min. Size		110	110	160
Max. Die-cutting Area				850x1950	1150x2350	1530x2750
Working Speed		Top mechanical speed ( pcs/min.)		220	200	160
Working Speed		Standard Producing speed ( pcs/min.)		150-200	120-180	80-130
Thickness of Paperboard				2-11	2-11	2-11
Thickness of Printing plate				7.2	7.2	7.2

CLC-Q2 Serials Each Unit Discreption:

Feeding Unit

Mechanical Lead edge feeder
Integrated computer and Main control panel available in the feeding unit.
Upper vacuum dust removal system & dust brusher.
Feeding gaps and front stop are manual with self-lock. The side guider, back stop is motorized.
Units opening & closing is motorized and pneumatically locked. And can be auto ZERO.

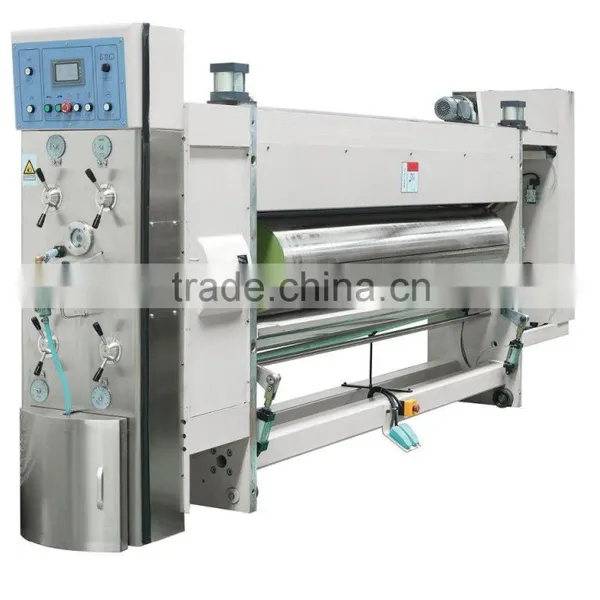

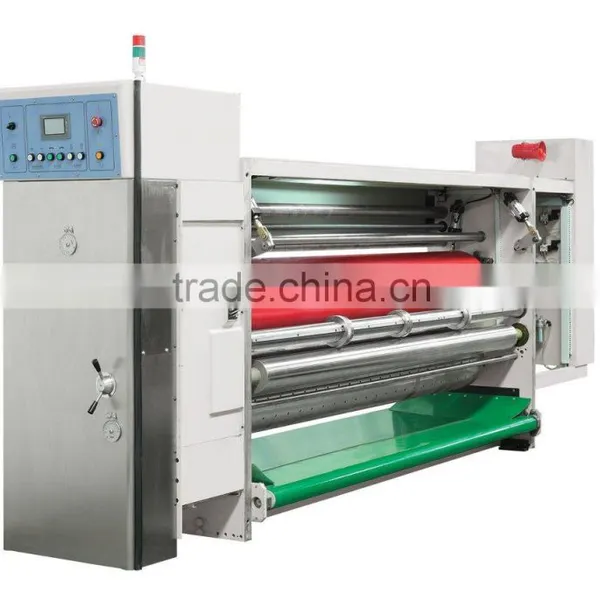

Printing Unit

Rubber Roller or Chambered doctor blade system is requested.
Roll-To-Roll transfer, The surface of lower pressure roller was treated with sand blasting.
Steel anilox roller or Ceramic anilox roller is requested.
Variable frequency drive control of PHASE, auto ZERO and auto RESET. Transversal position is motorized with digital display.
Inking Roller, Lower pressure Roller, Pull Roll is manual adjusted by self-locking.
Brake function is available when machine separating.

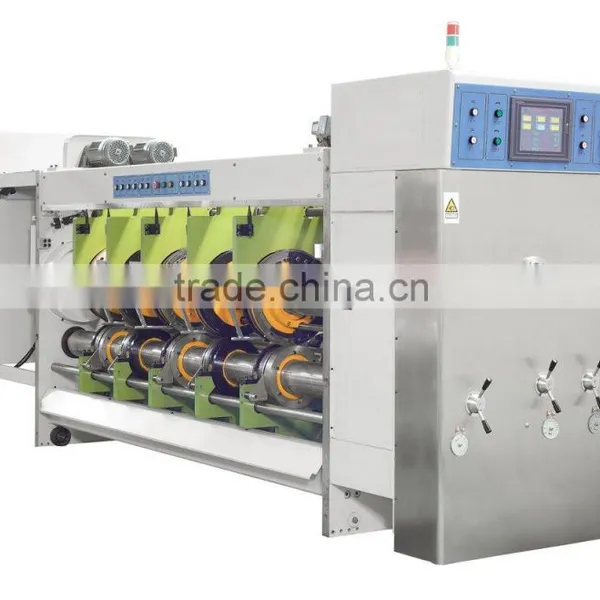

Slotting Unit

Six shaft transfer: Pre-creaser- Creaser- Slotter, The shafts were precisely dual-ground.
Single–Shaft slotting is adopted, with precise alignment of front and back knife.
Transversal position, Box height and PHASE are motorized with digital display on the central control screen.
Feeding gaps is manual adjusted with self-lock.
Auto ZERO is available.
Order management is available, it can save 999 orders.

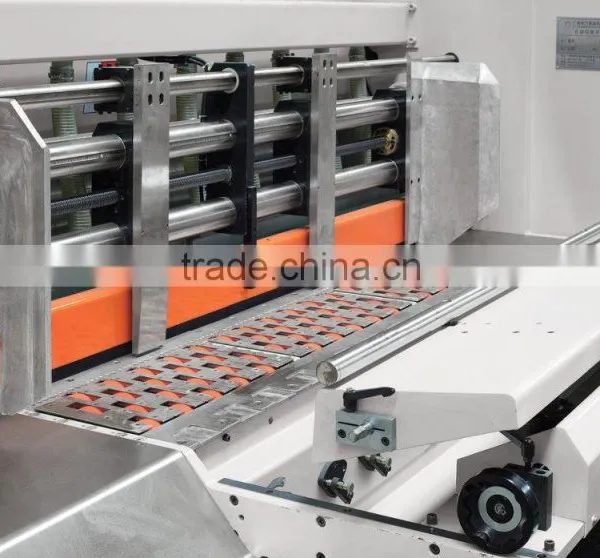

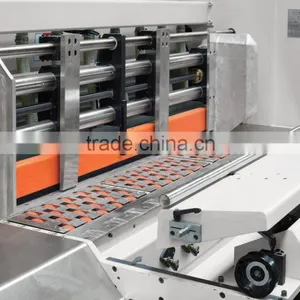

Die cutting unit

Shaft-head was treated with lock structure, not welding, given strong capacity of bearing pressure.
Hardened steel cover with pneumatic-lock cylinder set at upper roller can hence durability of using.
Mechanical differential structure is applied for the adjustment of transverse register. The adjustment range is ±30mm.
Adopts mechanical line speed compensating system, which min. the error of die cutting.
PHASE, Transversal position is motorized with digital display and feeding gaps are manual adjusted with self lock.
The gap of die cutting cylinder is motorized with digital display.

§ Following items can be Featured as customers requests:

√ Back Kick Feeder

√ Ceramic anilox roller

Packaging & Shipping

♦ Packaging:

The machine will be saperated in to each unit, and each unit will be packed independently with iron base, cardboard, and bopp film, and will be fixed well inthe container.

♦ Shipping:

A good & fast shipping company will choose by us to make sure less troubles during delivery, or customer can indicated which shipping company he prefer.

Our Services

♦ Before Sales Service:

1. We will study and reply your Inquiries, Email or Messages within 24hours; Will provided you with pressional suggestions.

2. Will guide you to visit some of our customer's factory to checking our machine working conditions.

3. Will meeting with Both Electric and Mechnical Engineer for professional expleination of our machines, any questions will be answered by them.

4. Customer factory reference is avilable if we have customer in your region.

♦ After Place Order:

1. Will offer fundation drawing, and other necessary documents once received the deposit from customer.

2. Will follow with manufacturing day by day, and send your machine pictures during assemble regularly.

♦ Delivery the machine:

1. Will delivery the machine on time, and choose the good shipping company to avoid unnecessary troubles.

2. Will supply all the documents for custom clearance, our company CLC Machinery have ability for exporting and importing.

3. Will follow with customer for custom clearance in case any support needed.

♦ After Delivery (After Sales Service):

1. Will dispatch our Engineer for Installation & Training for 15 days for Flexo printer machine.

2. Will delivery some Quickly Consumble Parts when delivery the machine.

3. If any problem happened during machine working, once received customer's email, will reply it within 1hour to check details problems, and will teach customer how to solve this problem within 24hours; if any spare parts or damaged parts needed for this machine, will send it within 24hours in we have in stock, if not will send it within 3days.

4. Quality Warranty: One years. Consumable parts excluded. CLC will provide its whole life service for our valuable customers.
