Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > 635nm Red 5mW Mini Laser Module EL63D05IG9

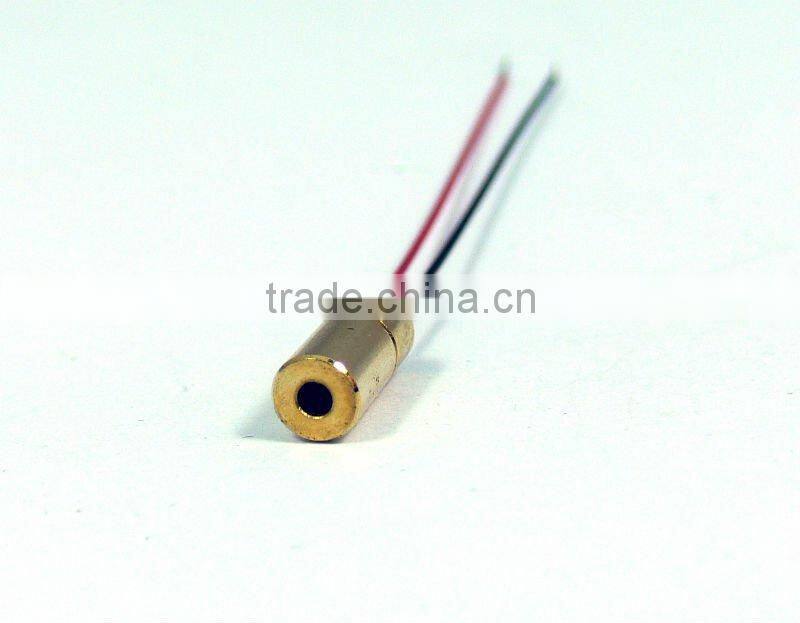

635nm Red 5mW Mini Laser Module EL63D05IG9
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Elite
Model Number:
EL63D05IG9
Payment & Shipping
Payment Methods:
Port of Shipment:
Shaanxi China (Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Red Laser Module 650nm or 635nm With Smallest Diameter 3.8mmUS$ 9.8 - 45MOQ: 100 Pieces -
Green Laser Gun SightNegotiableMOQ: 100 Pieces
-
Mini D-Series Laser Diode Module EL63D201G2NegotiableMOQ: 100 Pieces
-
China Manufacturer 5mw Laser ModuleNegotiableMOQ: 100 Pieces
-
Mini Laser Diode Module Compact SizeNegotiableMOQ: 100 Pieces
Place of Origin
Shaanxi, China
Brand Name
Elite
Model Number
EL63D05IG9
Type
Laser Diode
Max. Forward Voltage
3VDC
Max. Forward Current
30mA
Specifications
1.wide temp.operating2.low power consumption
3.small divergence
4.high reliability
5.APC control
Mini Laser Diode Modules
1) Dot Laser Diode Modules
2) Line Laser Diode Modules
3) Cross Laser Diode Modules
4) Dimensions: 4*8 mm 6*12mm
Applications:
1, Surveying Equipments
2, Laser Alignment and Positioning
3, Laser Aiming
4, Machine Vision
Specifications
Wavelength: 635 nm
L D Power: 5 mw
Operating Current: <30 mA
Operating Voltage: 3 V DC
Operating Temp.: -10°C ~ 50°C
Storage Temp.: -40°C ~ 80°C
Case Material: Brass or Aluminum
Life time: 8000H
Output Power: 1-3mW
Aperture: 2.5mm
Divergence: 0.5mrad
Beam Size: 3*6mm (@5M)
You can customize your own package
