Specifications
1. High quality2. High Stability
3. Mini laser module
4. Sample is ok
5.11 years experience
Mini Laser Diode Modules
1) Dot Laser Diode Modules
2) Line Laser Diode Modules
3) Cross Laser Diode Modules
Applications:
1, Surveying Equipments
2, Laser Alignment and Positioning
3, Laser Aiming
4, Machine Vision
Specifications
Wavelength: 650 nm
L D Power: 5 mw
Operating Current: <30 mA
Operating Voltage: 3 V DC
Operating Temp.: -10°C ~ 50°C
Storage Temp.: -40°C ~ 80°C
Case Material: Brass or Aluminum
Life time: 8000H
Output Power: 1-3mW
Aperture: 2.5mm
Divergence: 0.5mrad
Beam Size: 3*6mm (@5M)
Brand & Certifications:
Key Features
1, High quality industrial laser diode
2, Small dimension
3, Low cost
4, Low consumption
5, Long Life
Application:
1. Gun laser sight
2.Laser alignment
3.Bar scan
Specifications
Items |
Specifications |
||||||||
Spectral Range |
Violet |
Blue |
Red |
Infrared |
|||||
Wavelength |
405nm |
450nm |
635nm |
650nm |
780nm |
808nm |
830nm |
850nm |
980nm |
LD power(mW) |
5- 50 |
5-60 |
5~180 |
5~150 |
5~200 |
50~5000 |
5-100 |
5~100 |
20~5000 |
Operating Current |
25~5000mA |
||||||||
Input Voltage |
2.6~5.5VDC |
||||||||
Operating Temp. |
-10°C ~ 50°C |
||||||||
Storage Temp. |
-40°C ~ 80°C |
||||||||
Power Stability |
> 98% (@2.7 ~ 5.5VDC) |
||||||||
> 95% (@-10°C ~ 50°C) | |||||||||
MTTF |
>10000 Hrs. |
||||||||
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
||||||||
Case Material |
Brass or Aluminum |
||||||||
Beam Pattern |
Dot, Line ,Cross |
||||||||

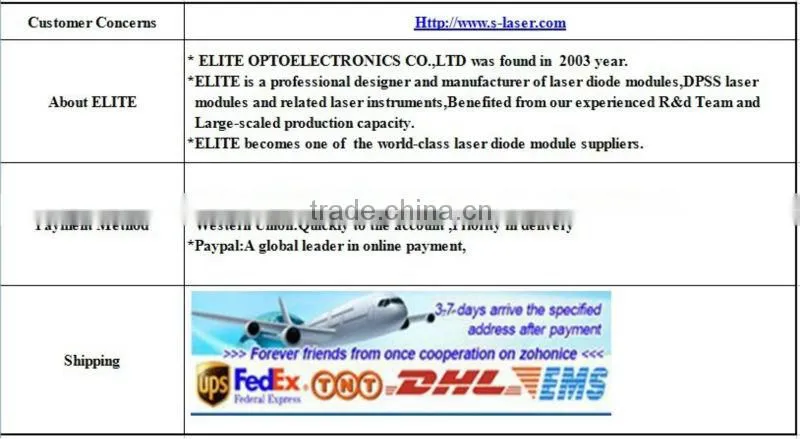

Customer Concerns:
The coming Trade Shows:
Service Flow:
mini laser module
