Specifications
DC Clamp Current Sensor1.Range:0.00A~10A (DC)
2.Accuracy:1%
3.Clamp:25*30mm
4.Power supply: 9VDC,output:0~2.5VDC

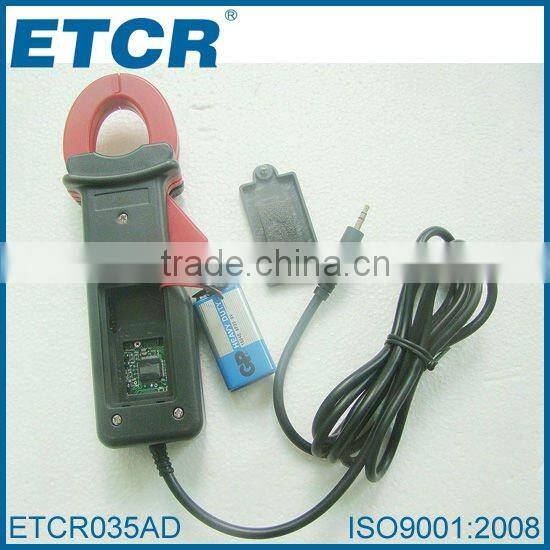

ETCR035AD Clamp AC/DC Current Sensor
Our buyers have stayed with us for 12 years
12 years of specialized meters
ISO Patent and CE certificate
OEM services available
More information, please kindly view our web site: /en/
Online store: /store/502192
. Introduction
ETCR035AD Clamp AC/DC Current Sensor is specially designed to test current and leakage of circuit below AC/DC600, with small size, high accuracy, good stability. It is widely applied in AC current leakage, current, power and energy measurement with high precision and small phase error of electricity, communications, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises, which can be connected to a variety of high precision digital multi-meter and data recorder.
. Technical Specification
Function |
AC/DC current detection |
Power Supply |
Mn-Zn 6F22 9V , continuously working for 10 hours |
Test model |
Clamp CT, Non contact measurement, non-exposure of meter of the jaw |
Dimension |
175mm×70mm×38mm |
Clamp Size |
30mm×35mm |
AC Frequency |
45~400Hz |
Range |
AC/DC 0.0A~600A |
Resolution |
0.1A |
Accuracy |
1%(23°C±3°C, below 70%RH) |
Output |
1mV/A |
Frequency Response |
10KHz(-3dB) |
Zero-Adjustment |
Yes |
Lead length |
2m |
Wire Position |
Detected wire should be put on the centre of the jaw |
Circuit Voltage |
Lower than AC600V |
Power on/off |
Push ON/OFF key |
Auto Power-off |
5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage |
Indicating the battery voltage is lower then 7.2V.Then the battery have to be changed |
Weight |
180g(including the battery) |
Consumption |
10mW |
Auto Power-off |
5 Minutes after power on, it will power off automatically to lower the power consumption |
Working environment |
-20°C~50°C;below 80%rh |
Storage environment |
-10°C~60°C; below 70%rh |
Max error refer to environment |
-10°C~0°C or 40°C~50°C, Error will increase max to 1%rdg |
Insulation strength |
AC2kV/rms (between core and shell) |
Safety rules |
IEC1010-1, IEC1010-2-032, Pollution degree 2,CAT Ⅲ(600V) |
Accessary |
Sensor: 1PC; Battery (6F22 9V): 1PC |

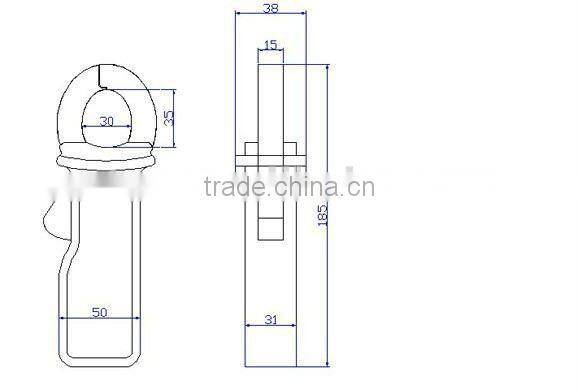

. Structure Drawing
