Clamp AC/DC current Sensor1.Range:DC 0.0A~2000A, AC 0.0A~1000A
2.Resolution:0.1A
3.Clamp size:68mm
ETCR068AD Clamp AC/DC current Sensor
ETCR068AD Clamp AC/DC current Sensor is designed for testing AC/DC current with voltage under 600V on-line. Adopt the latest CT technology and digital integrated technology. There is not any metallic conductor outside the clamps, non-contact test to ensure save. It is small in size; high accuracy can connect with multi-meter, oscilloscope, electric power quality analyzer, etc. Widely applied in electricity, communication, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises.
Function |
Measurement of AC current, phase, power energy, power, power factor |
Power supply |
Zn-Mn dry battery 6F22 9VDC(external power is allowed) |
Rated current |
15mA |
Test mode |
Clamp CT, noncontact measurement |
Clamp Size |
Φ68mm |
Range |
DC 0.0A~2000A; AC 0.0A~1000A |
Resolution |
0.1A AC/DC |
Signal output |
1mV/1A |
Accuracy |
±2.0%FS(50Hz/60Hz; 23°C±2°C, below 70%RH, keep the wire be in the center of clamp) |
Phase Error |
≤3°(AC50Hz/60Hz; 23°C±2°C) |
Zero clearing |
Press ZERO key can clear the data, eliminate the effect of geomagnetic field to the measure of AC current |
Output connection |
Standard connection: Red wire-positive output; Yellow wire-negative output. |
Output Wire Length |
2m |
Measured Wire Position |
Approximately in the geometric center of theclamp, the errors for deviating the center of the clamp increase 1.5%rdg. |
Frequency |
AC 45Hz~400Hz |
Voltage of circuit |
Circuit with the voltage below AC 600V |
Voltage of battery |
When the voltage of battery is below 7.2V, the LED will be lighted when the voltage is low, indicate to replace the battery. |
Dimension |
224mm×115mm×43mm |
Weight |
515g |
Working Environment |
-15°C~45°C;80%rh below |
Storage Environment |
-10°C~60°C;70%rh below |
Insulation Strength |
AC 3700V/rms. (between core and shell) |
Safety Rules |
IEC1010-1, IEC1010-2-032, Pollution degree 2, CATⅢ(600V) |
Accessory |
Sensor:1pc; battery(6F22 9V):1pc |

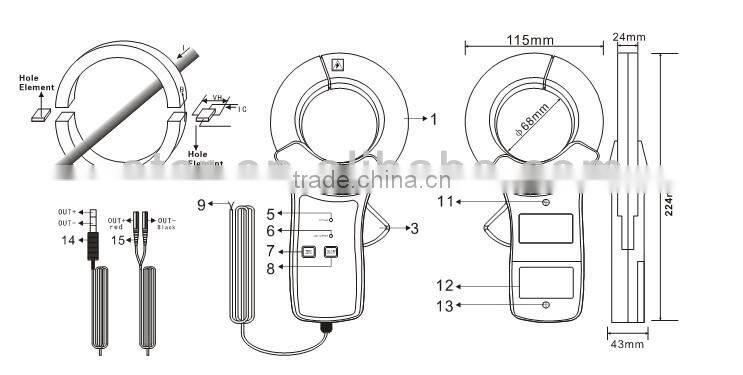

1. Clamp
2. Up cover
3. Trigger. (Open and close the clamp).
4.Indicate of positive input AC current
5.Power-on indication
6.Low voltage indication
7.ZERO clearing key
8.ON/OFF key, the switch of the power
9.Output wire(Red wire-positive signal output; Yellow-negative signal output)
10.Down cover.
11. Screws of up/down cover (3 screw, two of them are inside the cover)
12.Cover of battery
13.Screws of battery cover.
14.Output lead(Φ3.5 audio plug, match)
15.Output lead (probe of multi-meter, match)
