Laser module, 405nm-980nm mini laser module with APC for gun laser sight, laser alignment tools, and bar code scan instrument etc.
1.Elite Mini Laser Diode Module Description:
Elite mini laser diode module, small dimension with low power consumption, is particularly suitable for built-in miniature devices and tools, which could enable the laser tools and equipment miniaturized.
Mini laser diode module is mainly applied in gun laser sighting, bar code scanning and laser alignment tools etc.
Elite supply mini Compact laser module in red, green, infrared to suit into gun applications.
2.Elite Mini Laser Diode ModuleFeatures:
a.High quality
b.Mini size
c.Low power consumption
d.APC power control
e.Long life operation:>10,000hrs
f.Customized solutions for OEM applications
3.Elite Mini Laser Diode Module Specifications:
Model |
Wave Length |
Output Power |
Aperture |
Divergence
|
Beam Size |
Lens |

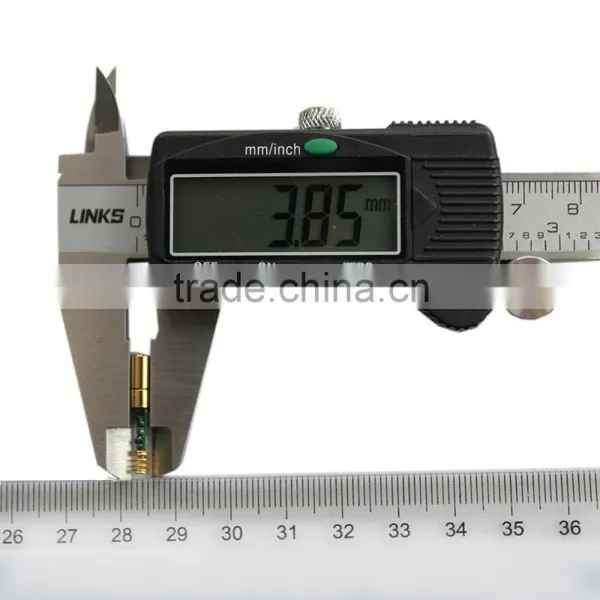

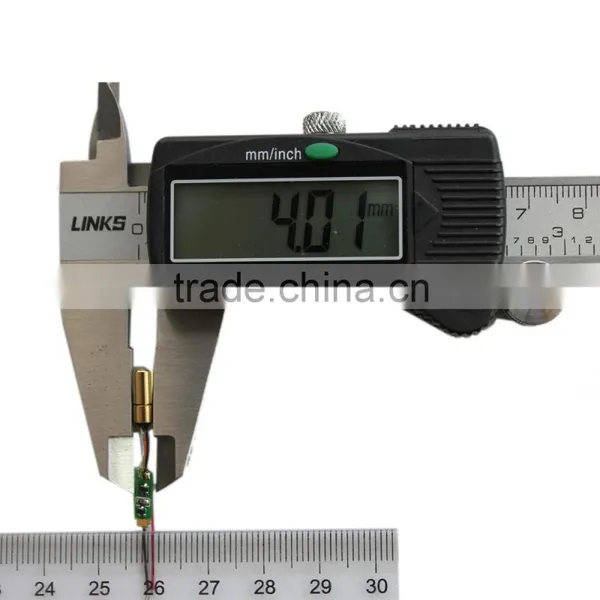

Dimension |
MN520-05FA |
520nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
MN520-05FB |
520nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN520-05FC |
520nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN520-10FA |
520nm |
<5.0mw |
Dia.1.8mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
MN520-10FB |
520nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN520-10FC |
520nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN635-05FA |
635nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN635-05FB |
635nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN635-05FC |
635nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN635-10FA |
635nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN635-10FB |
635nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN635-10FC |
635nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN650-05FA |
650nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN650-05FB |
650nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN650-05FC |
650nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN650-10FA |
650nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN650-10FB |
650nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN650-10FC |
650nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN850-05FA |
850nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN850-05FB |
850nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN850-05FC |
850nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
MN850-10FA |
850nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
MN850-10FB |
850nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
MN850-10FC |
850nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
Note: We can provide you best solutions if there is no model meet your requirement.
4.Elite Mini Laser Module Applications:
a.Laser alignment, aiming, positioning and pointing
b.Industrial instrument and equipment
c.Gun laser sight
d.Bar code scan
5. Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
9.Elite Factory:
10.Elite Production Process:
11.Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
