Home > Electrical & Electronics > Sensor > Pressure Sensor > ETCR010D Split Core High Accuracy DC Leakage Current Transducer (0mA-100mA) Electrical Instrument
ETCR010D Split Core High Accuracy DC Leakage Current Transducer (0mA-100mA) Electrical Instrument
US$ 44.85 - 62.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETCR
Model Number:
ETCR010D
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO CE ETCR1000C Non-contact Phase DetectorUS$ 52.8 - 100MOQ: 1 Piece -
CHINA ETCR1000D Large Caliber Non-contact Phase DetectorUS$ 71.87 - 123.33MOQ: 1 Piece
-
ETCR9100 H/L Voltage Clamp Meter Electrical MeterUS$ 286 - 465MOQ: 1 Piece
-
ETCR 030 High Accuracy Clamp AC Current Leakage Transducer Electrical MeterUS$ 33.87 - 48.39MOQ: 1 Piece
-
ETCR010 Split Core High Accuracy AC Leakage Current Transducer Instrument MeasurementUS$ 25.16 - 31.45MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ETCR
Model Number
ETCR010D
Usage
Consumption Sensor
Theory
Current Sensor
Output
Digital Sensor
Company Information

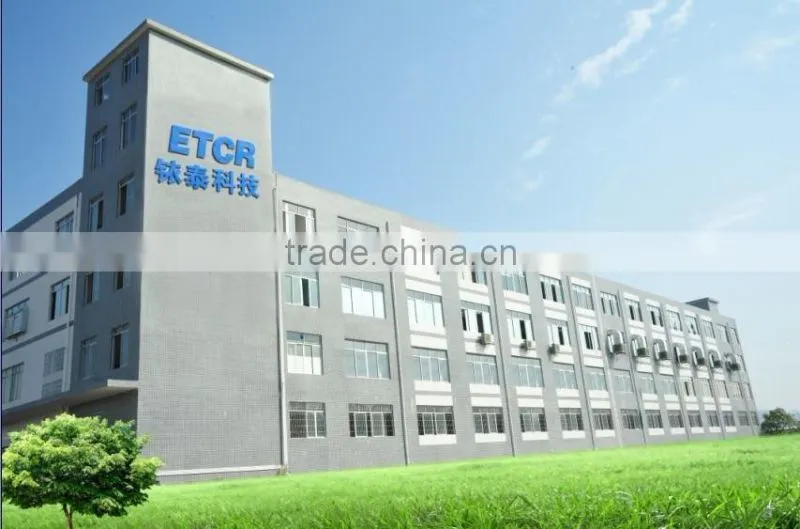

ETCR
A professional manufacturer of test and measure instrument.
We have our R&D department,top sales group,supply application services.
ETCR Help you work safer and quicker.
Product Description
Welcome to ETCR
Our buyers have stayed with us for 12 years
12 years of specialized meters
ISO Patent and CE certificate
OEM services available
More information, please kindly view our web site: /en/
Online store: /store/1119041
1.Introduction

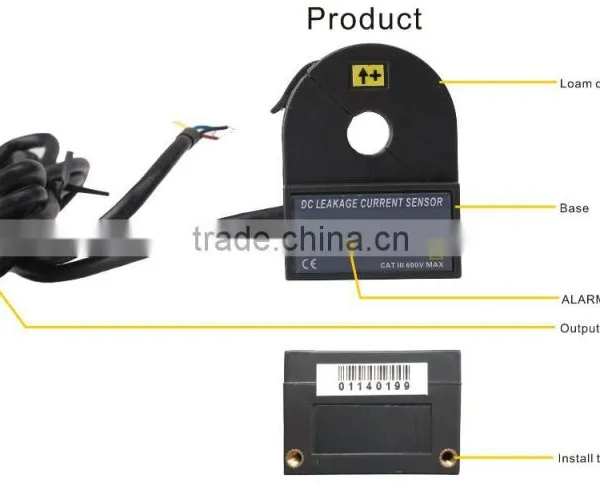

ETCR010D Split Type High Accuracy Leakage Current Sensor is used for measurement of high accuracy DC leakage current, low DC current. Adopt the latest CT technology, double shielding layer and split type design, portable, install on line, no need to disconnect the measured circuits, non-contact, safe and fast. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, harmonic analyzer, electric power quality analyzer, high precision digital multi-meter, etc. Widely applied in electricity, communication, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises.
2.Technical Specifications
Function |
Measurement of DC leakage current, low DC current |
Test mode |
Split Type CT |
Power supply |
9VDC±1VDC |
Power dissipation |
20mA max |
Clamp Size |
Φ10mm(available for line ≤10mm) |
Range |
0-100mA DC |
Resolution |
1mA AC |
Accuracy |
±3.0%FS(50/60Hz; 23°C±2°C,below 70%RH, keep the wire be in the center of hole) |
Coils Turn |
800:1(customize is available) |
Signal output |
25mV/1mA, |
Response speed |
2 times/sec |
Output interface |
Brown—positive power input; Yellow—terminal of alert control; Blue—anode signal output; black—GND(cathode power output and cathode signal output, can short circuit with shielding shell ) |
Output Wire Length |
2m |
Electric Field Interference |
3mA |
Measured Wire Position |
Approximately in the geometric center of the hole |
Voltage of circuit |
AC 600V |
Dimension |
53mm×42mm×28mm |
Weight |
125g |
Working Environment |
-20°C-45°C; below 80%rh |
Storage Environment |
-10°C-60°C; below 70%rh |
Insulation Strength |
AC 2kV/rms. (between core and shell) |
Safety Rules |
IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT Ⅲ(600V) |
Accessory |
Sensor :1pc |

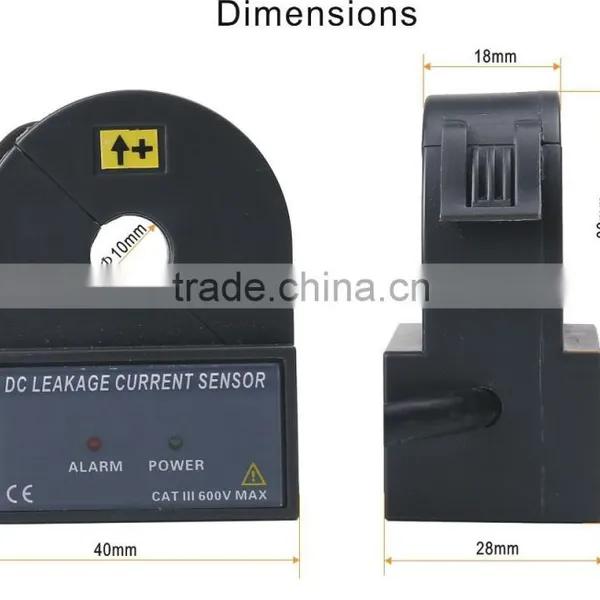

3.Dimension
Packaging & Shipping
Packing Case Size(L×W × H): 16×8×5(cm)
Weight: 0.5Kg
Express Available:
Our Services
All of our products have two years products warranty.
There will be professional responsible for after sale service.
We are developing international market
So every Customer's identity is our best encouragement.
